3.3 PTP Mode
Operation in PTP mode is controlled by the options keys. Enter PTP-only options keys
before deploying and configuring the RDL-3000 units. When a PTP-only options key is
activated, the RDL-3000 operation is restricted to a single point-to-point connection. A
separate range of RF power settings are provided for PTP operation.
The GUI and Telnet functions are identical for PTP and PMP operation. It is required to
configure one unit as the controller (PMP SC) and one unit as a remote (PMP SS). The
graphical user interface (GUI) and Telnet functions are identical for both PTP and PMP
operation.
Note: Refer to the RDL-3000 installation Guidelines for additional information about
installing and operating the RDL-3000 in PTP mode.

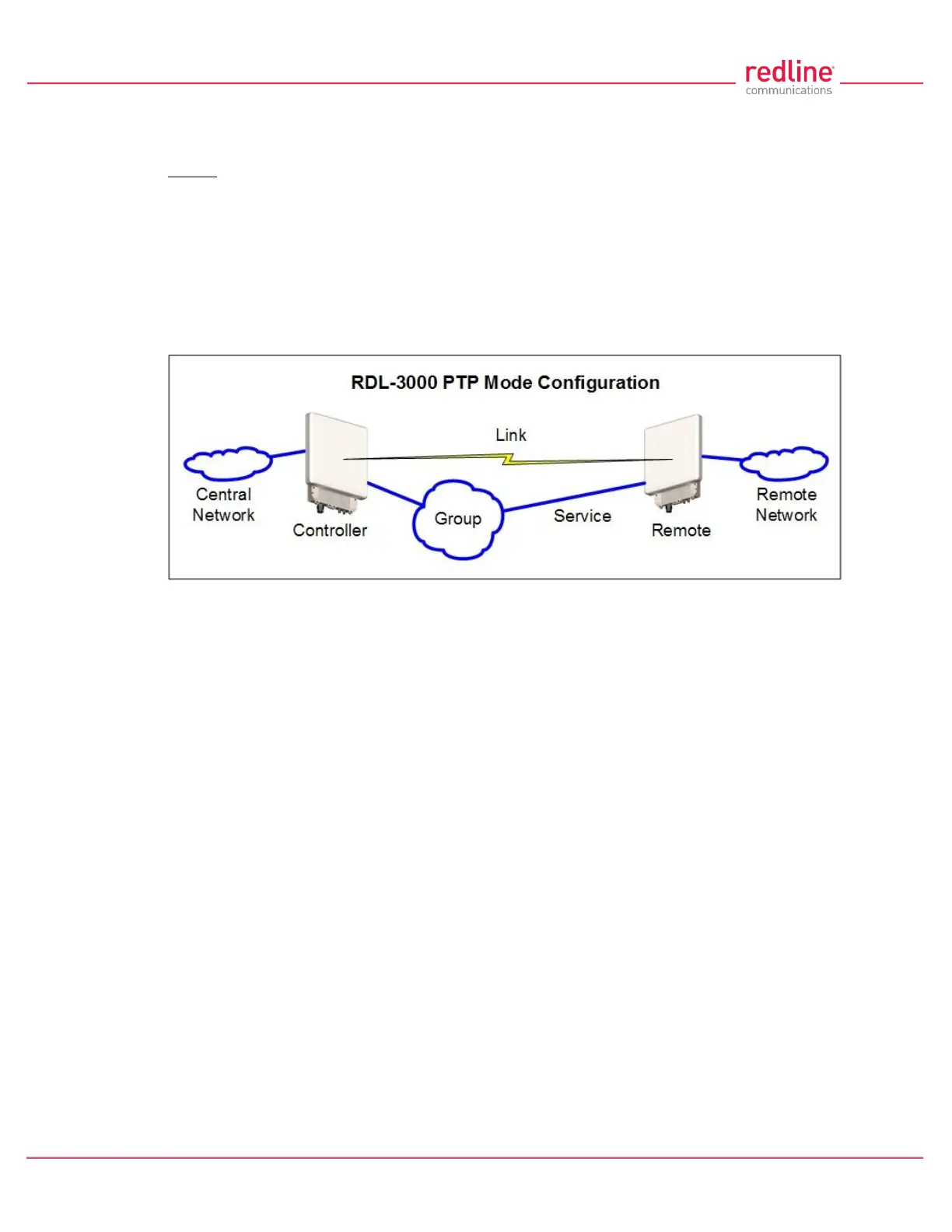

Fig. 23: PTP - RDL-3000 PTP Mode Configuration
