3.2.3 Setting Wireless Rates
The wireless bandwidth is shared between all subscribers in a sector. Use the following
settings to control traffic rates over the wireless interface.
Table 3: Web - Operation - Wireless Rates`
Select the Uncoded Burst Rate (UBR) for the
link to this subscriber. The RDL-3000 sets
the modulation and coding settings required
to provide the selected rate.
Downlink UBR
Uplink UBR
Adaptive modulation mode
Select the uplink and downlink Committed
Information Rates (CIR) and peak
Information Rates (PIR) rates for unicast*
traffic to/from this subscriber.
Downlink CIR / PIR
Uplink CIR / PIR
Set the rates for downlink multicast and
broadcast traffic belonging to this group.
Downlink Burst rate
Downlink CIR / PIR

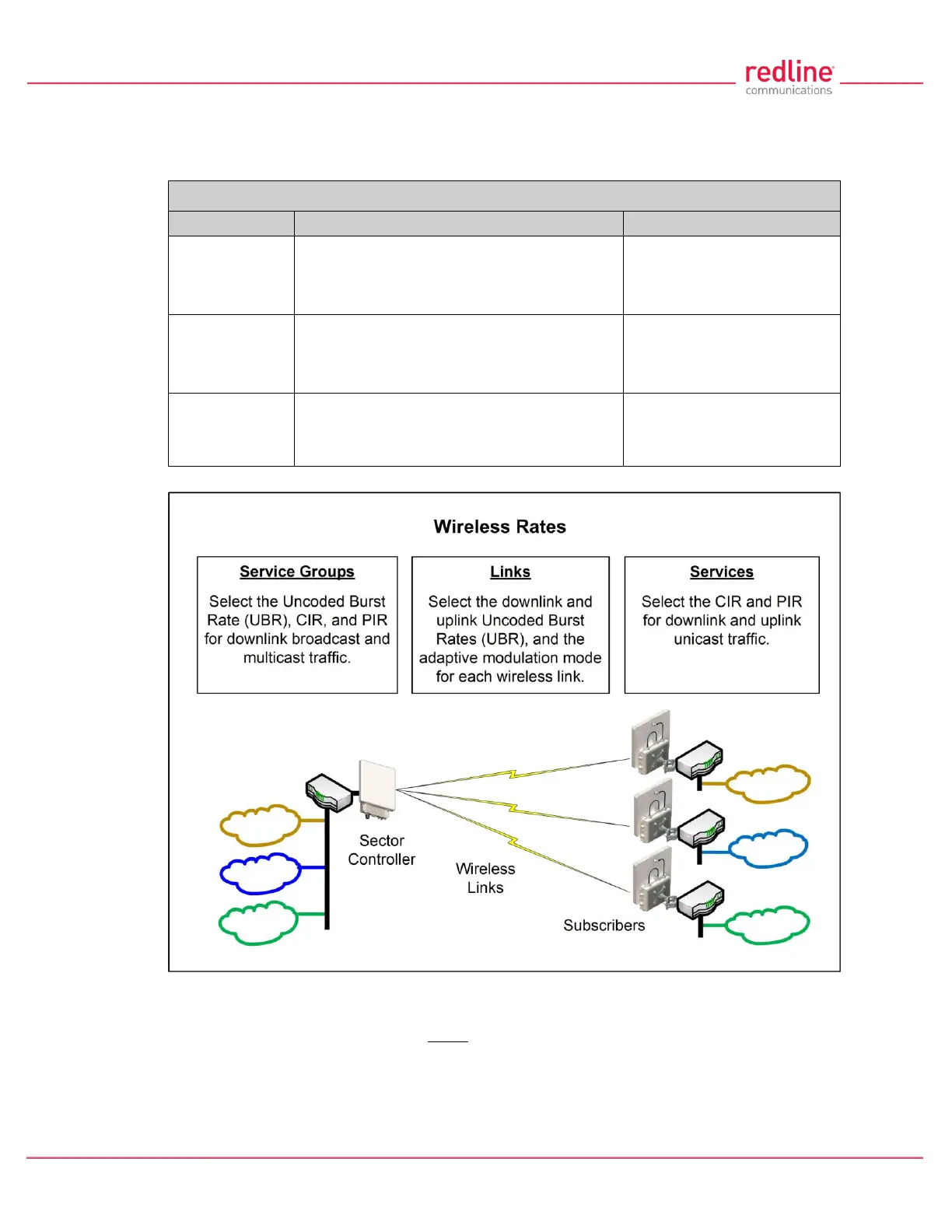

Fig. 12: PMP - Wireless Rates
*Unicast traffic with an unknown destination (all RDL-3000 units maintain a forwarding table) is
transmitted two modulation steps below the lowest rate currently in-use across all active
Services.
