RDL-3000 User Manual
70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 33 of 142 November 25, 2010
Strict VLAN Tagging

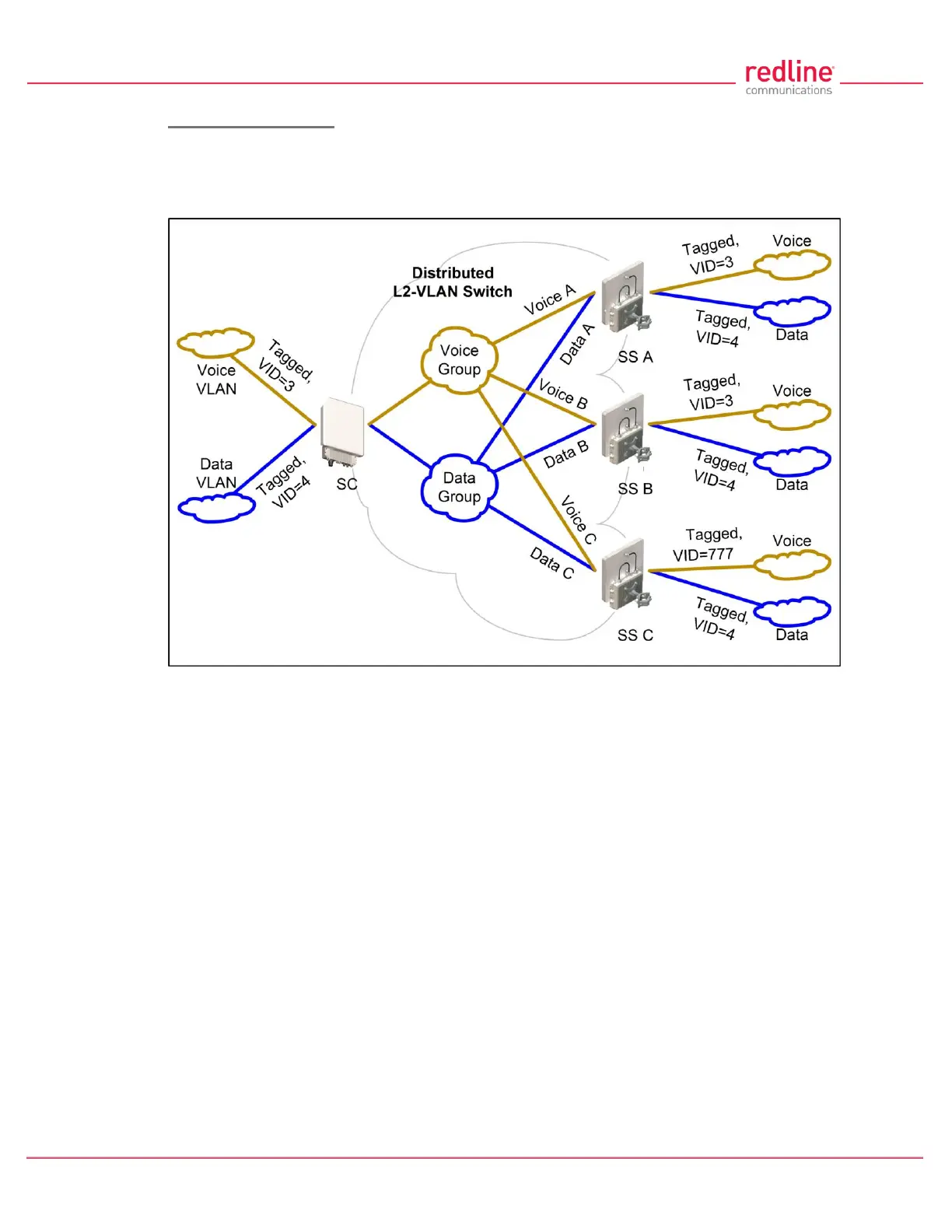

Fig. 18 displays an example of VLAN usage where only tagged traffic is allowed to pass
through the system. If a Subscriber port has no pass-through connection, or the Sector
Controller port has no pass-through group, then that port does not accept untagged
traffic or tags that are not explicitly configured.
Fig. 18: PMP - Operation - Strict VLAN Tagging
