4.4.3 Subscriber Links Summary Screen (SC Only)
Click Links Summary in the main menu (SC) to view the status of all wireless links. This
screen is available only on subscriber units.

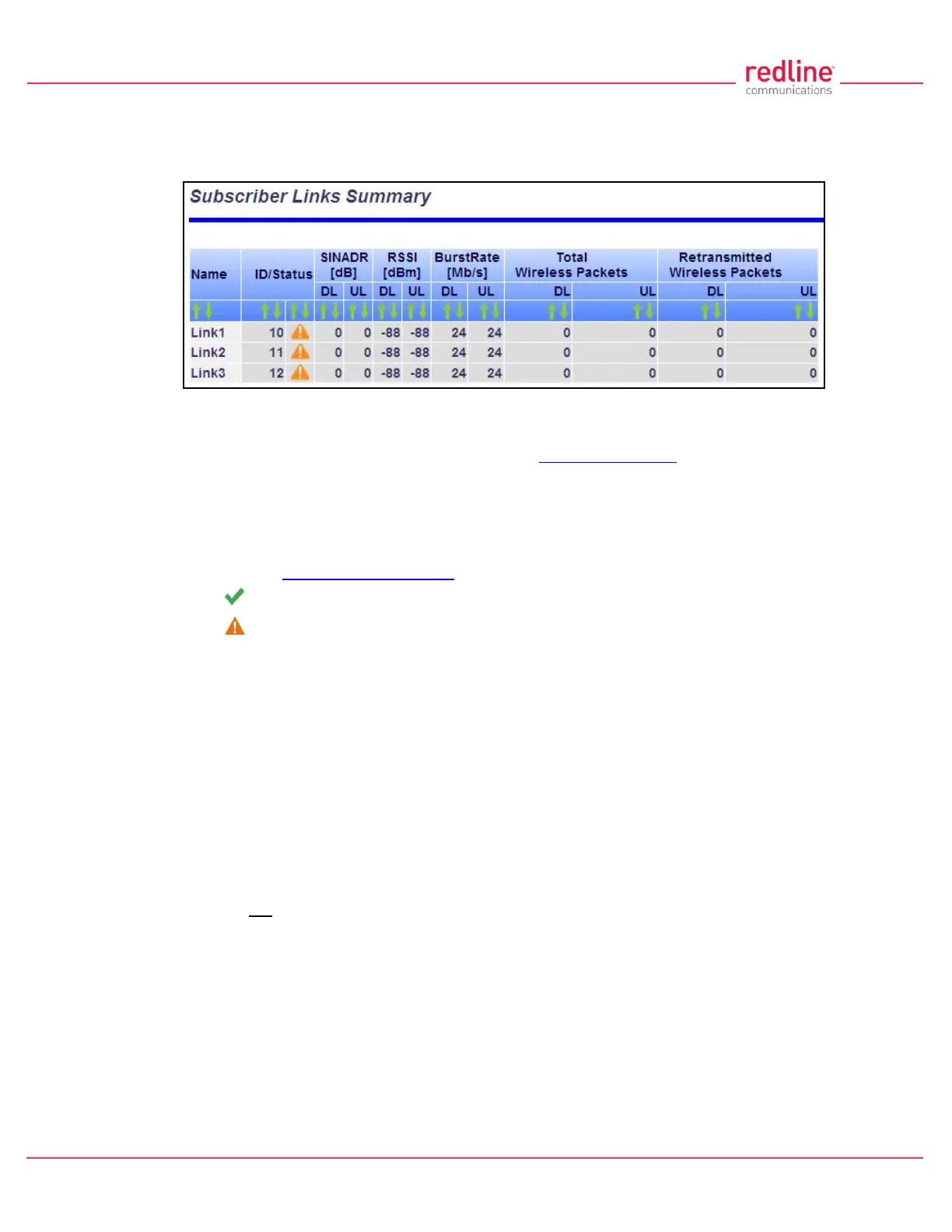

Fig. 31: Web - Subscriber Links Summary Screen
Name: Operator-assigned name for wireless Links and related Services. Click on a
Subscriber Link name (e.g., Link1) to display the Link Configuration screen
ID/Status: Subscriber Link identifier and status indicator.
ID: A unique numeric ID generated automatically when the Subscriber Link was
created. This value is required when using the CLI interface to modify Link settings.
Status: Graphic indication of the status of this link or Service. Click on the symbol to
display the Subscriber Link Status screen.
The link or Service is available.
The link or Service is unavailable (offline or disabled).
SINADR [dB]: Ratio of the average RF signal strength to interference, noise, and distortion.
DL: SINADR reported by the remote end unit.
UL: Received signal strength to noise measured by this unit.
RSSI [dBm]: Received signal strength indicator.
DL: RSSI reported by the remote end unit.
UL: Received signal strength measured by this unit.
Burst Rate [Mb/s]: The current uplink and downlink uncoded burst rate for the link.
DL: Operator-assigned maximum downlink burst rate setting.
UL: Operator-assigned maximum uplink burst rate setting.
Total Wireless Packets: Total packets successfully processed over the wireless interface.
Total does not include discarded or errored packets.
DL: Total packets transmitted over the wireless interface.
UL: Total packets received over the wireless interface.
Retransmitted Wireless Packets: Total number of wireless packets that have been
retransmitted over the wireless interface.
DL: Total packets retransmitted over the wireless interface.
UL: Total packets retransmitted by the remote end.
