RDL-3000 User Manual

4.2 System Menu

4.2.1 Sector Controller and Subscriber Menus

The following functions are available for configuring and monitoring the RDL-3000.

Sector Controller Menu

Subscriber Menu

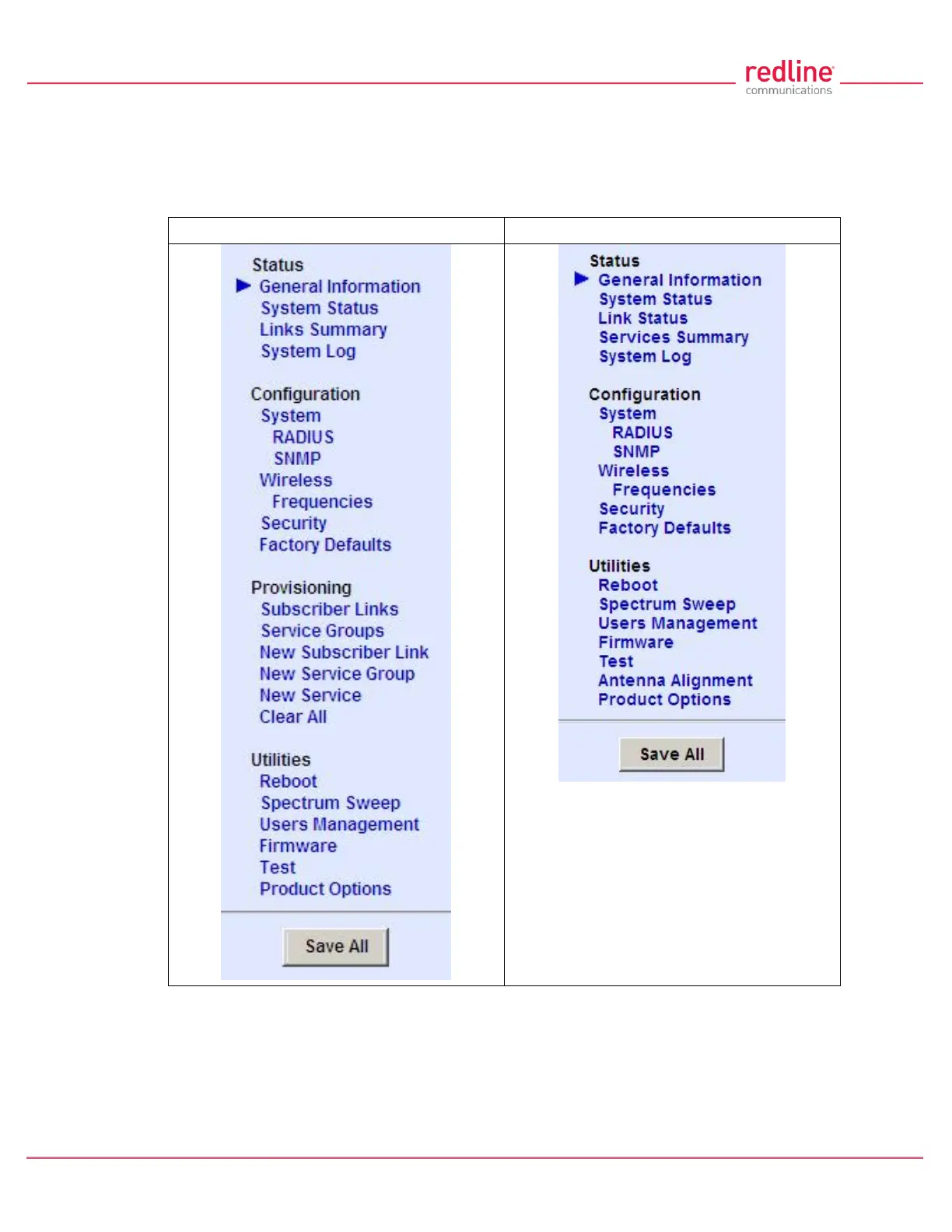

Fig. 26: Web - Main Menus for Sector Controller and Subscriber
