Wireless Summary
Subscriber Links: Status of the wireless links to subscribers.
Configured: Number of provisioned Subscriber Links.
Active: Number of subscribers that are online (registered with sector controller).
Subscriber Services: (Subscriber only) Status of the Subscriber Services for this
subscriber.
Configured: Number of provisioned Services.

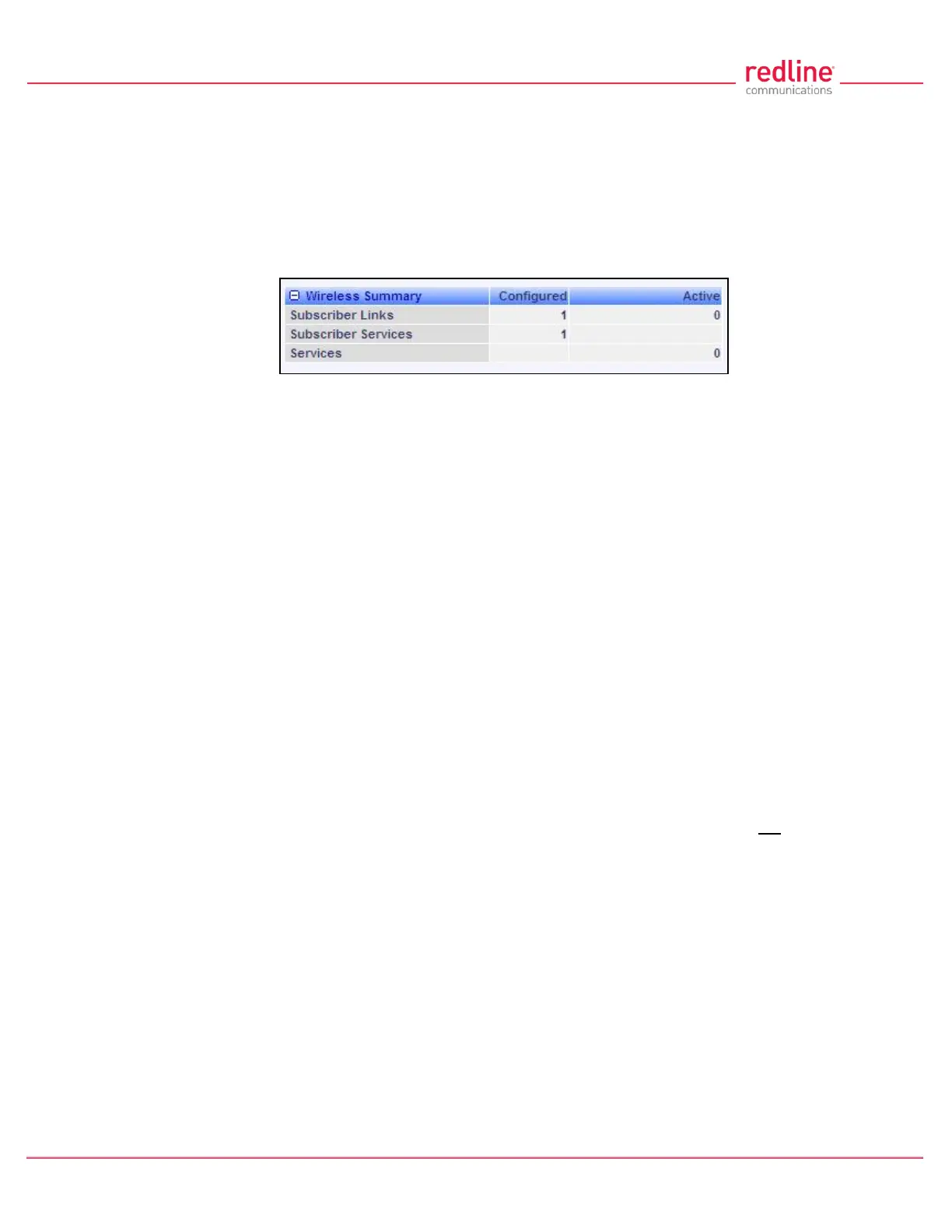

Fig. 30: Web - SS System Status Screen
Services: Status of the Services for all subscribers.
Configured: (SC only) Number of provisioned Services.
Active: Number of active Services (subscriber are active).
Wireless Ethernet Statistics
Buffered Packets: Number of packets successfully processed over the wireless interface,
excluding discarded and errored packets.
Rx: Received wireless packets.
Tx: Transmitted wireless packets.
Discarded Packets: Number of packets discarded by the local unit.
Rx: Received wireless packets discarded (buffer overflow).
Tx: Transmitted wireless packets discarded by the local unit due to errors (e.g., buffer
overflow, or unacknowledged by remote end unit).
Lost Packets: Total number of packets containing errors (e.g., CRC).
Rx: Received wireless packets with errors.
Tx: Transmitted wireless packets with errors detected by remote end unit.
Ethernet Port Statistics
Buffered Packets: Packets processed through the Ethernet port. Total does not include
discarded or errored packets.
Rx: Number of ingress packets received on the Ethernet port.
Tx: Number or egress packets transmitted on the Ethernet port.
Discarded Packets: Total number of packets discarded due to buffer overflow.
Rx: Received packets discarded due to errors (e.g., CRC or buffer overflow).
