4.5.4 Wireless Configuration
Use these settings to configure the RDL-3000 wireless interface. This screen is different
on the sector controller and subscriber unit. Click to expand or to hide fields.

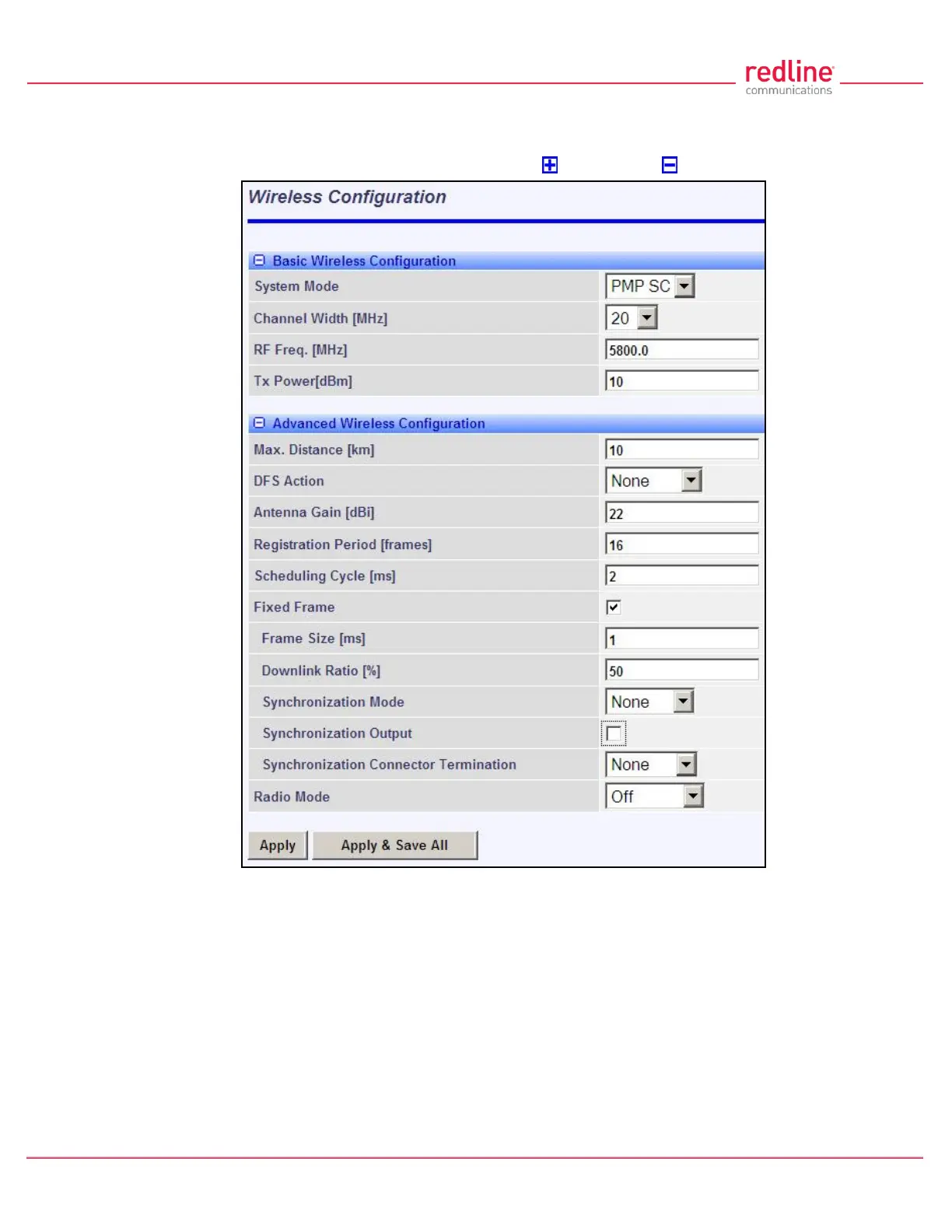

Fig. 44: Web - Wireless Configuration Screen -- Sector Controller
Basic Wireless Configuration
System Mode: The system designated as sector controller establishes and manages
the bi-directional data link with a remote end RDL-3000. Only one system in a wireless
link must be set for Sector Controller mode (PMP SC).
PMP SC: RDL-3000 automatically sends poll messages to locate and register
remote RDL-3000 subscribers, and negotiates operating settings for the link.
PMP SS: RDL-3000 monitors the selected channel(s) until polled by the PMP Sector
Controller.
Channel Width [MHz]: Select the channel bandwidth. The options key controls channel
availability.
