Management 802.1Q VLAN ID [0...4095]: Enter the management VLAN ID. When
Management VLAN Tagging Enable is selected, the system recognizes only
management commands where the Ethernet packet has this VLAN ID.
Important: If the Management VLAN Tagging feature is required, it is recommended
to test the VLAN connectivity before activating this function. Otherwise, the RDL-3000
unit may become unmanageable require a long reset operation to recover control.

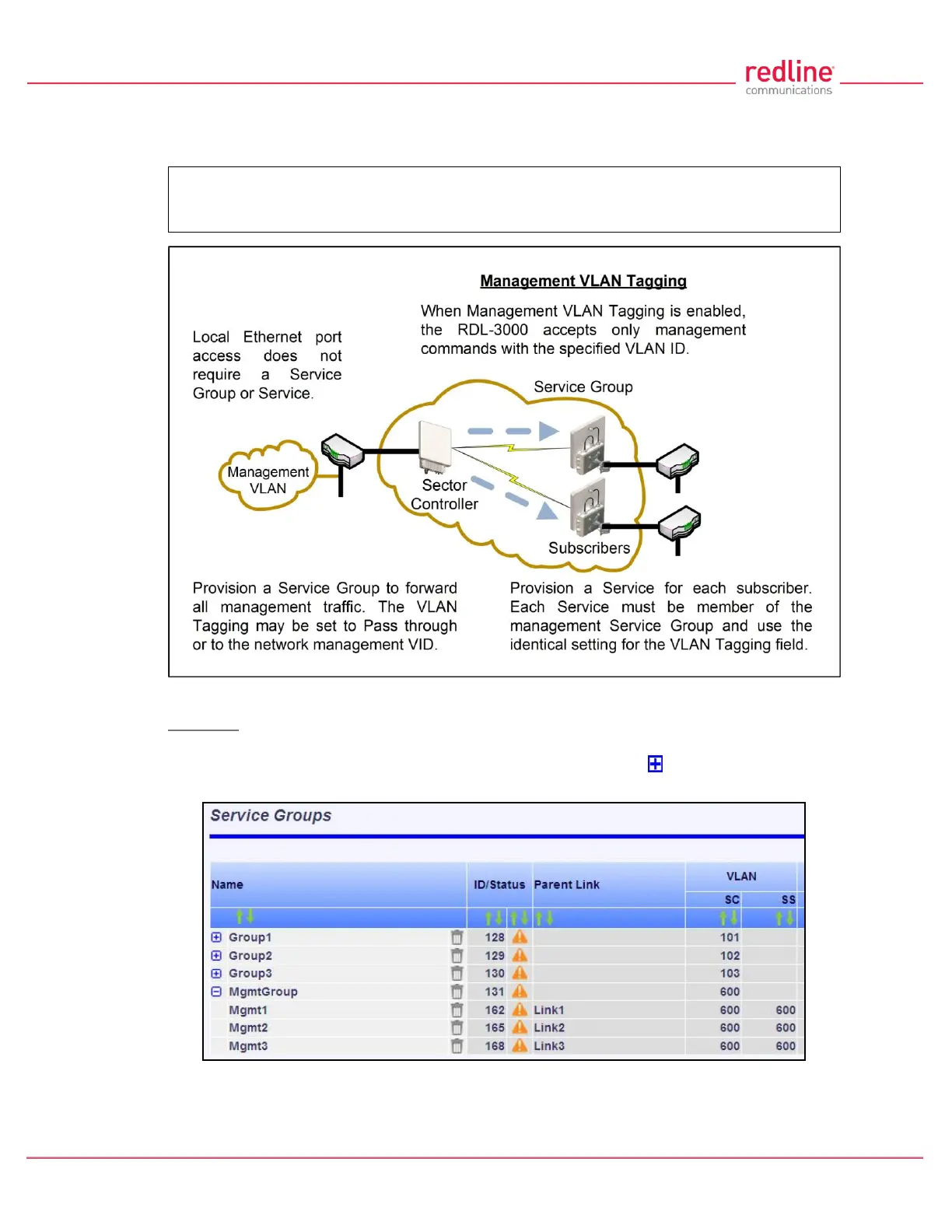

Fig. 36: Web - VLAN Tagged Management
Example
In the following example, the network management VLAN ID=600. Identical settings are
used on the Service Group and each subscriber Service. Click to display the Services
associated with each Service Group.
Fig. 37: Web - VLAN Tagged Management Example
