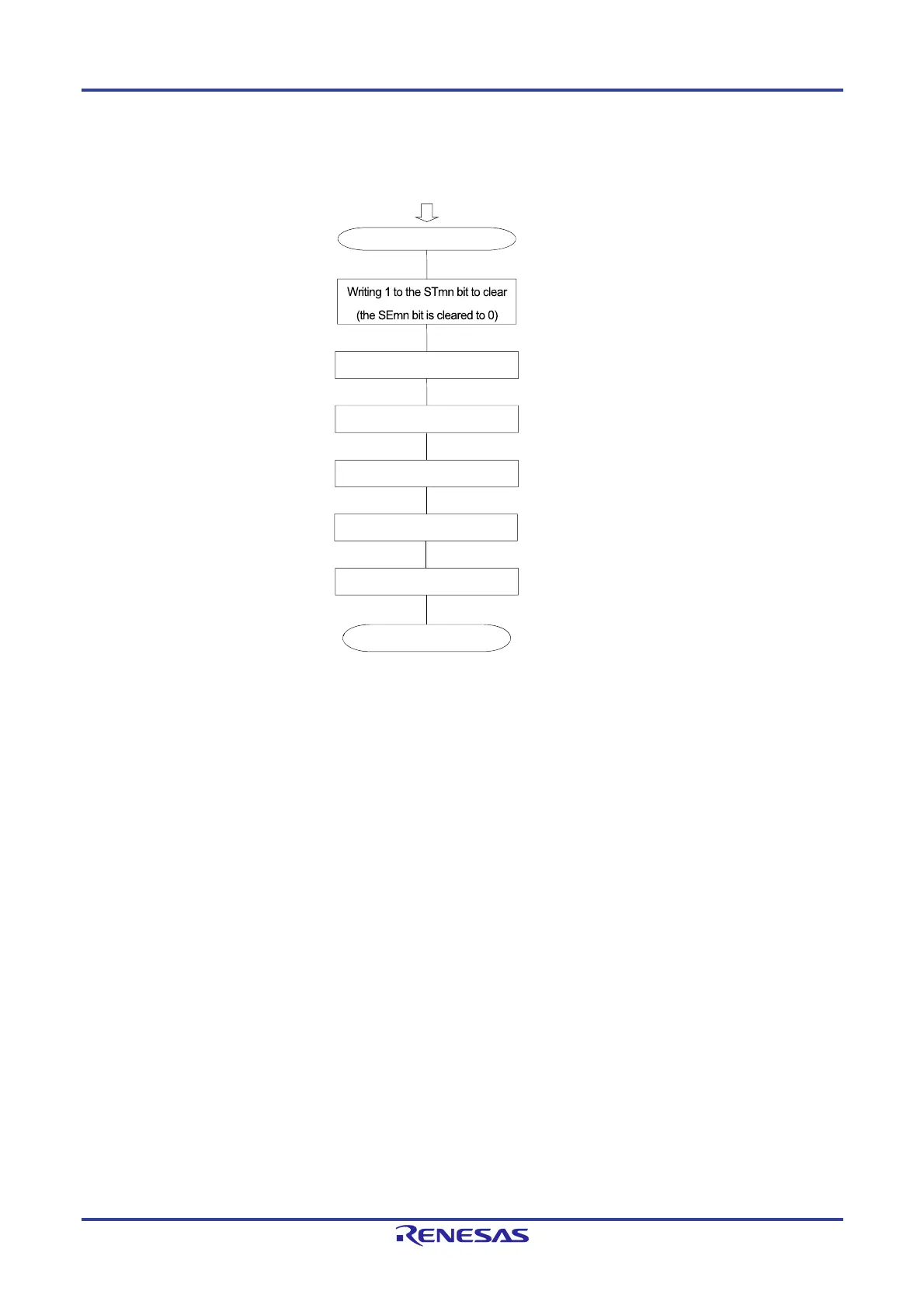

Figure 15-154. Flowchart of Stop Condition Generation
Remark m: Unit number (m = 0, 1), n: Channel number (n = 0, 1), mn = 00, 01, 10, 11
Starting generation of stop condition.
End of IIC communication
Writing 0 to the SOEmn bit
Writing 1 to the SOmn bit
Writing 1 to the CKOmn bit
Writing 0 to the SOmn bit
Completion of data
transmission/data reception
Wait
Secure a wait time so that the specifications of
I
2
C on the slave side are satisfied.
Operation is stopped
To Next Page
