RL78/F13, F14 CHAPTER 18 CAN INTERFACE (RS-CAN LITE)

R01UH0368EJ0210 Rev.2.10 1407

Dec 10, 2015

18.10.4 Receive Rule Setting

Receive rules can be set using receive rule-related registers.

Up to 16 receive rules can be registered.

Figure 18-19 shows the receive rule setting procedure.

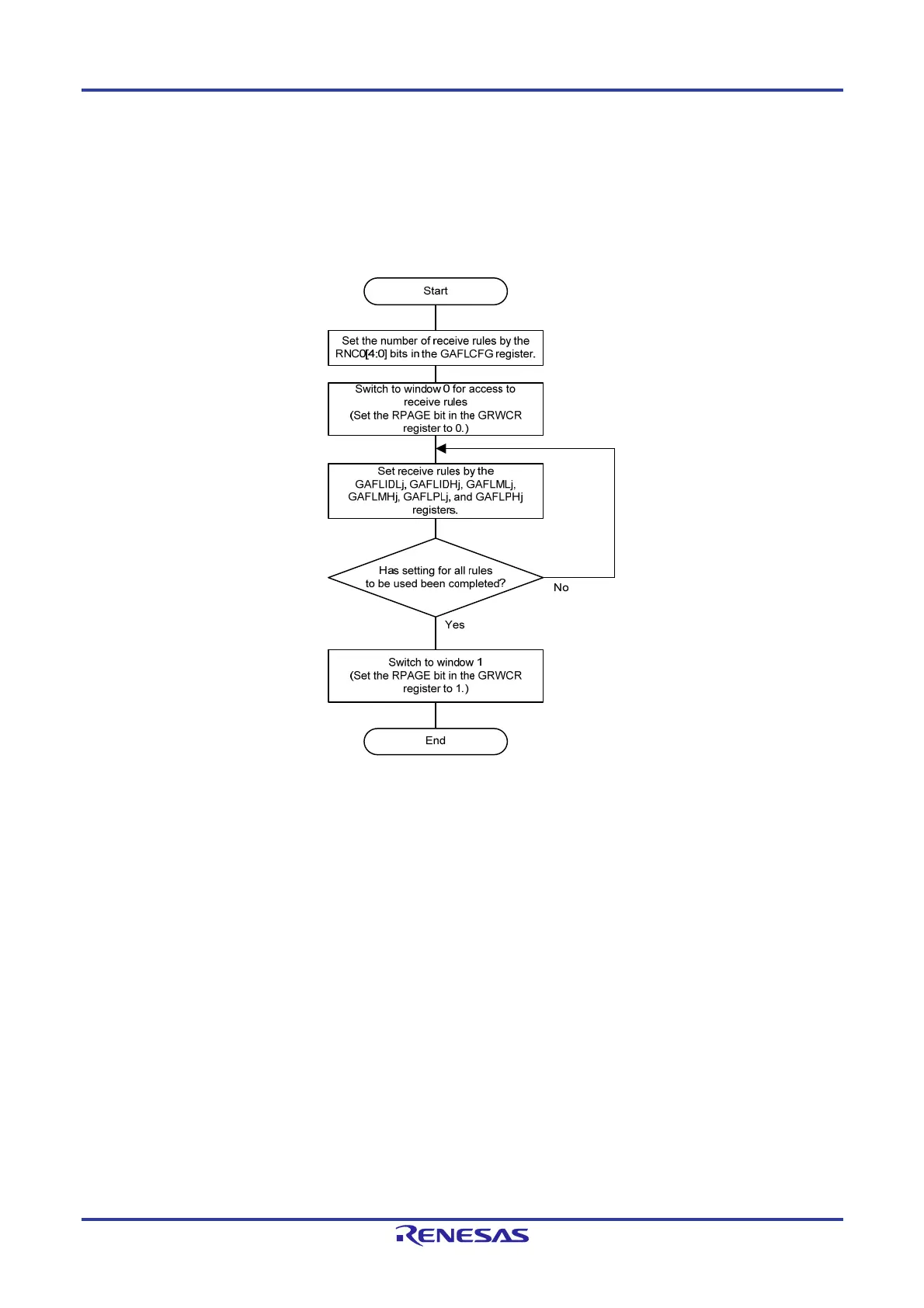

Figure 18-19. Receive Rule Setting Procedure
