RL78/F13, F14 CHAPTER 23 STANDBY FUNCTION
R01UH0368EJ0210 Rev.2.10 1520
Dec 10, 2015
23.2.1 Oscillation stabilization time counter status register (OSTC)
This is the register that indicates the count status of the X1 clock oscillation stabilization time counter.
The X1 clock oscillation stabilization time can be checked in the following case.
If the X1 clock starts oscillation while the high-speed on-chip oscillator clock or sub/low-speed on-chip oscillator
select clock is being used as the CPU clock.
If the STOP mode is entered and then released while the high-speed on-chip oscillator clock is being used as the
CPU clock with the X1 clock oscillating.
The OSTC register can be read by a 1-bit or 8-bit memory manipulation instruction.
When reset is released (reset by RESET input, POR, LVD, WDT, and executing an illegal instruction), the STOP
instruction and MSTOP bit (bit 7 of clock operation status control register (CSC)) = 1 clear this register to 00H.

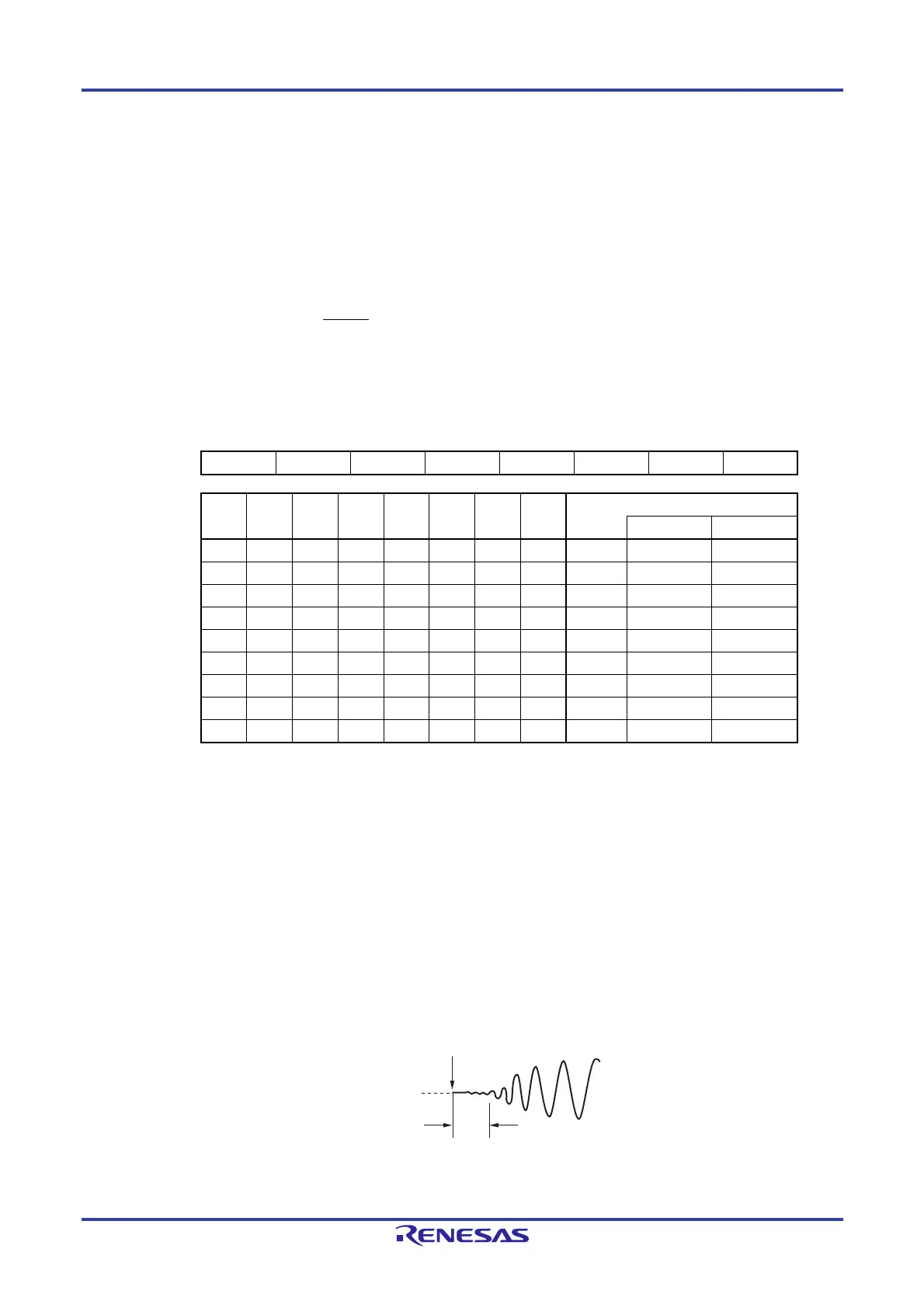

Figure 23-1. Format of Oscillation Stabilization Time Counter Status Register (OSTC)
Address: FFFA2H After reset: 00H R
Symbol 7 6 5 4 3 2 1 0
OSTC MOST8 MOST9 MOST10 MOST11 MOST13 MOST15 MOST17 MOST18
MOST
8
MOST
9
MOST
10
MOST
11
MOST
13
MOST
15
MOST
17
MOST
18
Oscillation stabilization time status
fX = 10 MHz fX = 20 MHz
0 0 0 0 0 0 0 0 2
8
/fX max. 25.6 s max. 12.8 s max.
1 0 0 0 0 0 0 0 2
8
/fX min. 25.6 s min. 12.8 s min.
1 1 0 0 0 0 0 0 2
9
/fX min. 51.2 s min. 25.6 s min.
1 1 1 0 0 0 0 0 2
10
/fX min. 102.4 s min. 51.2 s min.
1 1 1 1 0 0 0 0 2
11
/fX min. 204.8 s min. 102.4 s min.
1 1 1 1 1 0 0 0 2
13
/fX min. 819.2 s min. 409.6 s min.
1 1 1 1 1 1 0 0 2
15
/fX min. 3.27 ms min. 1.63 ms min.
1 1 1 1 1 1 1 0 2
17
/fX min. 13.10 ms min. 6.55 ms min.
1 1 1 1 1 1 1 1 2
18
/fX min. 26.21 ms min. 13.10 ms min.
Cautions 1. After the above time has elapsed, the bits are set to 1 in order from the MOST8
bit and remain 1.
2. The oscillation stabilization time counter counts up to the oscillation stabilization
time set by the oscillation stabilization time select register (OSTS).
In the following cases, set the oscillation stabilization time of the OSTS register
to the value greater than the count value which is to be checked by the OSTC
register.
If the X1 clock starts oscillation while the high-speed on-chip oscillator clock or
subsystem clock is being used as the CPU clock.
If the STOP mode is entered and then released while the high-speed on-chip
oscillator clock is being used as the CPU clock with the X1 clock oscillating.
(Note, therefore, that only the status up to the oscillation stabilization time set by
the OSTS register is set to the OSTC register after the STOP mode is released.)
3. The X1 clock oscillation stabilization wait time does not include the time until
clock oscillation starts (“a” below).
Remark f
X: X1 clock oscillation frequency
STOP mode release
X1 pin voltage
waveform
a
