RL78/F13, F14 CHAPTER 23 STANDBY FUNCTION
R01UH0368EJ0210 Rev.2.10 1521
Dec 10, 2015
23.2.2 Oscillation stabilization time select register (OSTS)
This register is used to select the X1 clock oscillation stabilization wait time when the STOP mode is released.
When the X1 clock is made to oscillate, the operation automatically waits for the time set using the OSTS register.
After the X1 clock starts oscillating, confirm with the oscillation stabilization time counter status register (OSTC) that the
desired oscillation stabilization time has elapsed. The oscillation stabilization time can be checked up to the time set using
the OSTC register.
The OSTS register can be set by an 8-bit memory manipulation instruction.
Writing to the OSTS register is disabled when the GCSC bit of the IAWCTL register is set to 1.
Reset signal generation sets this register to 07H.

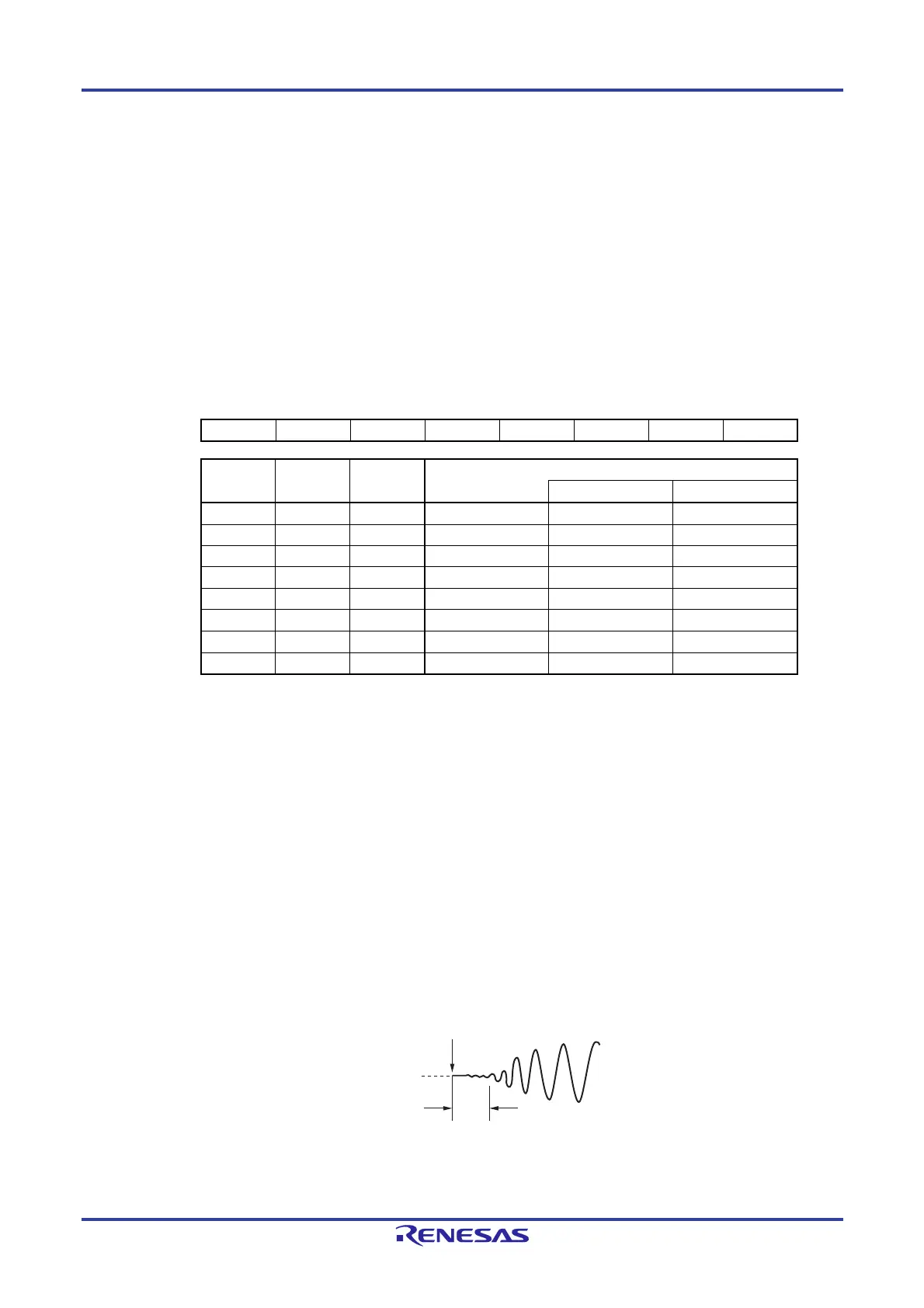

Figure 23-2. Format of Oscillation Stabilization Time Select Register (OSTS)
Address: FFFA3H After reset: 07H R/W
Symbol 7 6 5 4 3 2 1 0
OSTS 0 0 0 0 0 OSTS2 OSTS1 OSTS0
OSTS2 OSTS1 OSTS0 Oscillation stabilization time selection
fX = 10 MHz fX = 20 MHz
0 0 0 2
8
/fX 25.6 s 12.8 s
0 0 1 2
9
/fX 51.2 s 25.6 s
0 1 0 2
10
/fX 102.4 s 51.2 s
0 1 1 2
11
/fX 204.8 s 102.4 s
1 0 0 2
13
/fX 819.2 s 409.6 s
1 0 1 2
15
/fX 3.27 ms 1.63 ms
1 1 0 2
17
/fX 13.10 ms 6.55 ms
1 1 1 2
18
/fX 26.21 ms 13.10 ms
1. To set the STOP mode when the X1 clock is used as the CPU clock, set the OSTS register before
executing the STOP instruction.
2. Before changing the setting of the OSTS register, confirm that the count operation of the OSTC
register is completed.
3. Do not change the value of the OSTS register during the X1 clock oscillation stabilization time.
4. The oscillation stabilization time counter counts up to the oscillation stabilization time set by the
oscillation stabilization time select register (OSTS).
In the following cases, set the oscillation stabilization time of the OSTS register to the value
greater than the count value which is to be checked by the OSTC register.
If the X1 clock starts oscillation while the high-speed on-chip oscillator clock or subsystem
clock is being used as the CPU clock.
If the STOP mode is entered and then released while the high-speed on-chip oscillator clock is
being used as the CPU clock with the X1 clock oscillating.
(Note, therefore, that only the status up to the oscillation stabilization time set by the OSTS
register is set to the OSTC register after the STOP mode is released.)
5. The X1 clock oscillation stabilization wait time does not include the time until clock oscillation
starts (“a” below).
Remark f
X: X1 clock oscillation frequency
