RL78/F13, F14 CHAPTER 18 CAN INTERFACE (RS-CAN LITE)
R01UH0368EJ0210 Rev.2.10 1408
Dec 10, 2015
18.10.5 Buffer Setting
Set sizes and interrupt sources of buffers. For transmit/receive FIFO buffers that are set to transmit mode, set transmit
buffers to be linked.

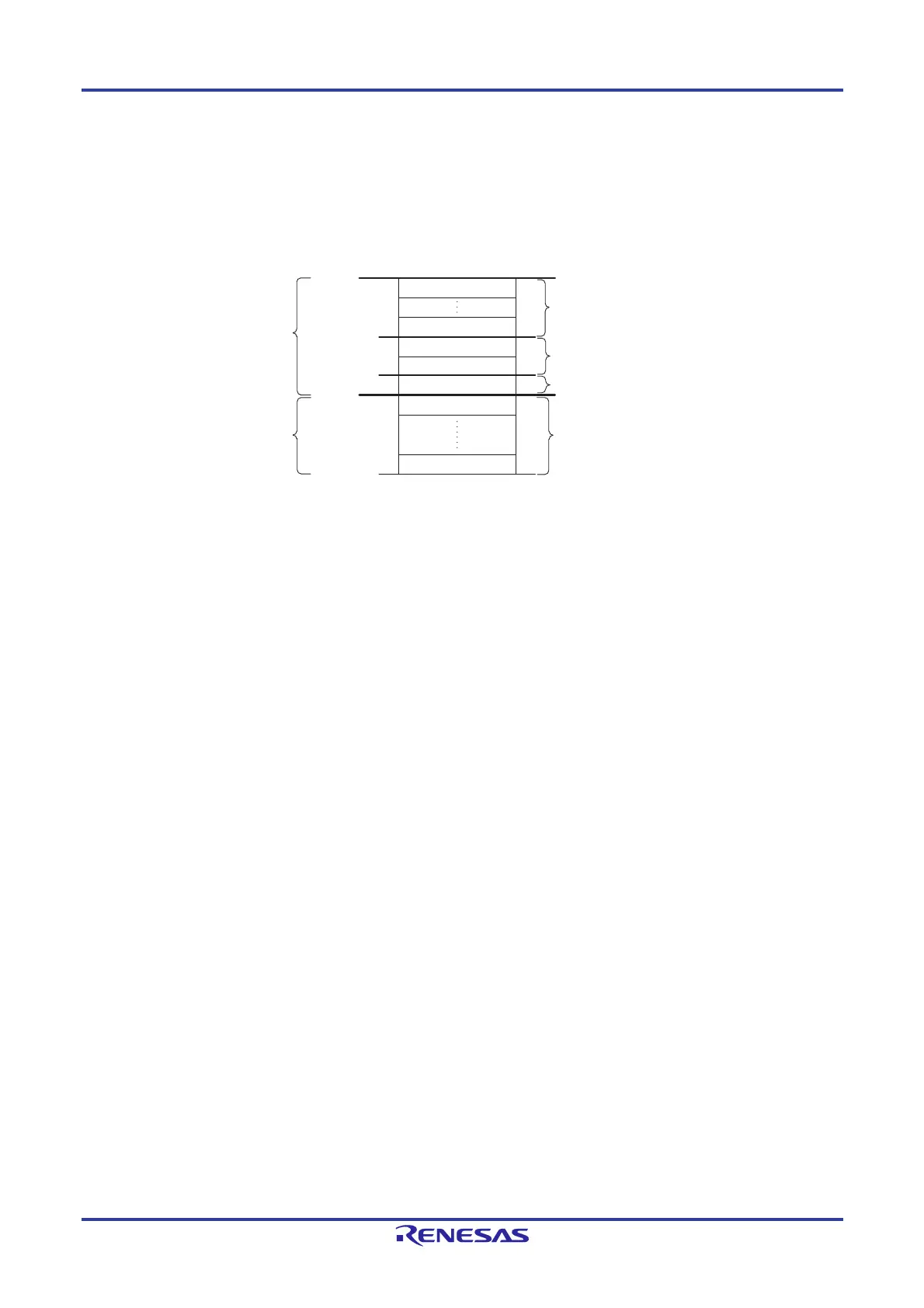

Figure 18-20 shows the buffer configuration. Figure 18-21 shows the buffer setting procedure.
Figure 18-20. Buffer Configuration
Maximum 16 buffers
4 buffers fixed
Caution Receive buffers, receive FIFO buffers, transmit/receive FIFO buffer, and transmit buffers are located in succession.
Remark n = 0 to 15
Receive buffers
Receive buffer 0
Receive buffer n
Receive FIFO 0
Receive FIFO 1
Transmit/receive FIFO 0
Transmit buffer 0
Receive FIFO buffers
Transmit/receive FIFO buffer
Transmit buffers
Transmit buffer 3
