RL78/F13, F14 CHAPTER 36 ELECTRICAL SPECIFICATIONS (GRADE Y)

R01UH0368EJ0210 Rev.2.10 1817

Dec 10, 2015

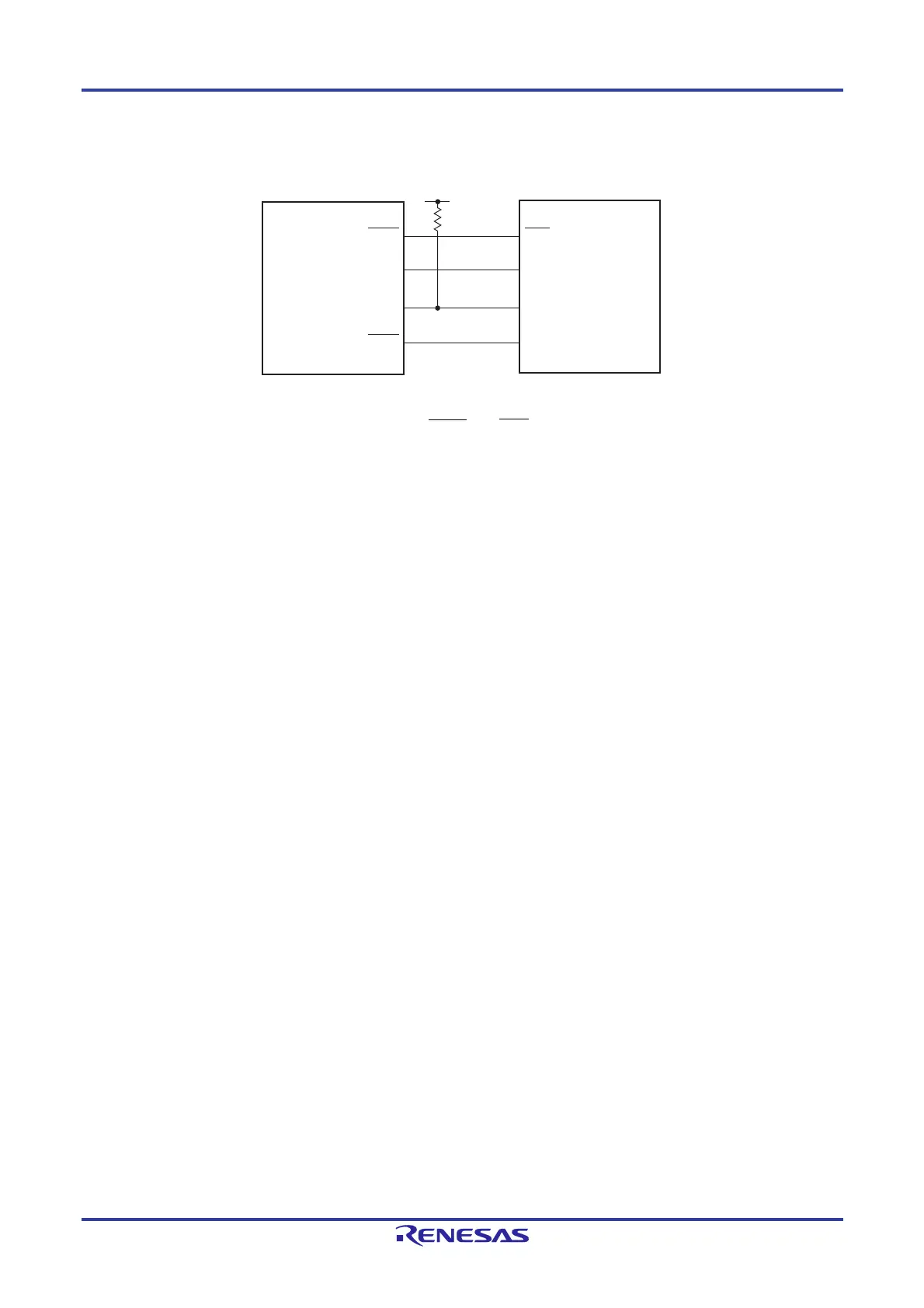

CSI mode connection diagram (during communication at different potential)

Caution Select the TTL input buffer for the SIp, SCKp and SSIp pins and N-ch open-drain output mode for the

SOp pin.

Remarks 1. Rb [Ω]: Communication line (SOp) pull-up resistance, Cb [F]: Communication line (SOp) load capacitance,

Vb [V]: Communication line voltage

2. p: CSIp (p = 00, 01, 10, 11), m: Unit m (m = 0, 1), n: Channel n (n = 0, 1)

3. AC characteristics of the serial array unit during communication at different potential in CSI mode are

measured with the

VIH and VIL below:

When 4.0 V  EVDD0  5.5 V, 2.7 V  Vb  4.0 V: VIH = 2.2 V, VIL = 0.8 V

SCKp

SOp

SCK

User's device

SIp SO

<Slave>

RL78

microcontroller

SSlp

SSO
