RL78/F13, F14 CHAPTER 3 CPU ARCHITECTURE

R01UH0368EJ0210 Rev.2.10 200

Dec 10, 2015

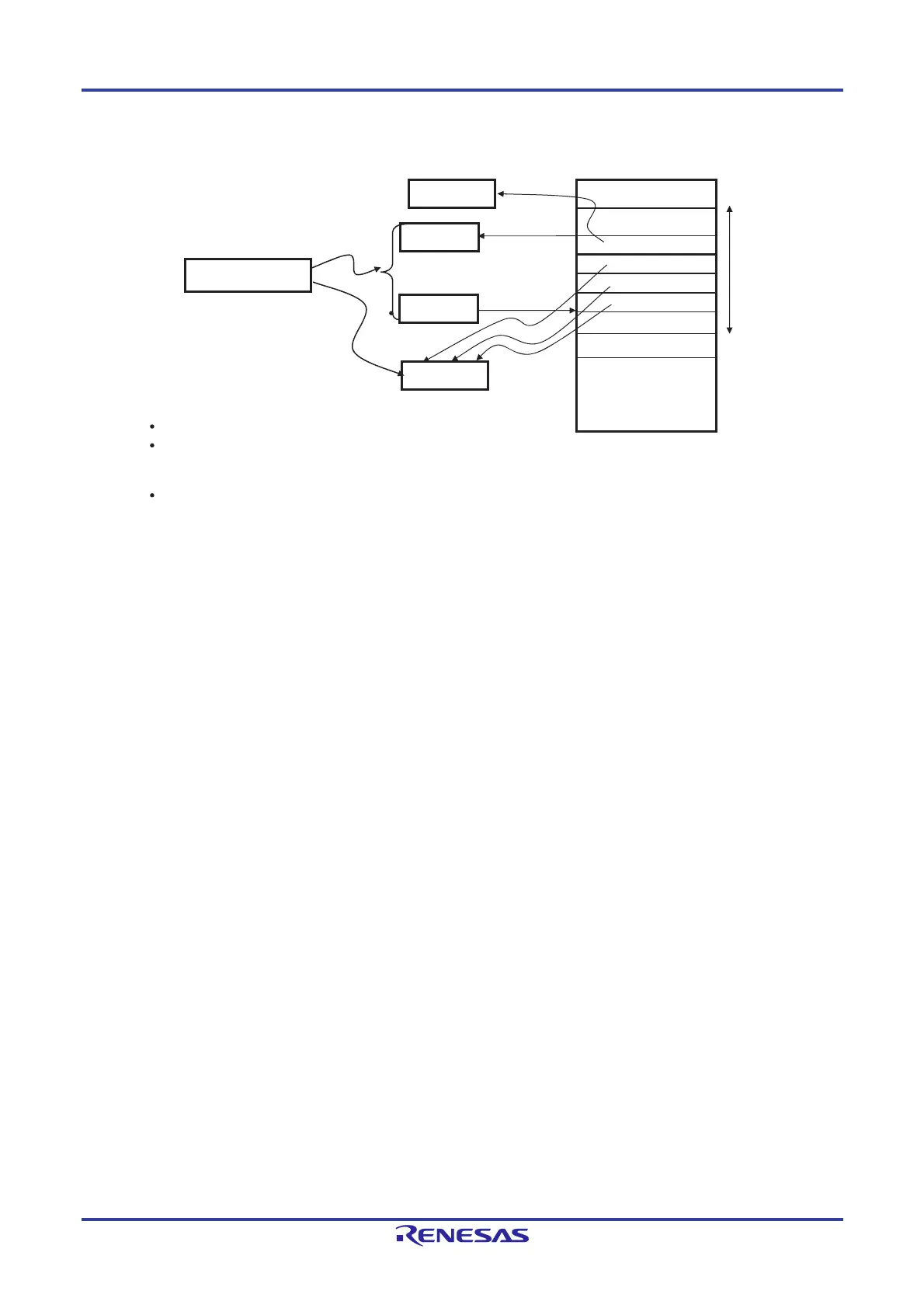

Figure 3-69. Example of RETI, RETB

RETI, RETB

F0000H

PSW

Stack

area

Memory

SP+3 (SP+3)

(SP+2)

(SP+1)

(SP)

SP+2

SP+1

SP+4

OP-code

<1>

Instruction code

<2>

<3>

Stack addressing is specified <1>.

The contents of addresses SP, SP + 1, SP + 2, and SP + 3 are

stored in PC bits 7 to 0, 15 to 8, 19 to 16, and the PSW, respectively

<2>.

The value of SP <3> is increased by four
