RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 292

Dec 10, 2015

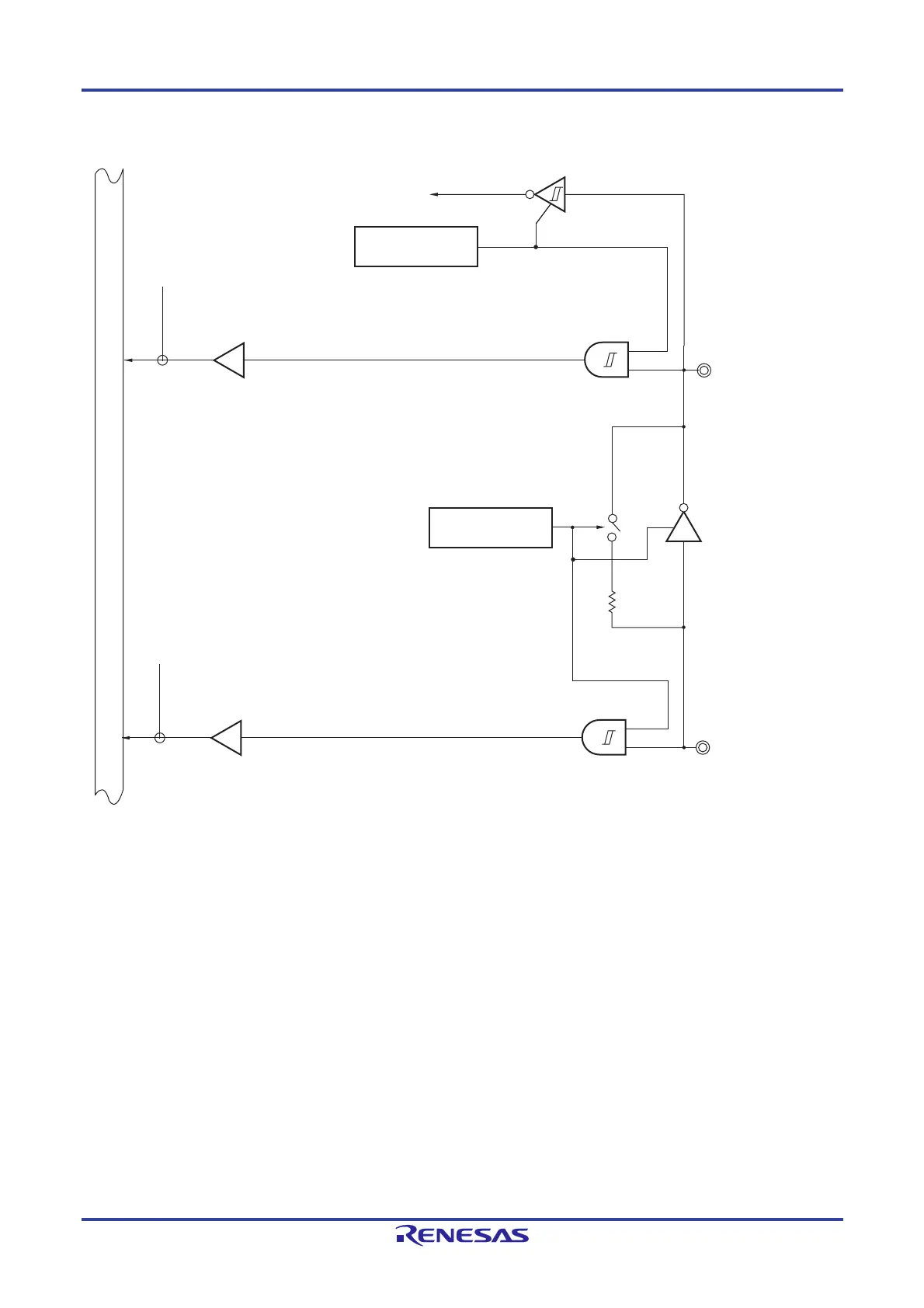

Figure 4-63. Block Diagram of P123 and P124

Clock generator

Internal bus

P124/XT2/EXCLKS

RD

EXCLKS, OSCSELS

CMC

OSCSELS

CMC

P123/XT1

RD

CMC: Clock operation mode control register

RD: Read signal
