RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 294

Dec 10, 2015

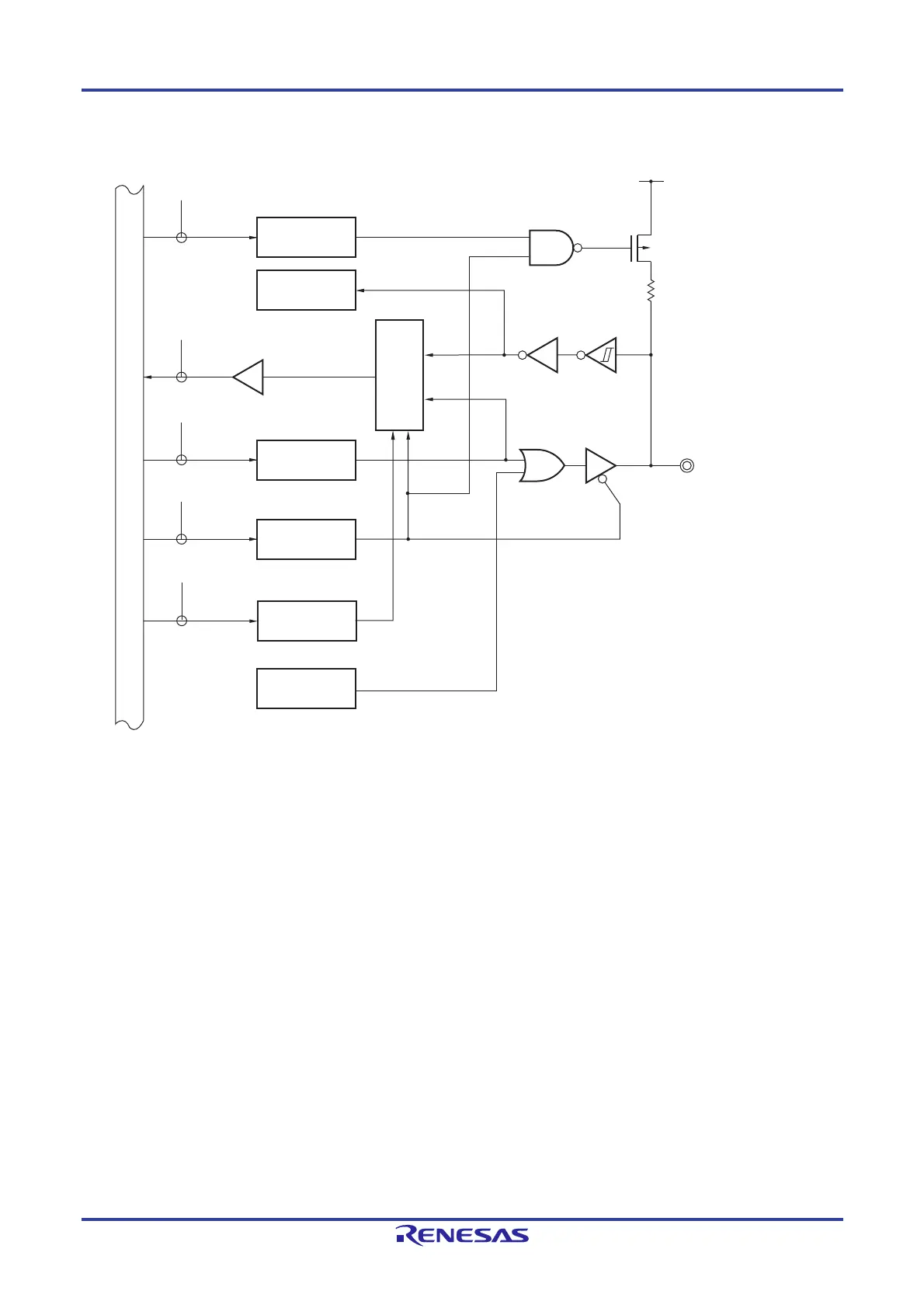

Figure 4-65. Block Diagram of P126 and P127

P126/(TI01)/(TO01),

P127/(TI03)/(TO03)

PORT

PU126, PU127

P126, P127

PM126, PM127

P-ch

PU12

PM12

P12

PMS

PMS0

(TO01), (TO03)

(TI01), (TI03)

Internal bus

Output latch

Alternate function

Selector

P12: Port register 12

PU12: Pull-up resistor option register 12

PM12: Port mode register 12

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
