RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 302

Dec 10, 2015

Figure 4-69 to 4-73 show block diagrams of port 15 for 100-pin products.

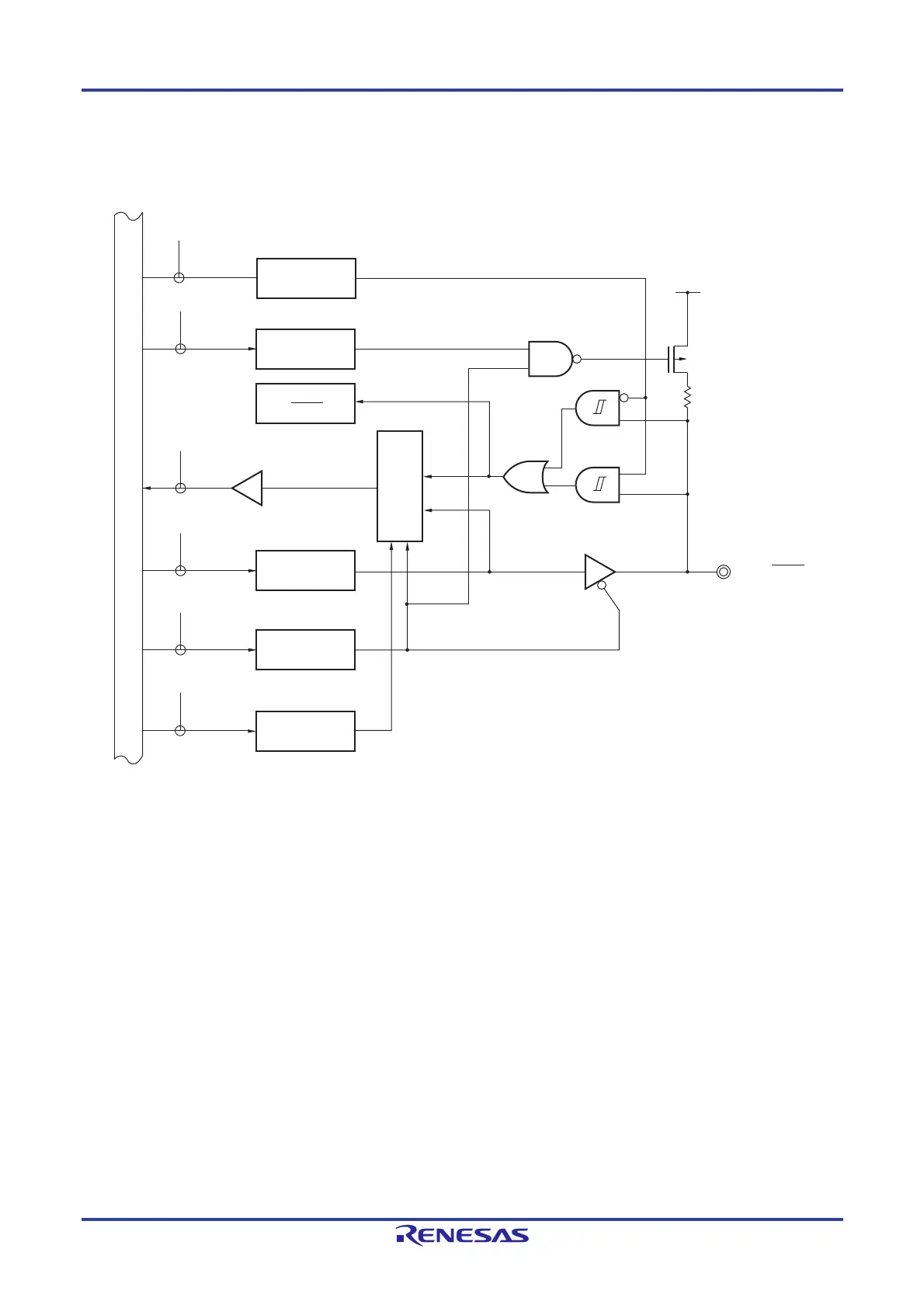

Figure 4-69. Block Diagram of P150

P150/(SSI11)

PORT

PU150

(SSI11)

P150

PM150

P-ch

PU15

PM15

P15

PMS

PMS0

PITHL15

PITHL150

PITHL

CMOS

(Schmitt3)

CMOS

(Schmitt1)

Internal bus

Output latch

Alternate function

Selector

P15: Port register 15

PU15: Pull-up resistor option register 15

PM15: Port mode register 15

PMS: Port mode select register

PITHL15: Port input threshold control register 15

RD: Read signal

WRxx: Write signal
