RL78/F13, F14 CHAPTER 6 TIMER ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 469

Dec 10, 2015

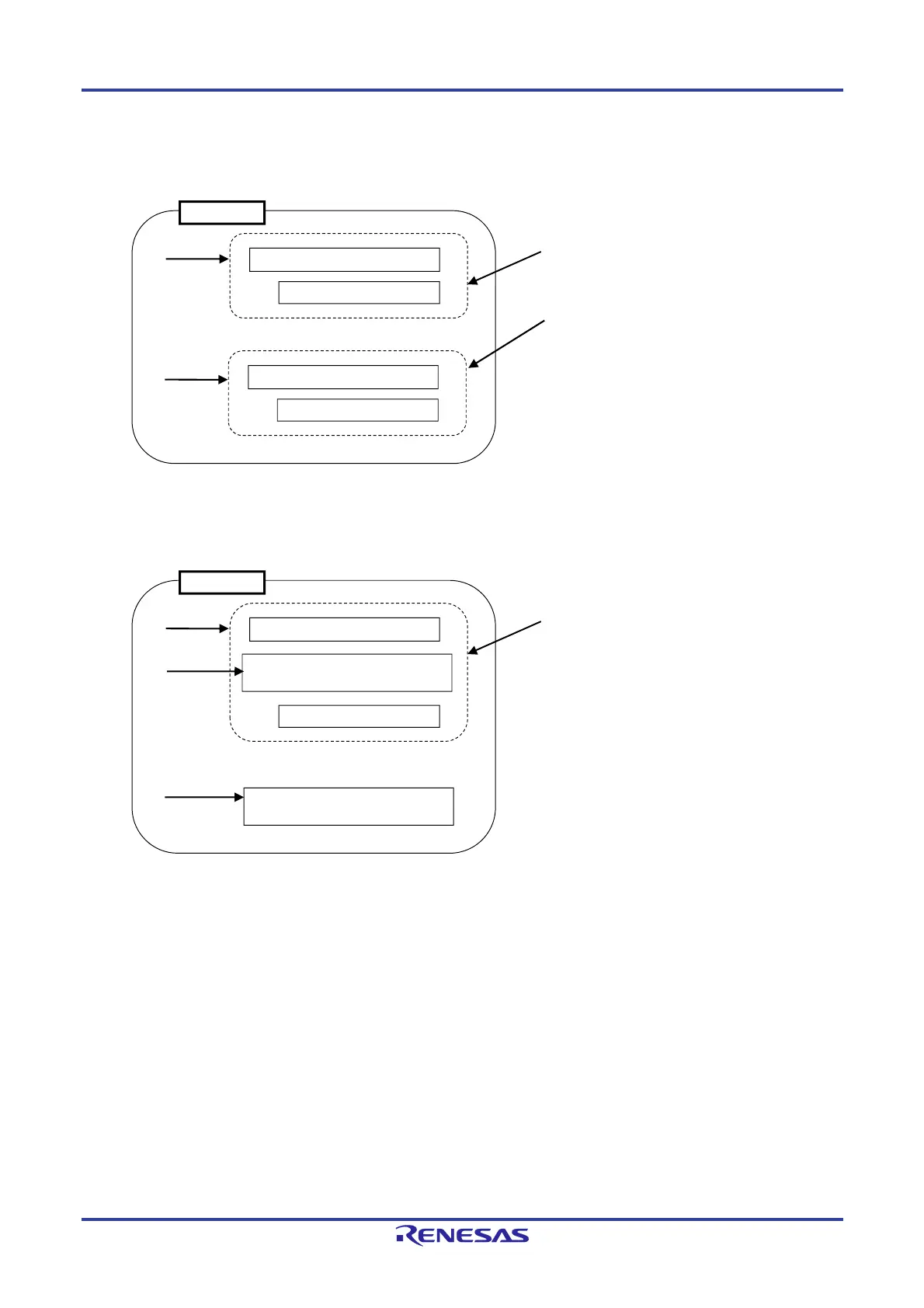

Channel group 1

(Simultaneous channel operation

function)

* The operating clock of channel group 1 may

be different from that of channel group 2.

CK00

Channel 1: Slave

Channel 0: Master

CK01

TAU0

Channel group 2

(Simultaneous channel operation

function)

Channel 3: Slave

Channel 2: Master

Channel group 1

(Simultaneous channel operation

function)

CK00

Channel 0: Master

CK00

TAU0

* A channel that operates independent channel

operation function may be between a master

and a slave of channel group 1. Furthermore,

the operating clock may be set separately.

Channel 3: Independent channel

operation function

Channel 2: Slave

Channel 1: Independent channel

operation function

CK01

Example 1

Example 2
