VisualMotion 9 Troubleshooting Guide VisualMotion 9 Overview 1-1
DOK-VISMOT-VM*-09VRS**-WA02-EN-P
1 VisualMotion 9 Overview
1.1 System Overview
VisualMotion is a programmable multi-axis motion control system capable
of controlling up to 40 intelligent digital drives from Bosch Rexroth. The
PC software used for motion control management is named VisualMotion
Toolkit.
VisualMotion 9 supports the following hardware form factors and firmware
versions:
• PPC-R (RECO-version) using GPP 9 firmware
• PPC-P11.1 (PCI-version) using GMP 9 firmware
1.2 GPP 9 System Overview
The PPC-R is a stand-alone multi-axis motion control. It has the
RECO02 form factor, a form factor used by Bosch Rexroth for motion
controls, PLCs and I/O modules. These devices share the RECO02
back-plane bus for data exchange.
It is recommended to use the VisualMotion motion control with Bosch
Rexroth's DIAX04 and/or ECODRIVE03 digital servo drives. The
communication between control and digital servo drives is performed
using the SERCOS fiber optic interface, the international standard for
real-time communication for digital servo drives.
VisualMotion can provide multi-axis coordinated or non-coordinated
motion control with tightly integrated RECO02 I/O logic control functions.
The flexibility of GPP 9 firmware supports a variety of applications, from
general motion control to sophisticated multiple master electronic line
shafting (ELS) and robotics.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
X6
X7
0V
24V
0V
24V
NSW01.1R
RDY RUN
ERR
STA
ETHERNET
X99
9
10
11
12
13
14
15
16
24V
0V
RDY RUN
ERR
STA
DP-SLAVE
X79
X75
X94
1
2
3
4
5
6
7
8
24V
0V
PPC-R02.2PPC-R01.2
RECO
RECO
PPC-R01.2
H1
PROG
U2
X10
X1
I1
I3
I2
Q1
Q2
24V
e
0V
e
Bb
Bb
24V
0V
S1
RX
TX
U1
RESET
S2
H2
DIST
PPC-R02.2
H1
PROG
X10
X1
Q1
Q2
24V
e
0V
e
Bb
Bb
24V
0V
S1
RX
TX
U1
RESET
S2
H2
DIST
COM
X16
I1
I3
I2
U2 U3 U4
X16
COM
PPCR_Overview.FH7

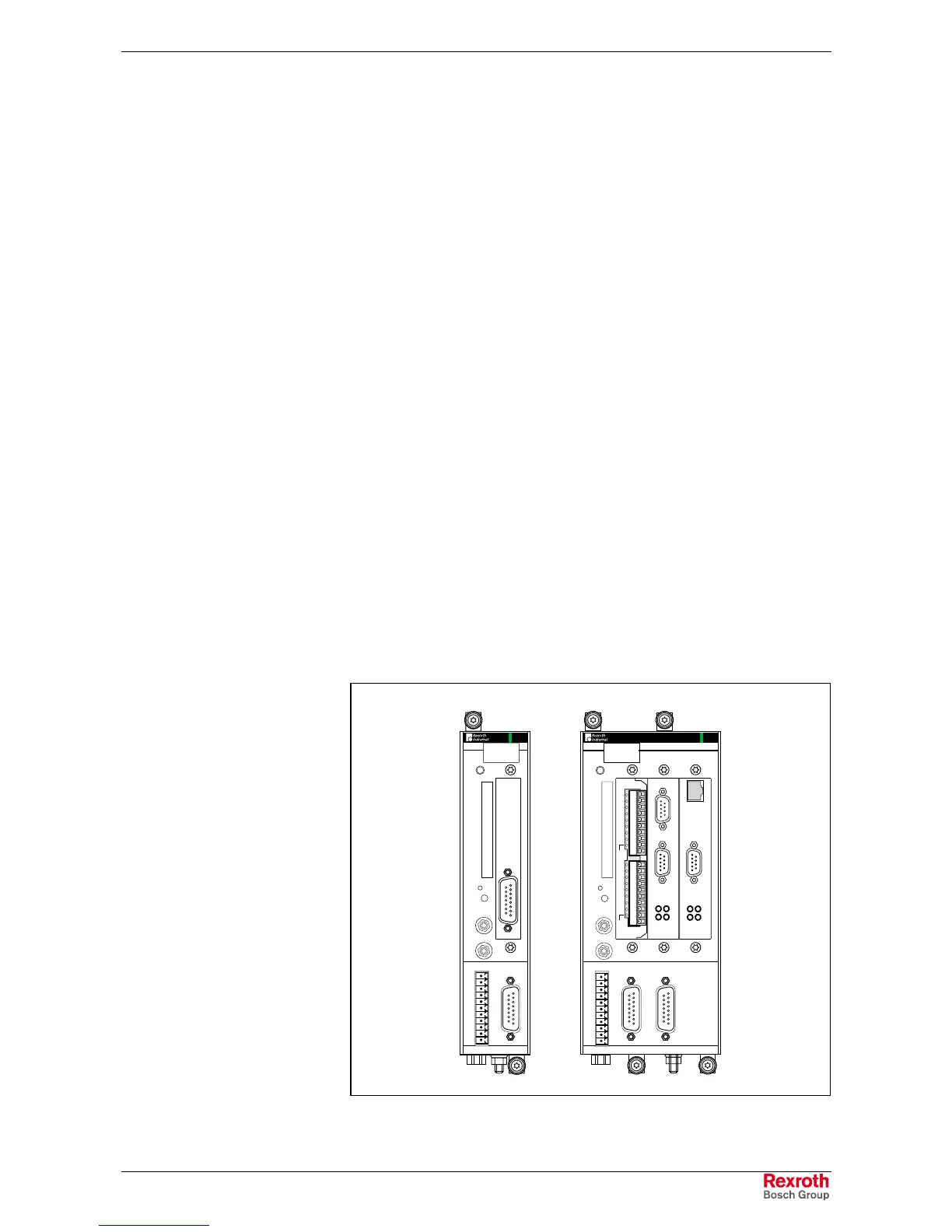

Fig. 1-1: PPC-R Motion Control
