1.6 IMPLEMENTING DYNAMIC COMPENSATION IN THE CLIMATIC CURVES
7RDFFHVVWKHFRQ¿JXUDWLRQSDUDPHWHUVLQVHUWSDVVZRUG
• A correction is made, at the requested water temperature, calculated from the climatic curve.
• Said correction is proportional to the difference between the set room temperature (par. 208) and the temperature measured by the sensor inside
the KCTR (par. 108).
• &RHI¿FLHQWdY1 is the multiplying factor of this difference.
• Accordingly, if the indoor ambient temperature is much lower than the set temperature, the requested water temperature is increased, to reach the
set point much more quickly.
Menù
label
Par Label Description U.m. Range Default Correct Address
min max
USYS
214 dY1
Dynamic winter compensation7KHPXOWLSO\LQJFRHI¿FLHQWIRUWKH
difference between the set and measured ambient temperatures,
applied to the climatic winter curve for radiant operation
- 0 9 0 16423
221 dy3
Dynamic summer compensation7KHPXOWLSO\LQJFRHI¿FLHQWIRUWKH
difference between the set and measured ambient temperatures,
applied to the climatic summer curve for radiant operation
- 0 - 0 16430
If the KCTR is not connected, or if there is an AMbt alarm, said compensation is not enabled.
Dynamic winter compensation for radiant operation:
Dynamic summer compensation for radiant operation:

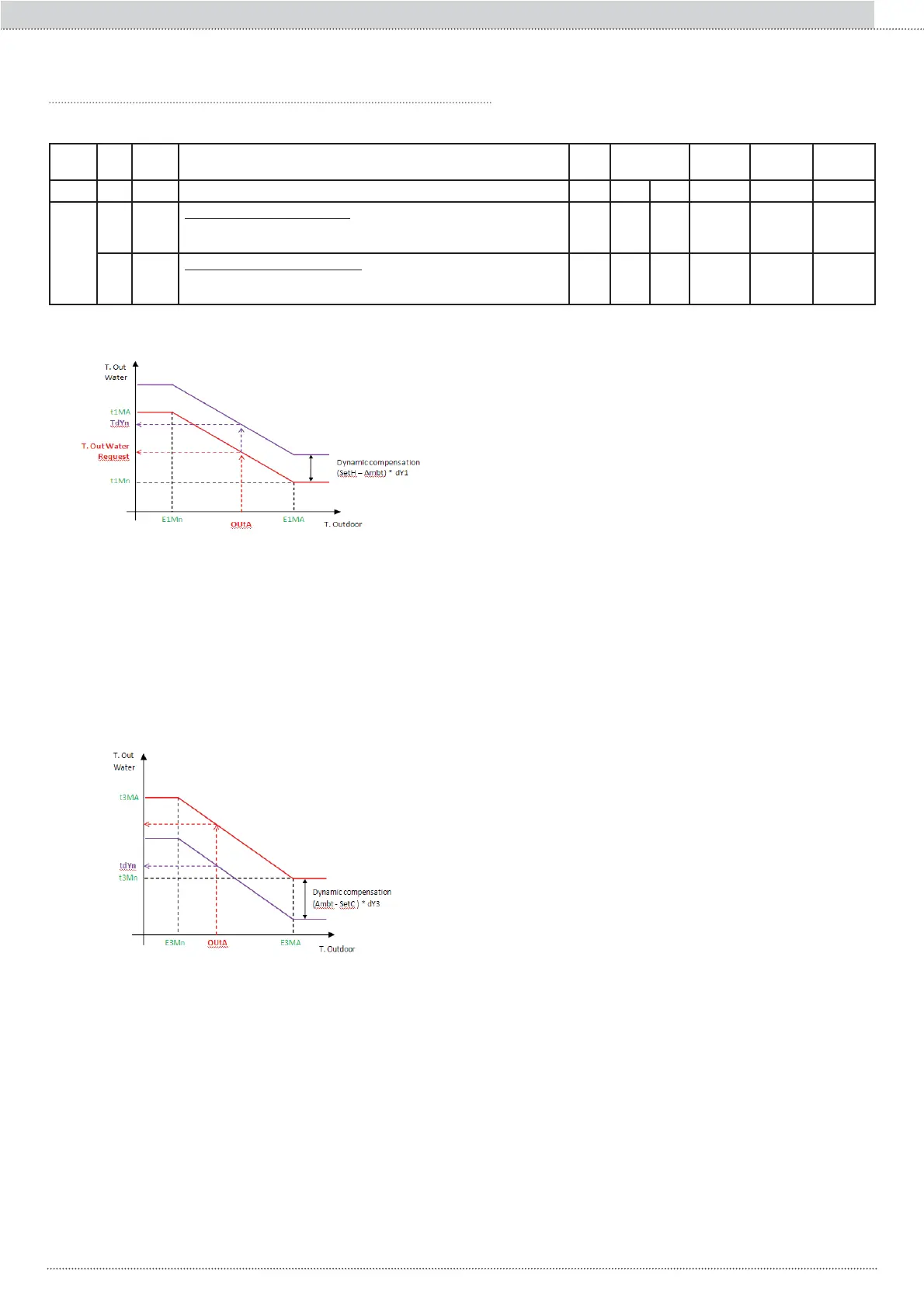

Fig. 5: Determining the requested water temperature, according to the dynamic winter curve, with dynamic compensation.
• A correction is made, at the requested water temperature, calculated from the climatic curve.
• Said correction is proportional to the difference between the set room temperature (par. 208) and the temperature measured by the sensor inside
the KCTR (par. 108).
• &RHI¿FLHQWdY3 is the multiplying factor of this difference.
• Accordingly, if the indoor ambient temperature is much higher than the set temperature, the requested water temperature is reduced, to reach the
set point much more quickly.
Fig. 6: Determining the requested water temperature, according to the dynamic summer curve, with dynamic compensation.
299
Enclosed documents EN
