Part Names and Functions
8

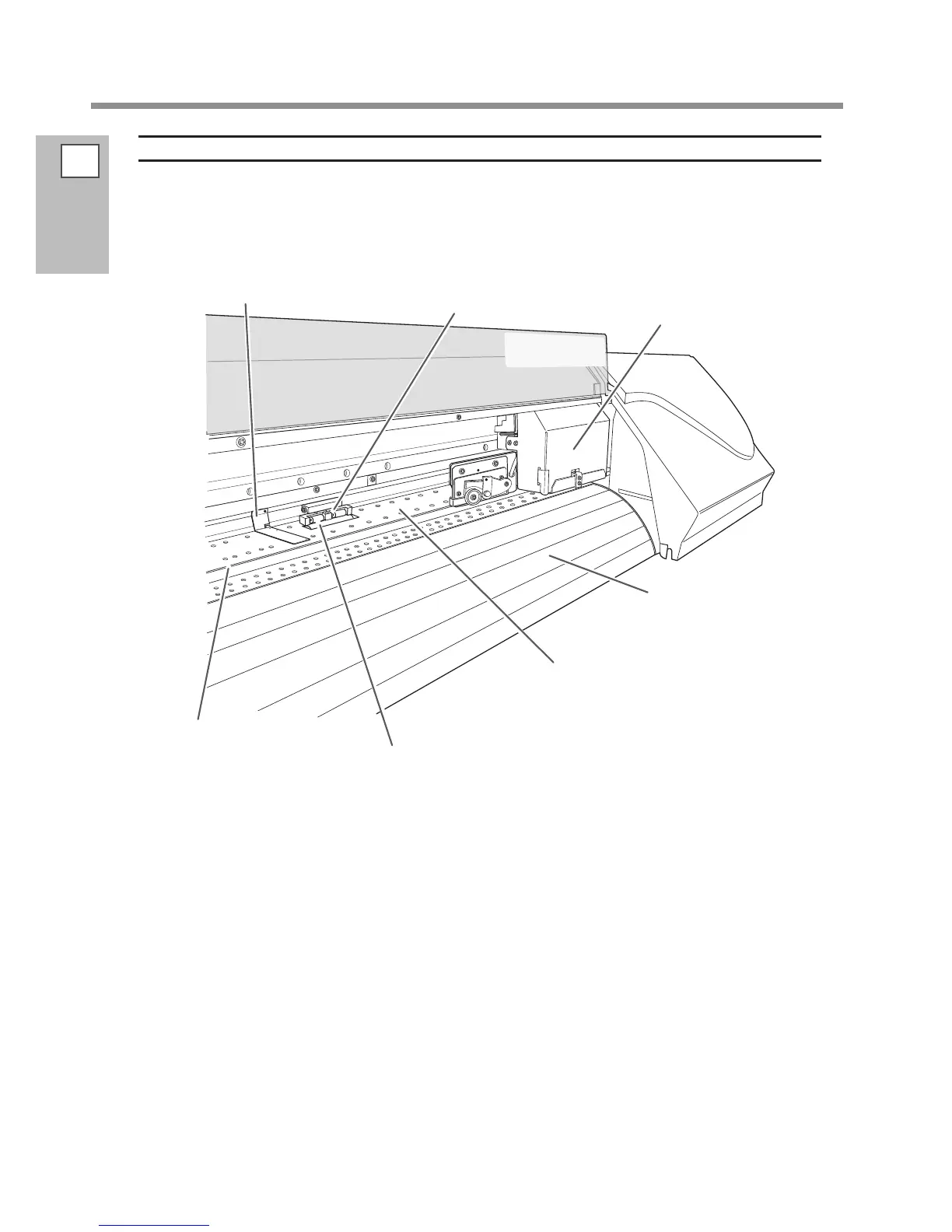

Front Cover Inside / Print Head Periphery
Grid rollers
These rollers feed out
media toward the front of
the machine.
Platen
This is the path over which
the media passes. A suction
fan that keeps the media from
coming loose and print heater
that helps x the ink are built in.
Apron
This has a built-in dryer to
speed up drying of the ink.
Print-head carriage
The print heads are inside this.
Media clamps
These keep the media from
coming loose and prevent fuzz
on the cut edge of the media
from touching the print heads.
Pinch rollers
These clamp the media when
the loading lever is lowered.
Knife guide
The separating knife
passes through this when
you perform media cutoff.
To Next Page
