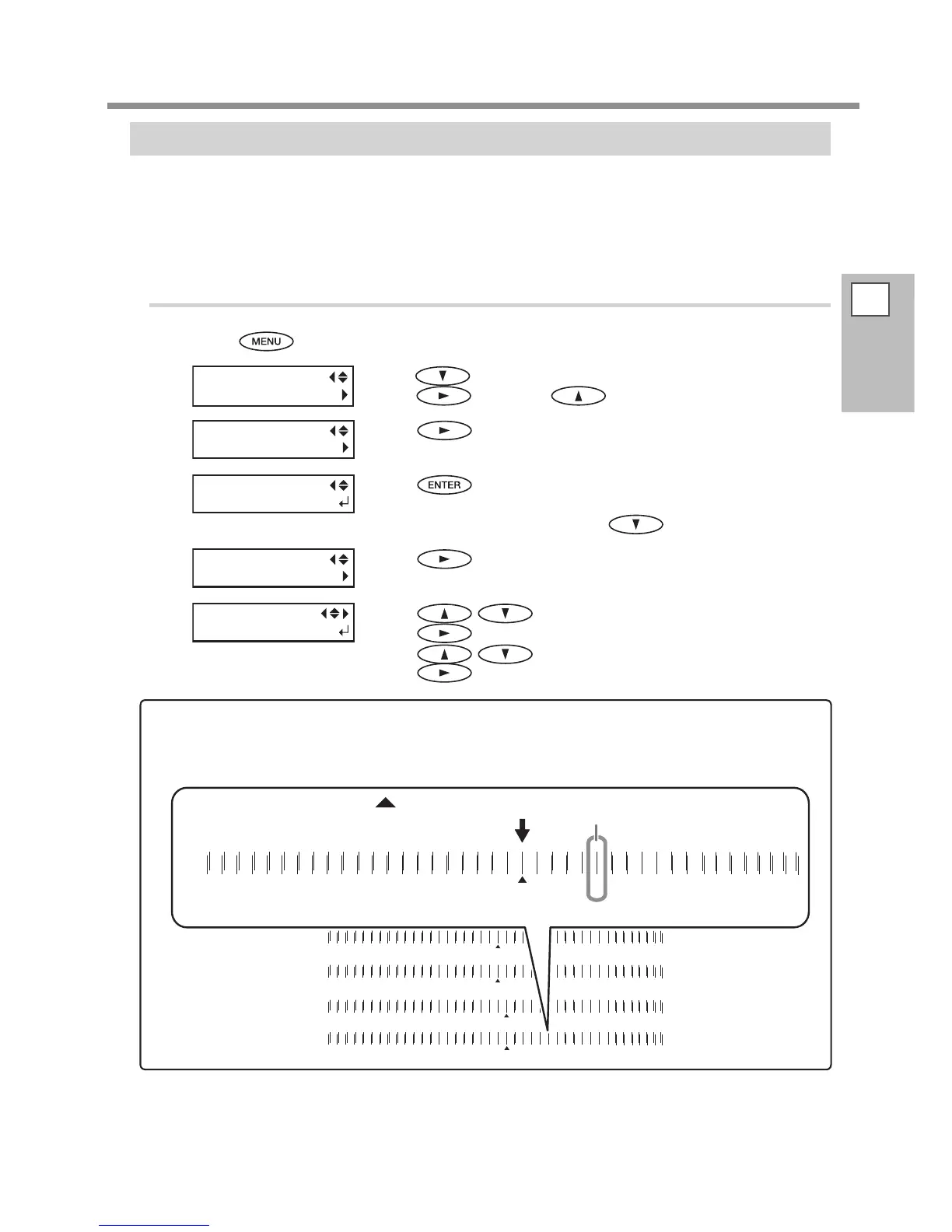

Performing the Initial Adjustment (Correcting for Misalignment in Bidirectional Printing More Precisely)
Perform the initial adjustment of this machine. In the following cases, perform this adjustment.
 When using this machine for the rst time
 When changing the media to use
 When further correction is required to improve printing, such as when simple correction is performed for
misalignment in bidirectional printing ( P. 84, "Correcting for Misalignment in Bidirectional Printing")
Procedure

Press .

Press several times until the screen on the left appears.
Press
, and then .

Press .

Press .
A test pattern is printed.
When printing ends, then press .

Press .

Press to select a correction value of No.1.
Press
.
Press
to select a correction value of No.2.
Press
.
H1
NO.4
-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20
H1
NO.3
-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20
H1
NO.2
-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20
H1
NO.1
-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20
H1
NO.1
-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20
Choose the value that produces
the least misalignment.
To decide a Correction Value
Choose the value that produces the least misalignment of 2 lines. When wavering between two numbers,
select half value.
= Current correction value
MENU
ADJUST BI-DIR
ADJUST BI-DIR
DETAIL SETTING
DETAIL SETTING
TEST PRINT
ADJUST BI-DIR
SETTING
NO.1 NO.2
