Roland XR-640 - Part Names and Functions; Printer Unit

1
Machine Highlights
8

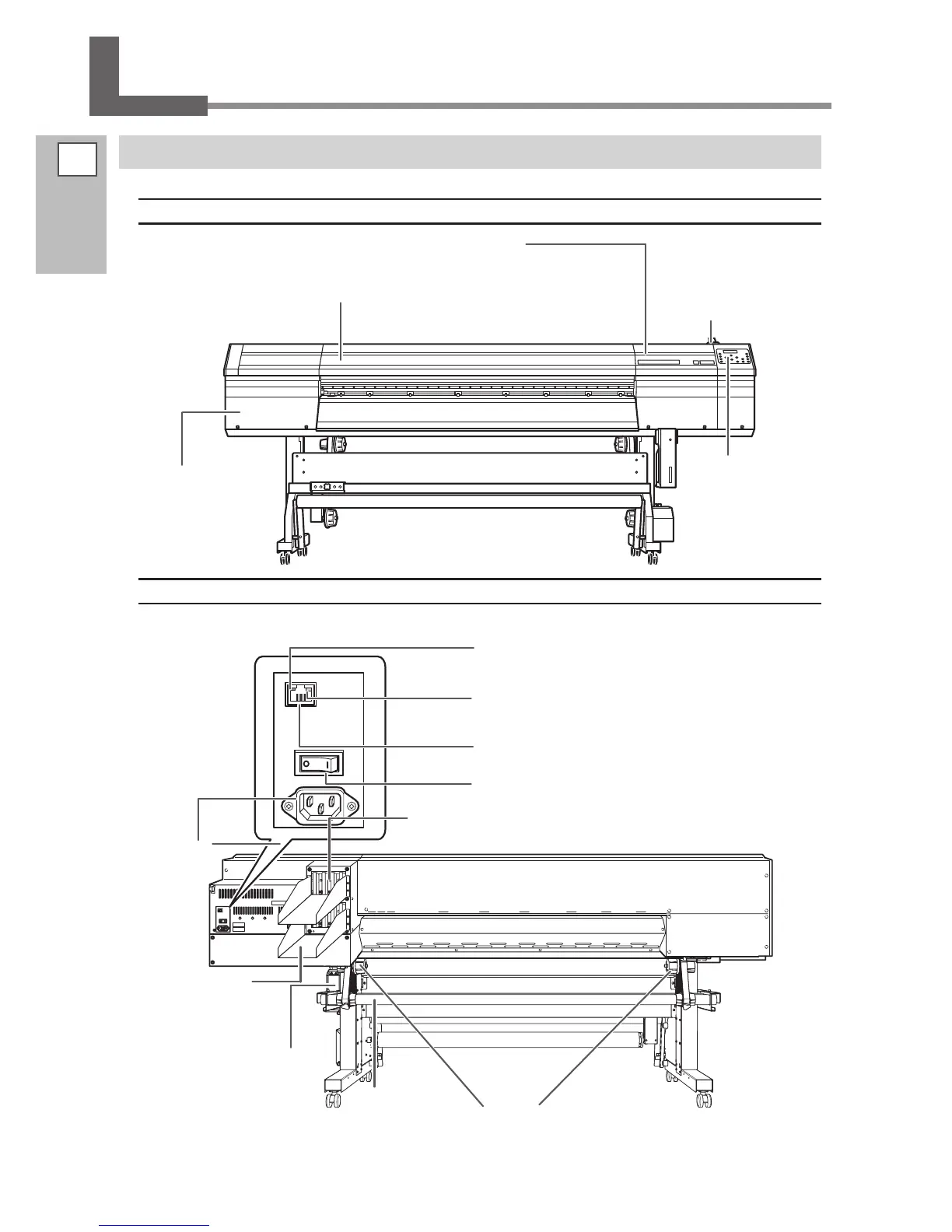

Part Names and Functions
Printer Unit
Front
Rear
Front cover
Keep this closed except when nec-
essary, during when loading media.
Cartridge slots
There are where ink cartridges are installed.
Main power switch
Power-cord
connector
Ethernet connector
This is used to connect the machine to a network.
Status LED
This indicates the status of the machine's network
feature. It lights up green when status is normal
Activity LED
This ashes yellow while data is being received from
the network.
Operation panel
 P. 10, "Operation
Panel"
Drain bottle
Loading lever
You operate this
when you load media.
Ink-cartridge tray
Shaft
Media holder
Cover L
You remove this
when you perform
maintenance.
Cover R
You remove this when you
perform maintenance.
