Light Measurement5.10
The L100 is a highly sensitive light detector. It has two different adapters to measure
the quantities luminance and illuminance. The most common applications for the L100
are luminance (cd/m²) measurements on CRTs (monitors) and viewing boxes, and
illuminance (lx) measurements of ambient light in a room or in front of a CRT. Read the
L100 User's Manual for a detailed description of practical use and explanation of the
theory behind the units and quantities of light.

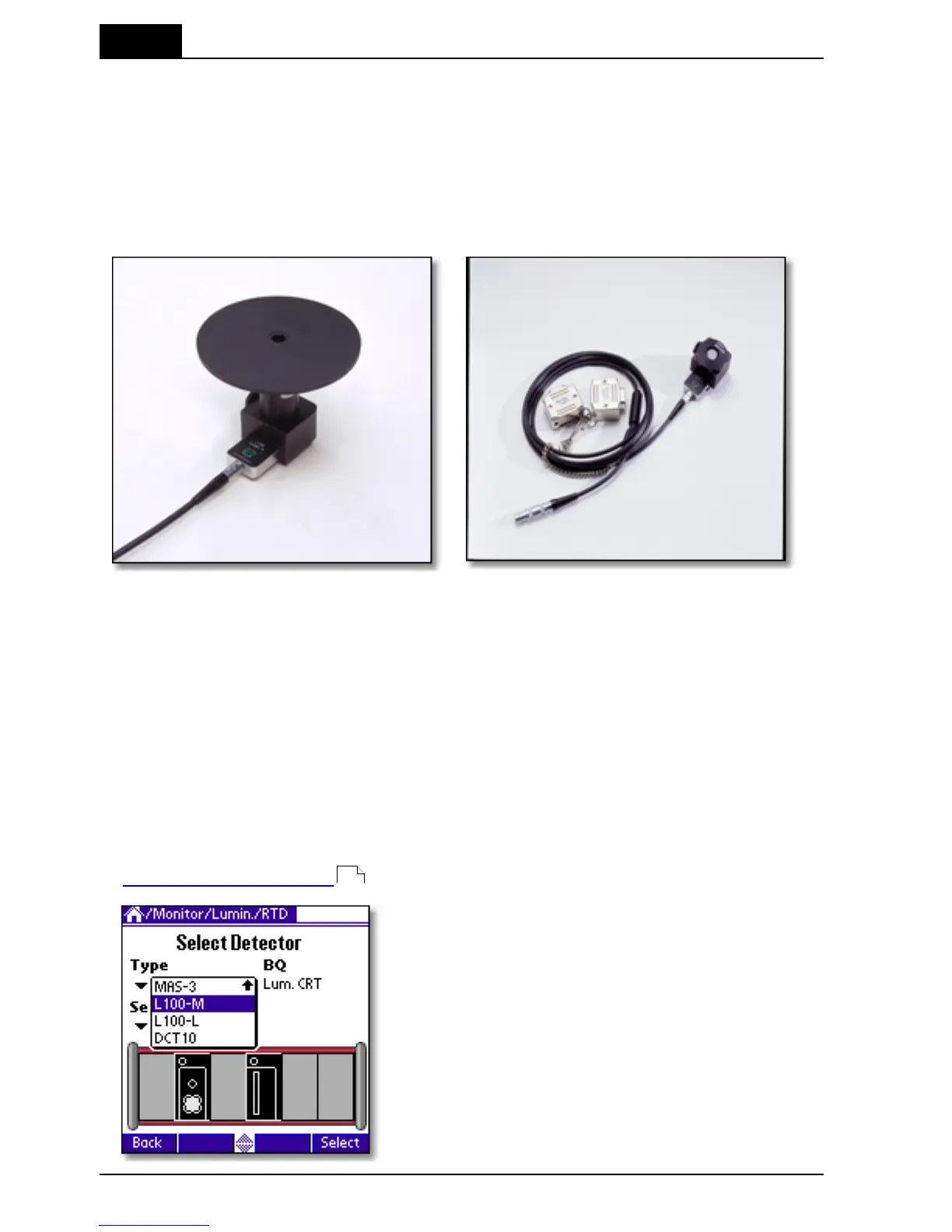

The monitor adapter is shown to the left and the lux adapter to the right.
5.10.1 Luminance - Monitor/Viewbox (cd/m²)
Read the L100 User's Manual to get information about how to do different type of
measurements and how to use the different adapters.
To measure luminance (cd/m²):
1. Attach the monitor adapter to the L100 as described in the L100 User's Manual.
2. Connect the L100 to the EMM.
3. Set up the Barracuda and the handheld computer according to the description in
Setting Up the Barracuda .
4. In the QABrowser select Monitor or
Viewing box from the Type of
Measurement menu.
5. Next select parameter Luminance from
the menu.
6. The Select Detector screen is now
displayed. Select the <%L100-NAME%-M
(the M stands for monitor).
To Next Page
