2. Description of the Barracuda
Setting Up the Barracuda for the First Time
Barracuda & QABrowser Reference Manual
2012-10/4.3A
16
· Charge the system for 16 hours.
Then continue according to the following section.
Setting Up the Barracuda2.5
The Barracuda system comes in a customized case. Two different cases are available,
one smaller carrying case (CAS-6) with space for a basic Barracuda system.
The larger case (CAS-7) is a transportation case
with space for a complete Barracuda system
with all its accessories. The cases are designed
to store typical accessories to the Barracuda,
like Palmtop, probes, chargers, and cables.

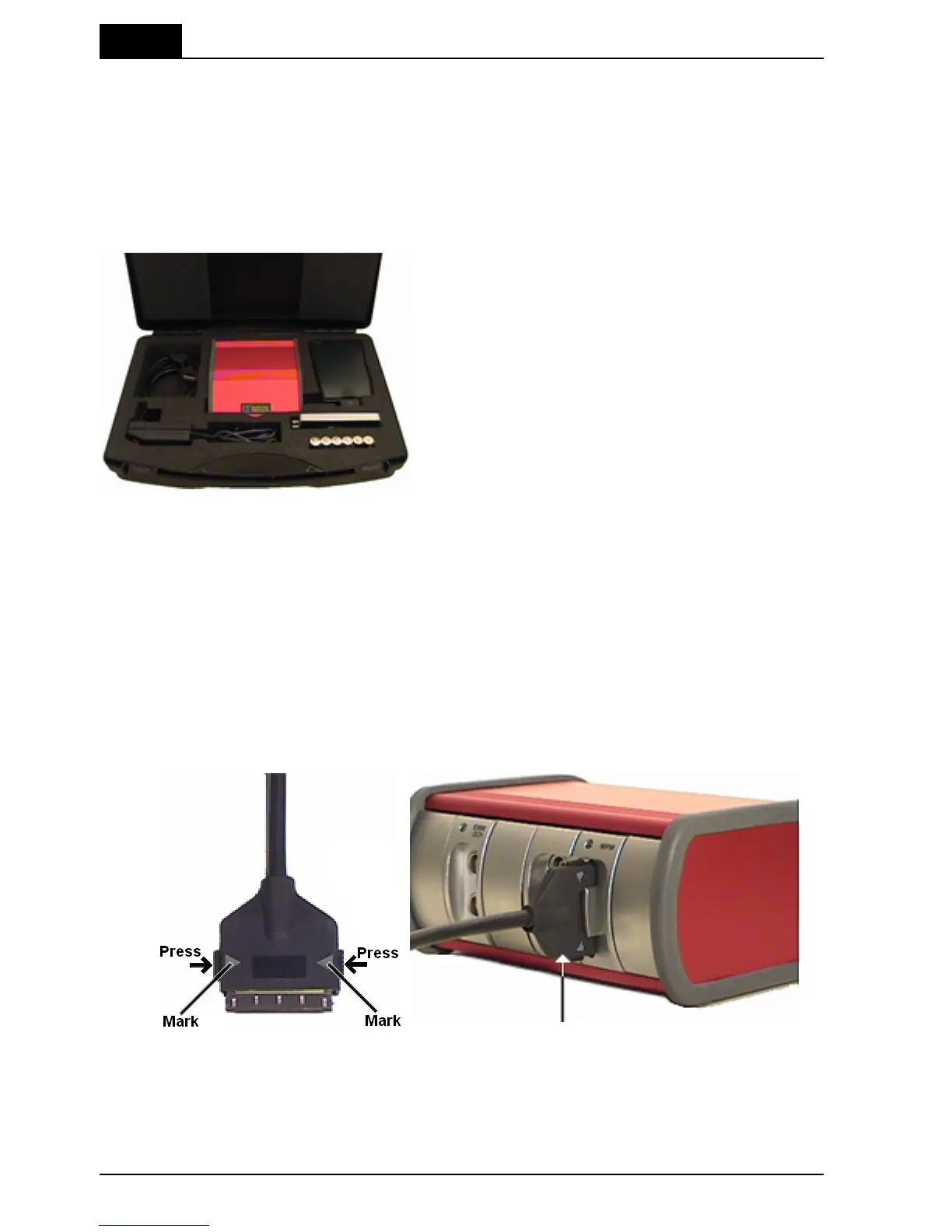

The figure above shows the smaller case, the CAS-6.
To set up the Barracuda:
1.
Pick up the cabinet, the MPD, and the handheld computer from the case.
2.
Connect the MPD cable to the connector on the rear on the cabinet, see figure
below. The connector has the text "TOP" on one side. This text should be pointing
up when connecting the MPD cable. If there is no text use the two marks on one
side. These marks should be to the right when you are looking at the cabinet from
the rear. Do not use unnecessary force. To disconnect the MPD cable press the two
"buttons" on each side of the connector house and gently remove it.
3.
Connect the other connector to the MPD. The connector has the text "TOP" on one
side. The text should be at the same side as the MPD detector area. If there is no
text let the marks (from 2 above) be on the side towards the bottom of the MPD. Do
