5.6.2 Setting Up the Barracuda for Mammography
To set up the Barracuda:
1.
Pick up the cabinet, the MPD, and the handheld computer from the case.
2.
Connect the MPD cable to the connector on the rear on the cabinet, see figure
below. The connector has the text "TOP" on one side. This text should be pointing
up when connecting the MPD cable. If there is no text use the two marks on one
side. These marks should be to the right when you are looking at the cabinet from
the rear. Do not use unnecessary force. To disconnect the MPD cable press the two
"buttons" on each side of the connector house and gently remove it.

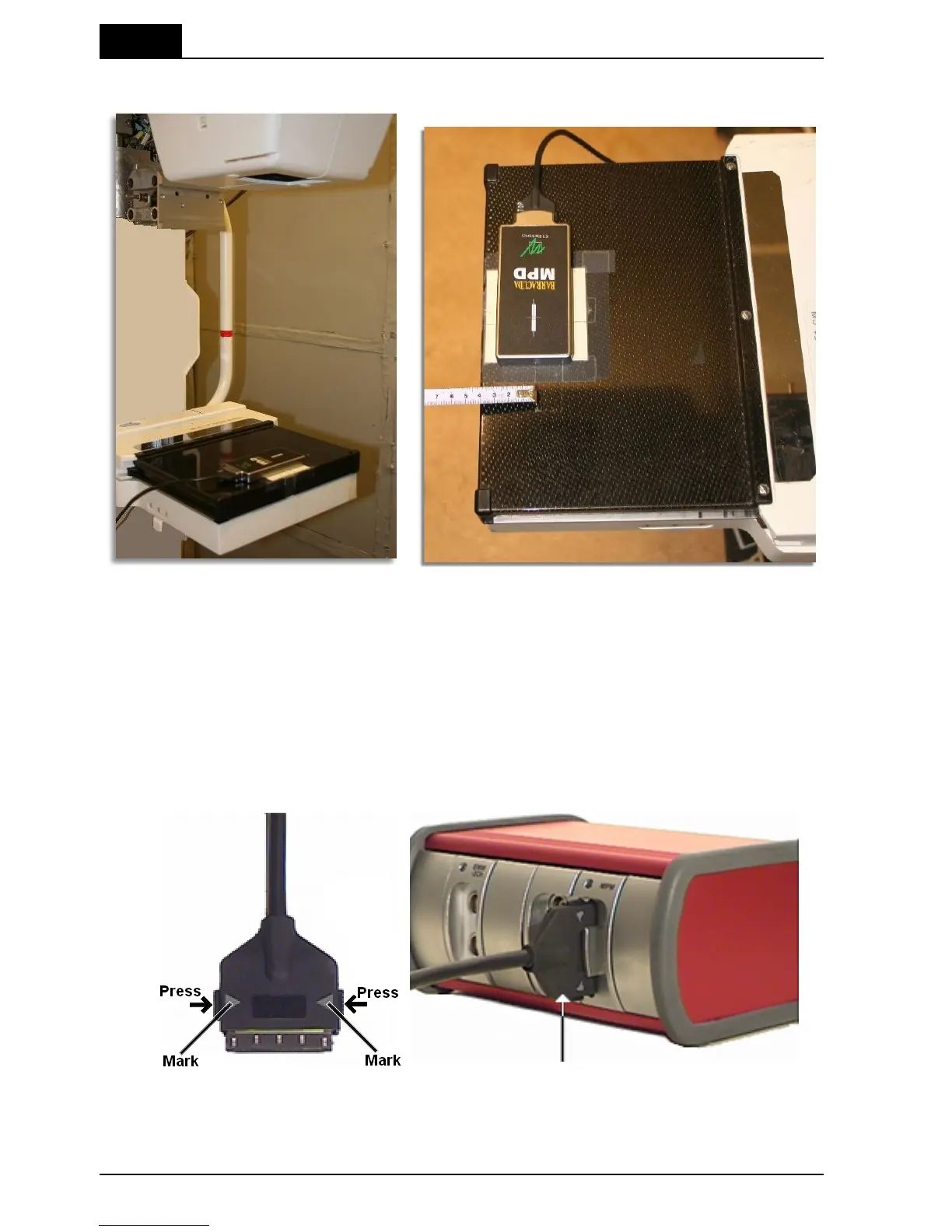

MPD Cable with connector
3.
Connect the other connector to the MPD. The connector has the text "TOP" on one
