3. Description of the QABrowser
Real-time Display and Waveforms
2012-10/4.3A
57
Barracuda & QABrowser Reference Manual

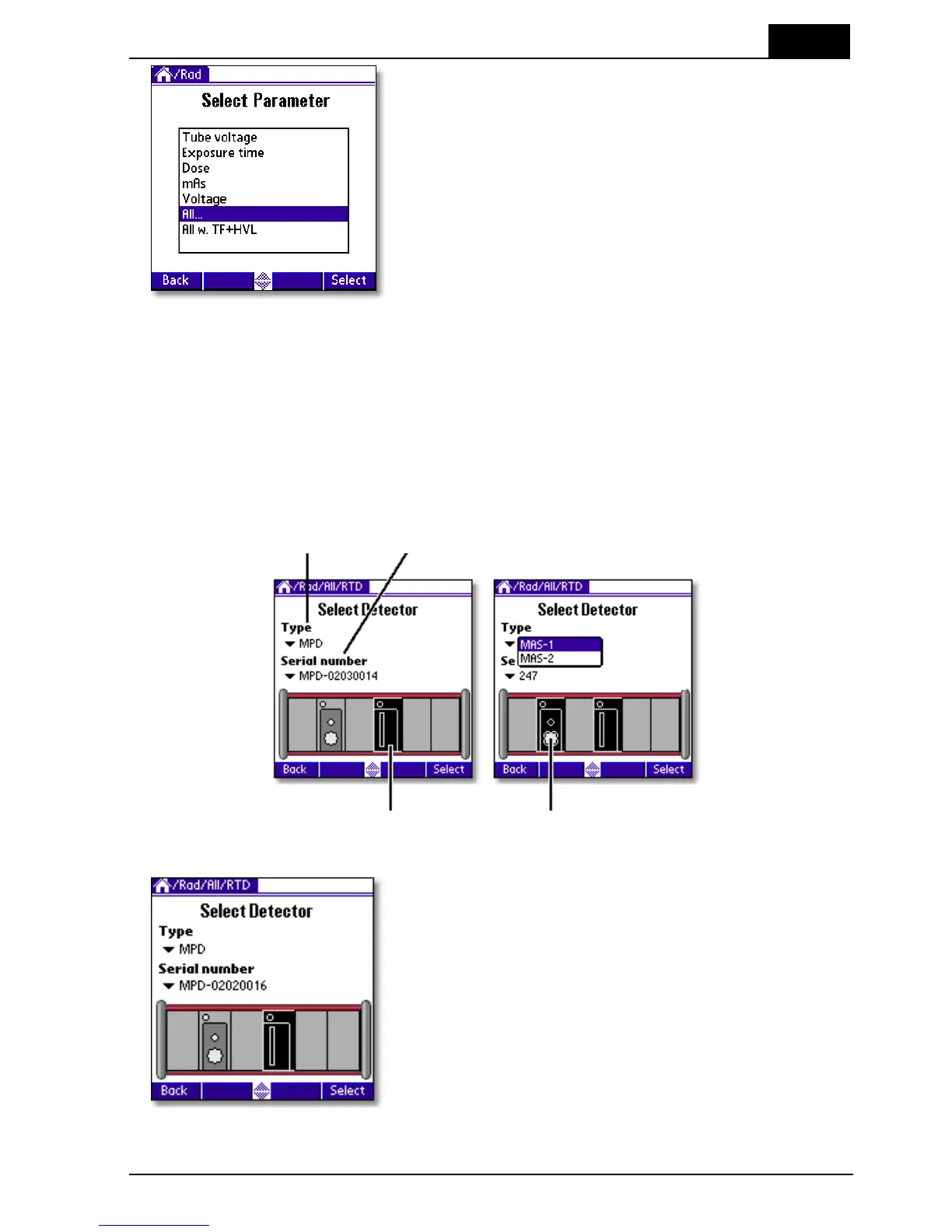

2. A list with all different parameters are shown. You
can select to measure a single parameter or all at
the same time. In this example select All.
Note that the parameters shown here, are the
ones that are available with the current
configuration of your system.
A graphical picture of the cabinet's back side, showing the modules, is displayed on
the Select Detector screen. You can tap the different modules to view and select the
detector you want to use for that module. For the MPM, only the MPD detector is
available. You can also select beam quality when applicable and serial number if you
have several detectors of the same type.
Shows available
detectors for
selected module
Shows available
serial numbers for the
selected detector type
Selected module (EMM) and
input to use is indicated
3A. The next step is to select what you want to
measure and what detector you want to use. The
actual configuration for your Barracuda is now
shown. If your Barracuda has a MAS-probe you
can now decide if you want to measure mAs or not.
The MPD detector is selected to measure kVp,
time, dose, and dose rate. If you want to measure
mAs, tap also the EMM (electrometer module).
If you do not want to measure mAs or if you do not have a mAs probe, tap Select and
To Next Page
