II-91
I
NDOOR
U
NITS

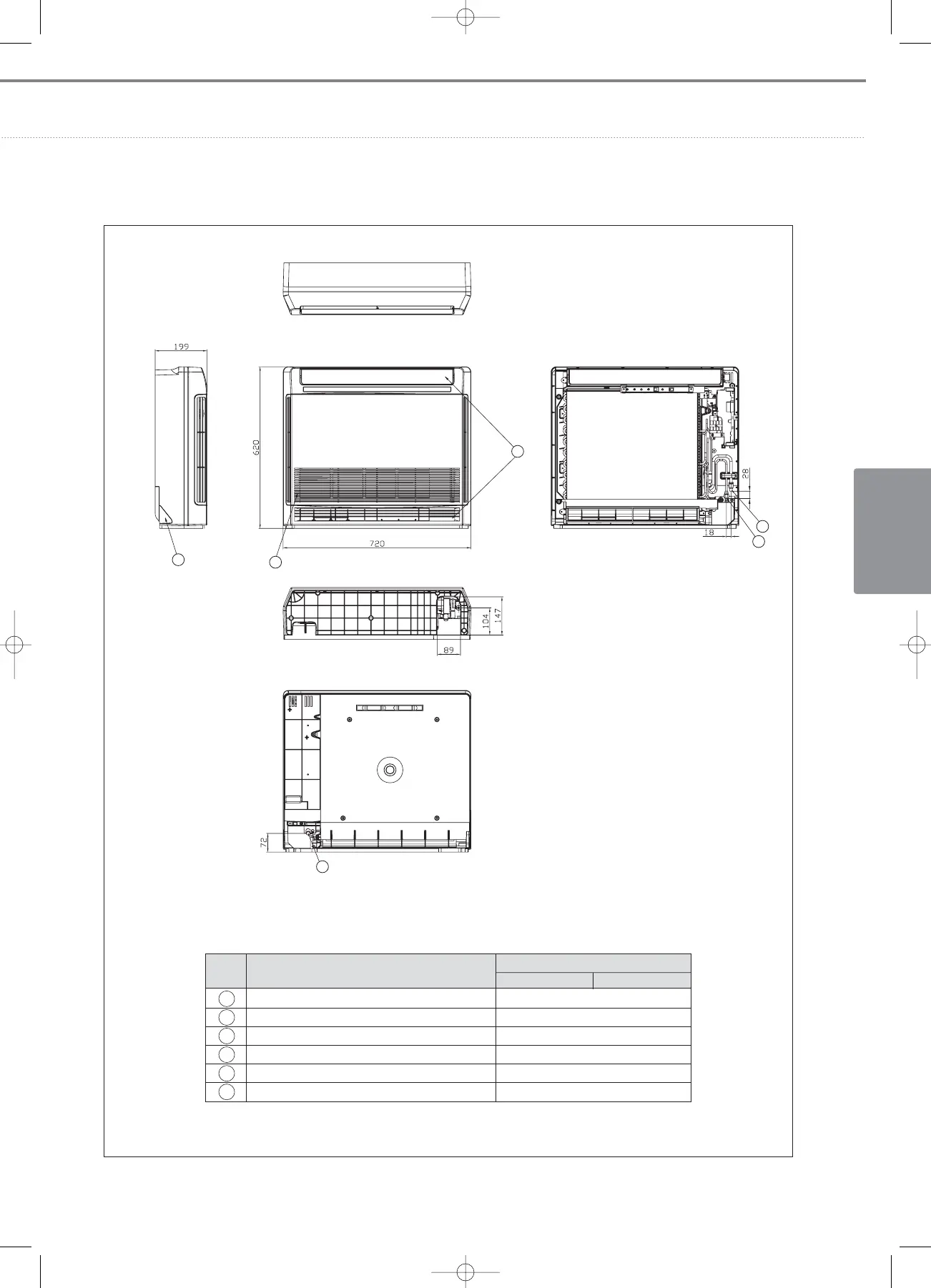

7-4. Dimensional drawing
1
2
3
6
4
5
Unit:mm
No. Name
Description
1 Liquid pipe connection Ø6.35 Flare
2 Gas pipe connection Ø12.70 Flare
3 Drain pipe connection ID 18 Hose
4 Conduit for power supply & communication wiring -
5 Air inlet grille -
6 Air outlet louver -
2.8kW 3.6kW
chapter2_Indoor units(052~107) 3/14/08 22:15 Page 91
