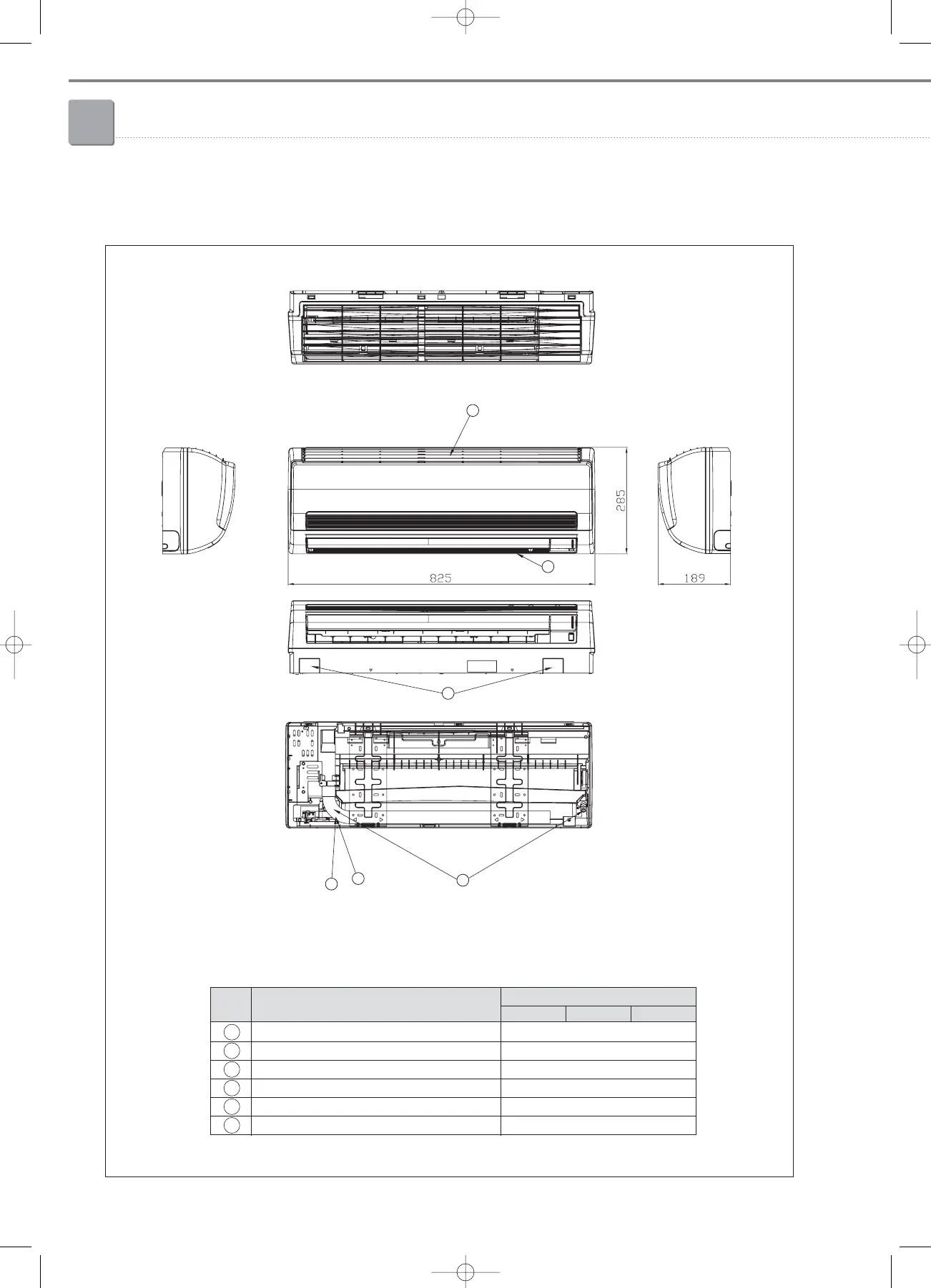

10-4. Dimensional drawing
1) AVXWNH022/028/036E✴
1
2
3
4
5
6
Unit:mm
No. Name
Description
1 Liquid pipe connection Ø6.35 Flare
2 Gas pipe connection Ø12.70 Flare
3 Drain pipe connection ID 18 Hose
4 Conduit for power supply & communication wiring -
5 Air inlet grille -
6 Air outlet louver -
2.2kW 2.8kW 3.6kW
