II-125
I
NDOOR
U
NITS

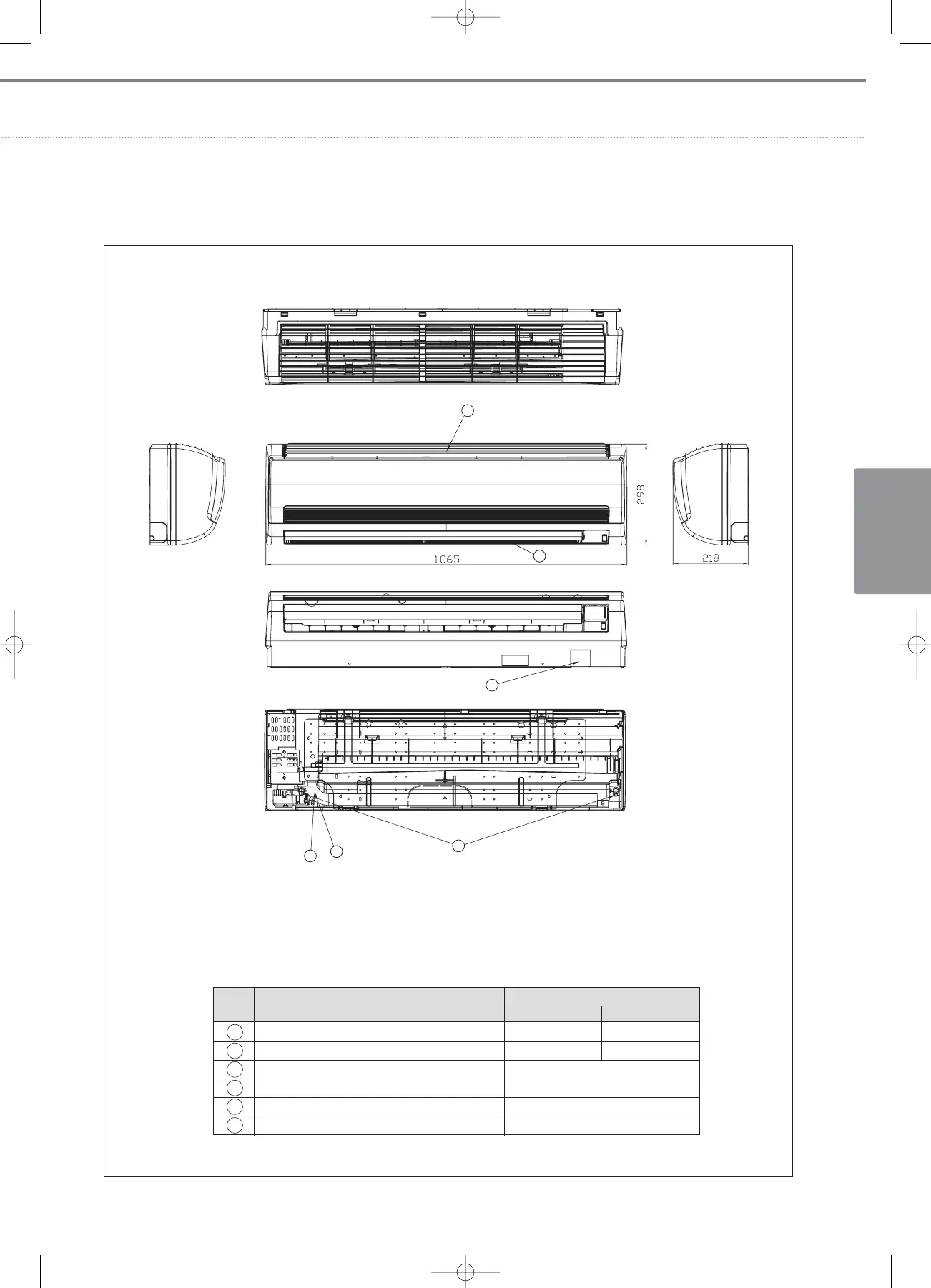

2) AVXWNH056/071E✴
1
2
3
4
5
6
Unit:mm
No. Name
Description
1 Liquid pipe connection
2 Gas pipe connection
3 Drain pipe connection ID 18 Hose
4 Conduit for power supply & communication wiring -
5 Air inlet grille -
6 Air outlet louver -
5.6kW 7.1kW
Ø6.35 Flare Ø9.52 Flare
Ø12.70 Flare Ø15.88 Flare
