Samsung DVM PLUS III User Manual

III-291
O
UTDOOR
U
NITS

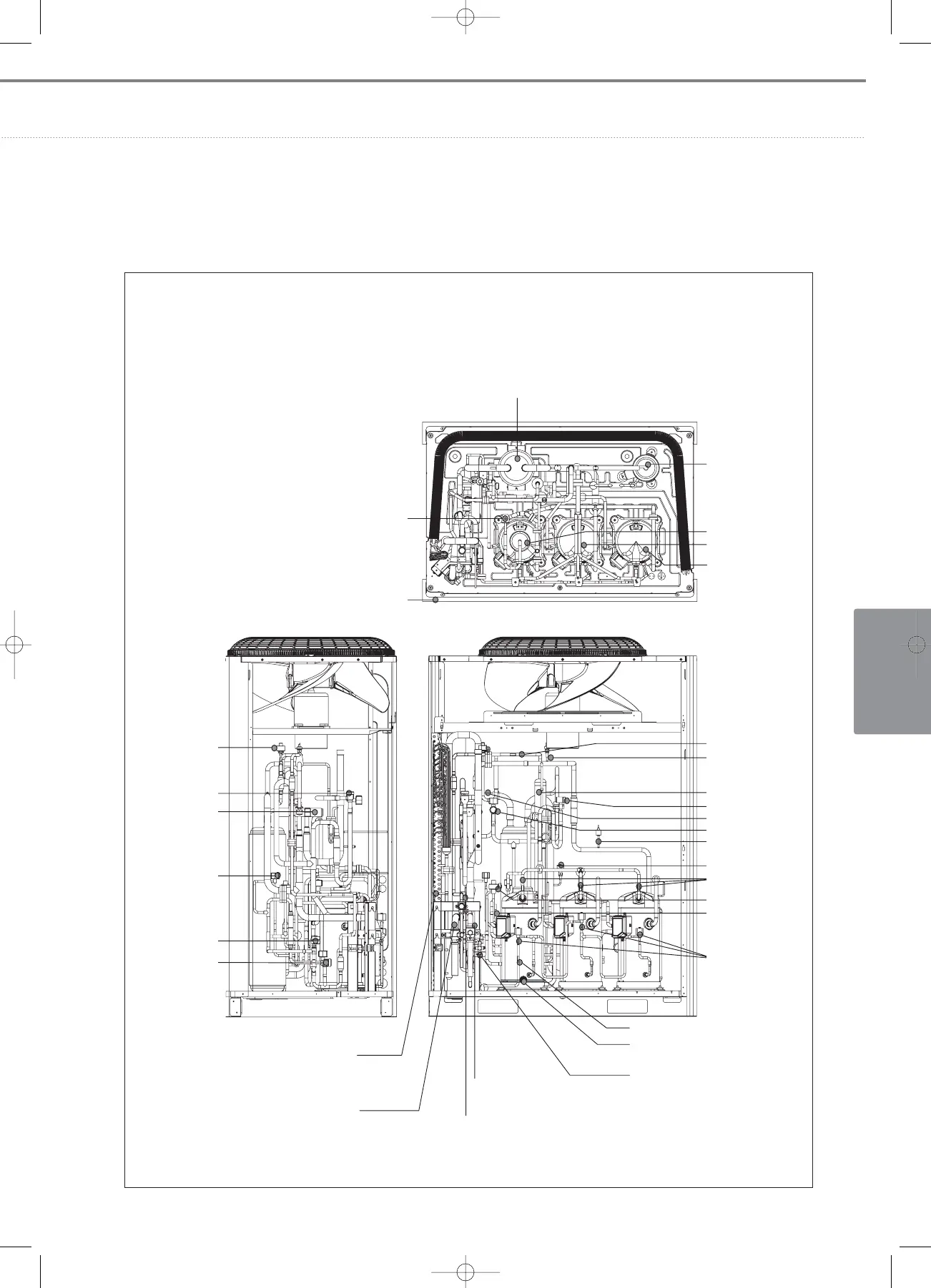

4) RVXVRT140GE / RVXVRT160GE
Oil separator
Accumulator
DVI compressor
FVI compressor 1
FVI compressor 2
Liquid tube sensor
Ambient air temp. sensor
PWM valve
High pressure sensor
Turbo intercooler
Hot gas bypass valve
Suction temp. sensor
Low pressure sensor
Discharge temp. sensor
Oil valve
Sump(Base)temp. sensor
Oil temp. sensor
Oil service valve
Liquid service valve
High pressure gas service valve
Low pressure gas service valve
Cond_out temp. sensor
EVI bypass valve
High pressure switch
EVI EEV
EVI_in temp.sensor
4way valve
Main cooling valve
HR EEV
Liquid bypass valve
Main EEV 1, 2
Outdoor EEV valve
