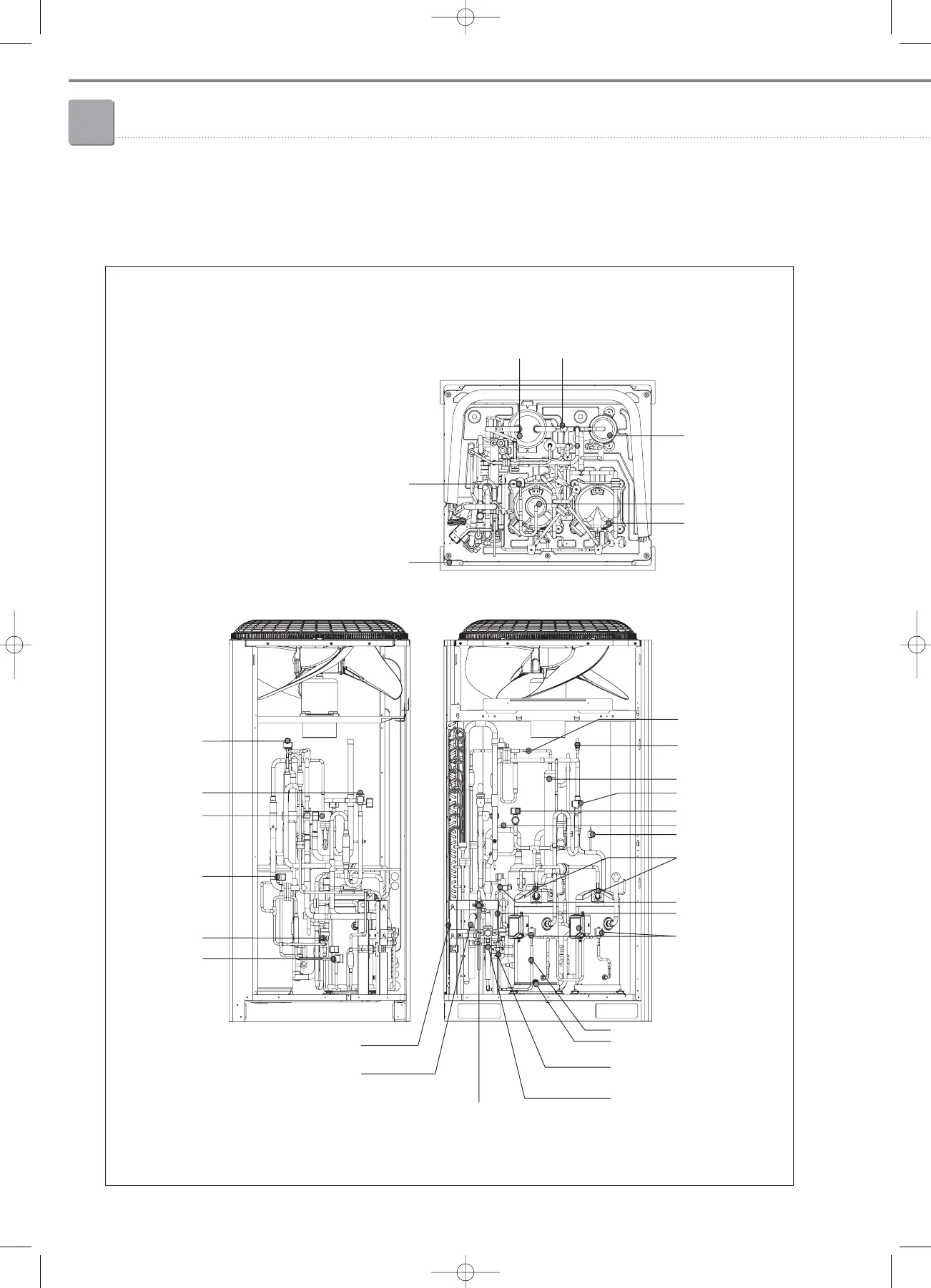

1-10. Cycle function parts
3) RVXVRT080GE / RVXRT100GE / RVXVRT120GE
Oil separator
Low pressure sensorAccumulator
DVI compressor
FVI compressor 1
Liquid tube sensor
4way valve
Main cooling valve
HR EEV
Ambient air temp. sensor
PWM valve
Liquid bypass valve
Main EEV
Outdoor EEV valve
High pressure sensor
Turbo intercooler
Hot gas bypass valve
EVI bypass valve
Suction temp. sensor
High pressure switch
EVI EEV
Discharge temp. sensor
EVI_in temp.sensor
Oil valve
Sump(Base)temp. sensor
Oil temp. sensor
Oil service valve
High pressure gas service valve
Liquid service valve
Low pressure gas service valve
Cond_out temp. sensor
