Control Systems
V-8
1
1
Individual control system
No. Name Description
Operation mode setting button Press the button to select an operation mode.
Temperature setting button Press the button to set the temperature by 1°C.
Filter replacement alarm reset button
Press the button to turn off the filter replacement alarm display LED on the
indoor panel.
Fan speed button
Press this button to select one of the fan speeds. (Auto, Low, Medium and
High.)
Air flow setting button Press the button to adjust the air flow direction.
On timer button
If the button is pressed once, it enters On operation reservation mode.
(Press button to increase time by 30 minutes.)
Off timer button
If the button is pressed once, it enters Off operation reservation mode.
(Press button to increase time by 30 minutes.)
On/Off button
Press this button to turn on an indoor unit. Press again to turn off the
indoor unit. During On/Off timer setting, it either completes or cancels the
timer setting.
Battery life display Indicates the battery life.
Off timer display Indicates that the Off timer setting is on.
On timer display Indicates that On timer setting is on.
Louver swing display Indicates that the louver is in swing mode.
Fan speed display Indicates the Fan speed settings ( Low, Medium, High, or Auto.)
Set temperature display Indicates the set temperature.
Operation mode display Indicates the selected operation mode.

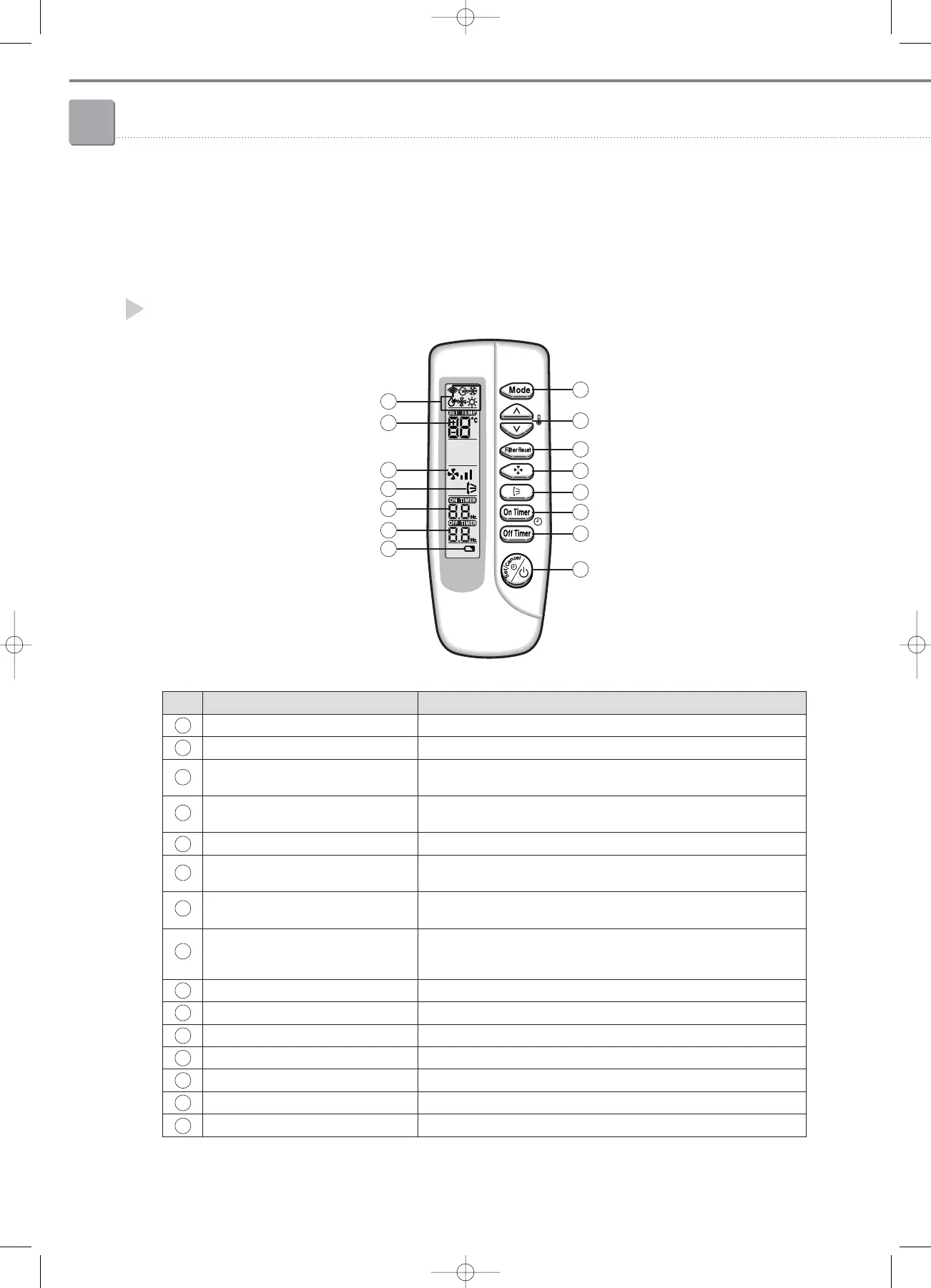

1-2. Wireless remote controller
2) Description of buttons and functions
MR-AH01
1
2
3
4
5
6
7
8
10
11
12
13
14
15
9
1
2
3
4
5
6
7
8
10
11
12
13
14
15
9
