Control Systems
V-16
1
1
Individual control system

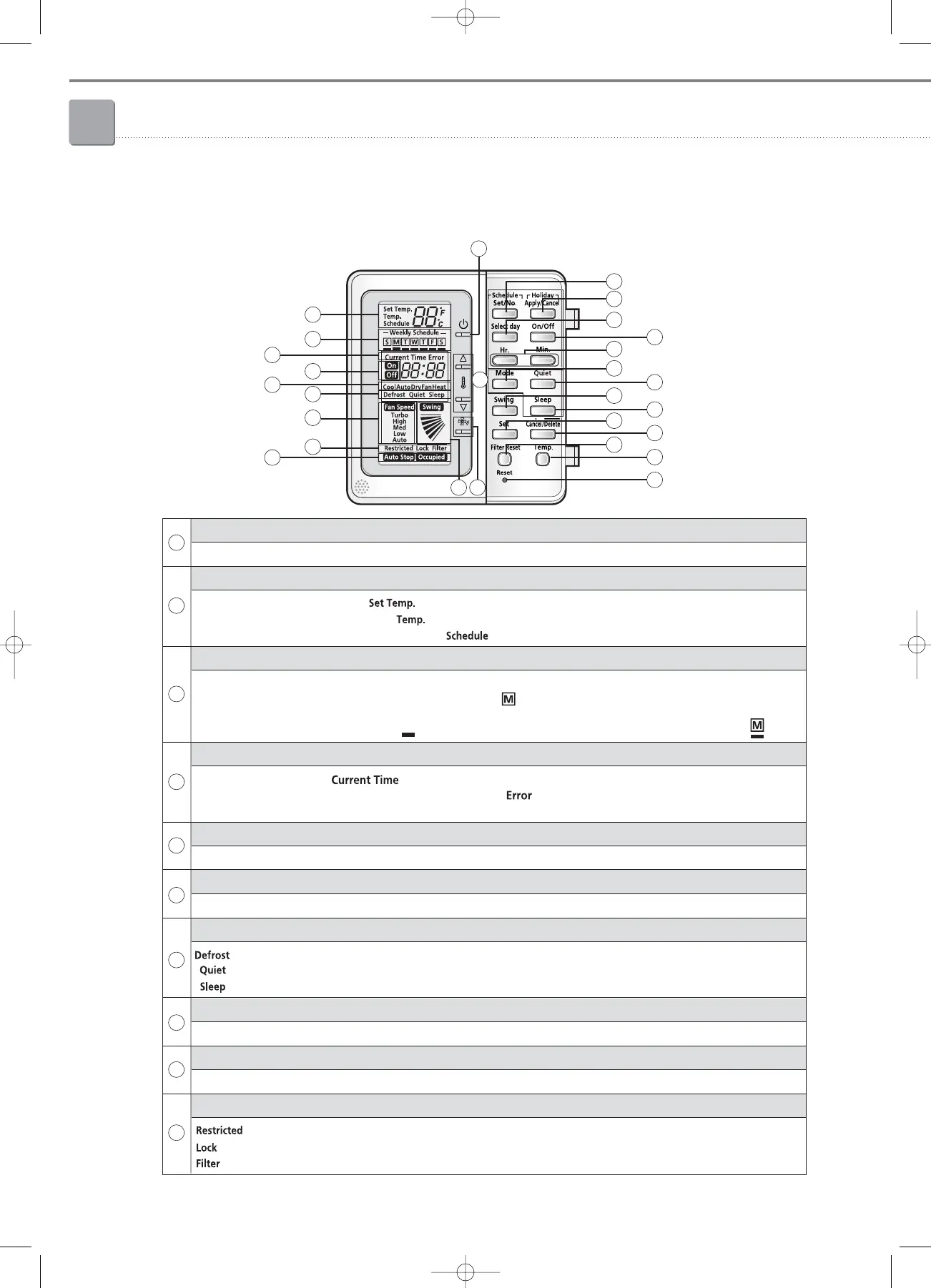

1-3. Wired remote controller
2) MWR-WS00
(3) Description of buttons and functions
Operation On/Off button
Press this button to turn on all connected indoor units. Press again to turn off all connected indoor units.
Setting temperature / indoor temperature / schedule display
• When operation is On, it displays and the set temperature of one of the connected indoor units.
• If “Temp button” is pressed, it displays and the room temperature.
• If Schedule Set/No button is pressed, it displays and the selected day’s schedule number.
Current day and schedule existence display
Displays existence of operation schedule setting for a week
• In normal mode: displays on the current day (ex: Monday ).
• Schedule setup mode: displays on the selected day .
• If there is a schedule setting for the day, displays under the day (ex: if there is a schedule setting for Monday ).
Current time and error display
• In normal mode: displays and the current time.
• If there is an indoor unit error: When an error occurs, displays and the error code.
• During schedule setup: turns off all and displays the scheduled time only.
On/Off schedule state display
Shows if the current day’s scheduled operation is On or Off state.
Operation mode display
Indicates the operation mode. (Cool, Auto, Dry, Fan, Heat).
Special function display 1
: Displayed when Defrost operation is started.
: Displayed when Quiet operation is selected.
: Displayed when Sleep operation is selected.
Fan speed setting display
Displays the fan speed setting ( Auto, Low, Med, High, or Turbo .)
Air flow direction setting display
Displays air flow direction setting.
Special function display 2
: Displayed when a function that is not supported by indoor unit is selected.
: Displayed when button lock function is set.
: Displayed when filter replacement time is reached.
1
2
3
4
5
6
7
8
10
9
1
2
3
5
7
8
12
10
4
6
11
9 13
14
15
16
17
20
18
19
22
21
24
23
26
27
25
05-1_control systems(002~045) 3/15/08 4:09 Page 16
