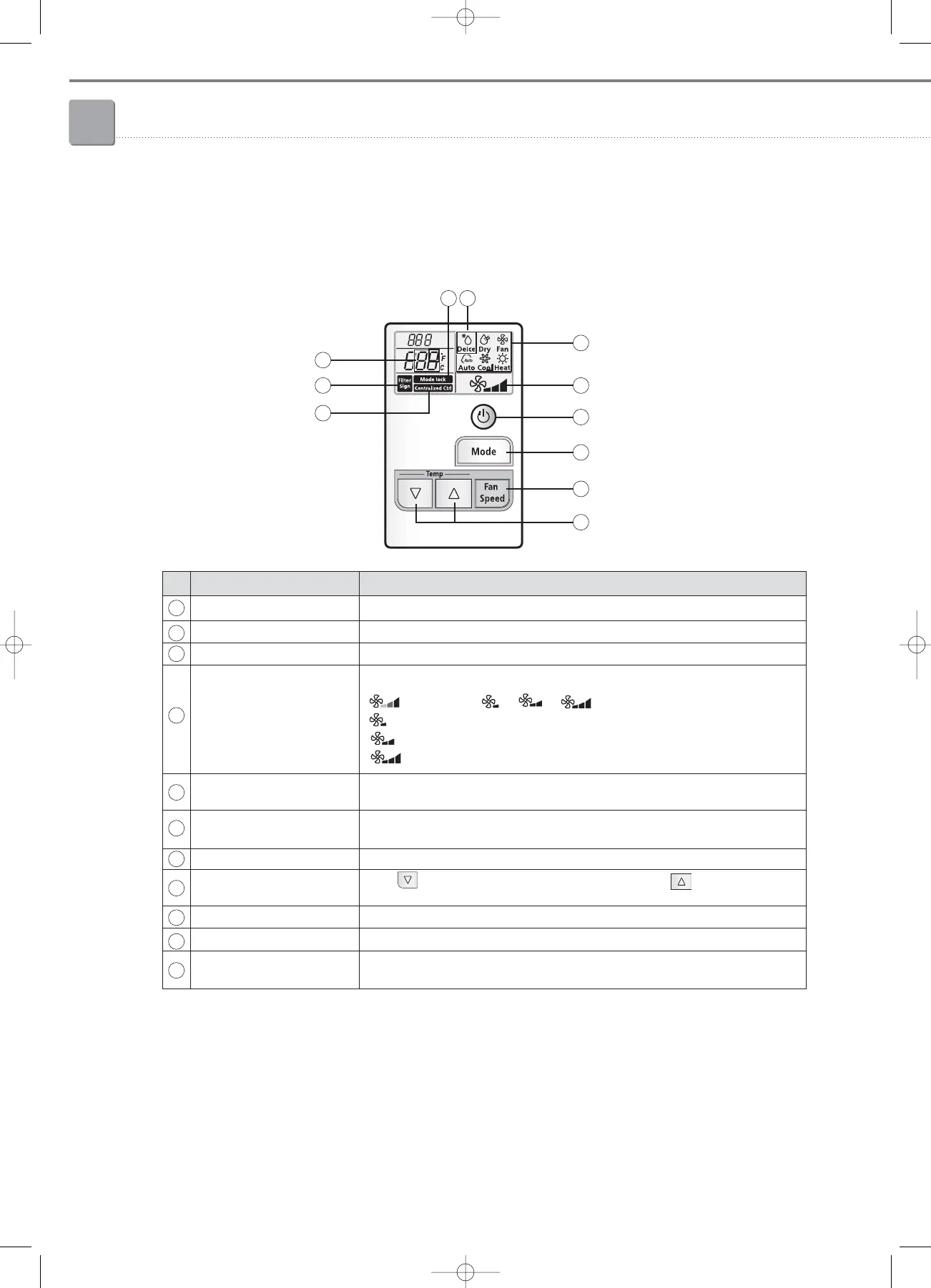

1-3. Wired remote controller
3) MWR-SH00
(3) Description of buttons and functions
Control Systems
V-24
1
1
Individual control system
No. Name Description
Set temperature display Indicates the set temperature of the indoor unit.
Defrost operation icon Displayed when Defrost operation is started.
Operation mode icon Displays the current operation mode.
Fan speed display
Displays the fan speed setting among Auto, Low, Medium, or High.
Operation On/Off button
Press this button to turn on all indoor units connected to a wired remote controller. Press
once again to turn off all the connected indoor units.
Operation mode setting button
Press this button to select the operation mode in the following order: Auto
➞
Cool
➞
Dry
➞
Fan
➞
Heat
Fan speed button Press the button to select one fan speed from Auto, Low, Medium, or High.
Temperature setting button
Press button to decrease the set temperature by 1°. Press to increase the set
temperature by 1°.
Filter replacement notice display Indicates if the filter replacement time is reached.
Operation mode lock display Indicates that the operation mode lock function is set.
Central control display
Indicates that the remote controller prohibition option is set. (Only upper controller, such as the
Centralized controller, can control indoor unit)
3
4
6
7
8
5
9
1
11
1
2
3
4
5
6
7
8
10
11
9
210
Auto(rotated :
➟ ➟
)
Low
Medium
High
