Individual control system
1-3. Wired remote controller
3) MWR-SH00
(5) Installation

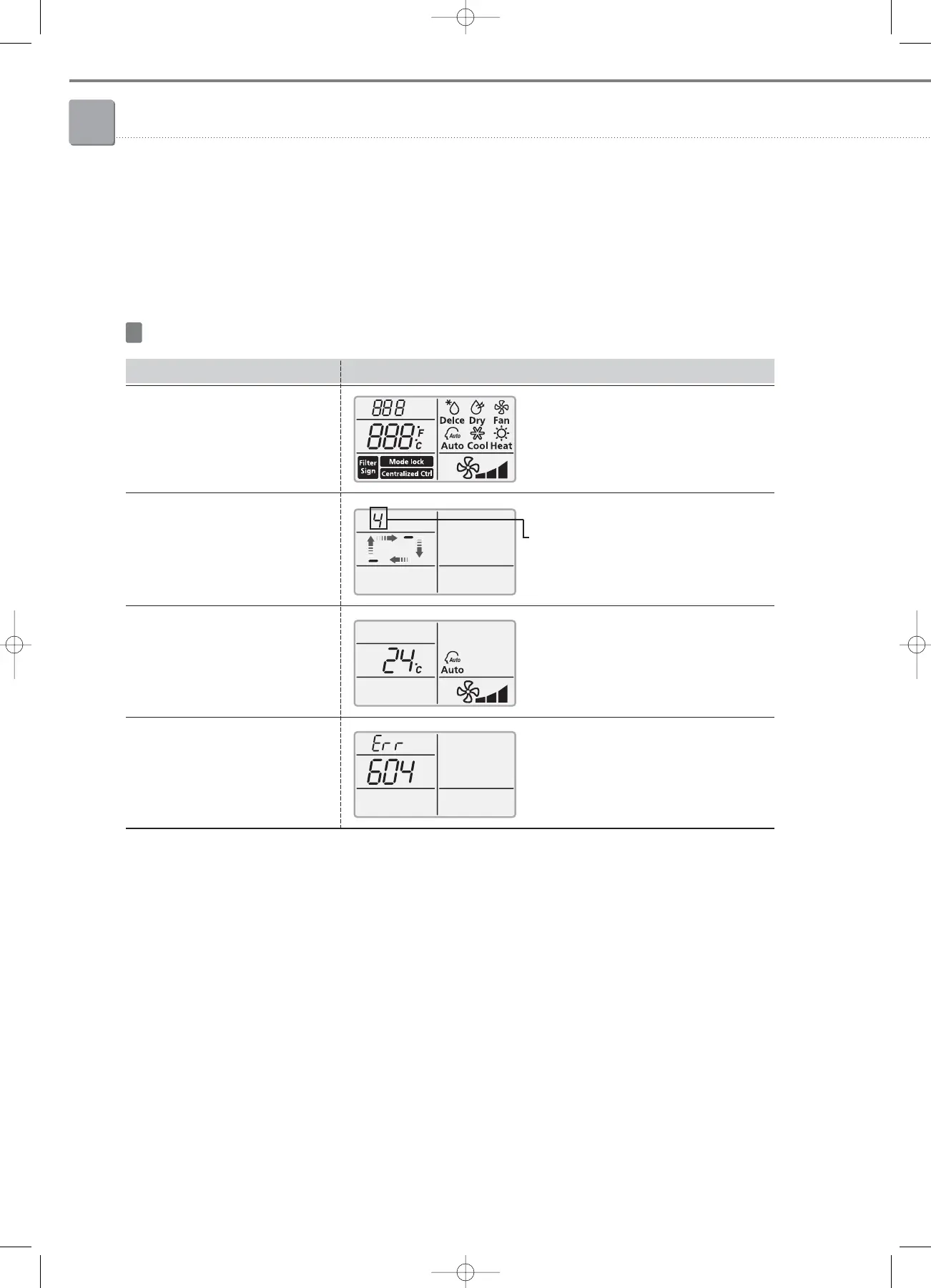

Operation Display
Power input
Indoor unit Tracking
Normal connection of indoor unit
Communication error
LCD is turned on for about 1second,
all segments are lit.
Temperature display indicates Tracking is under way.
When communication with indoor units is made it
displays the total number of indoor units connected with
the wired remote controller (ex: if 4 indoor units are
connected).
Display the operation statue of the connected indoor
units.
Error 604 display. (Communication error between the
wired remote controller and an indoor unit).
After checking the communication line wiring between
the indoor unit and the wired remote controller, reset the
power of wired remote controller.
Operation checking
