Control Systems
V-60
2
2
Centralized control system
Main:0
RMC:3
Main:1
RMC:4
Main:2
RMC:5

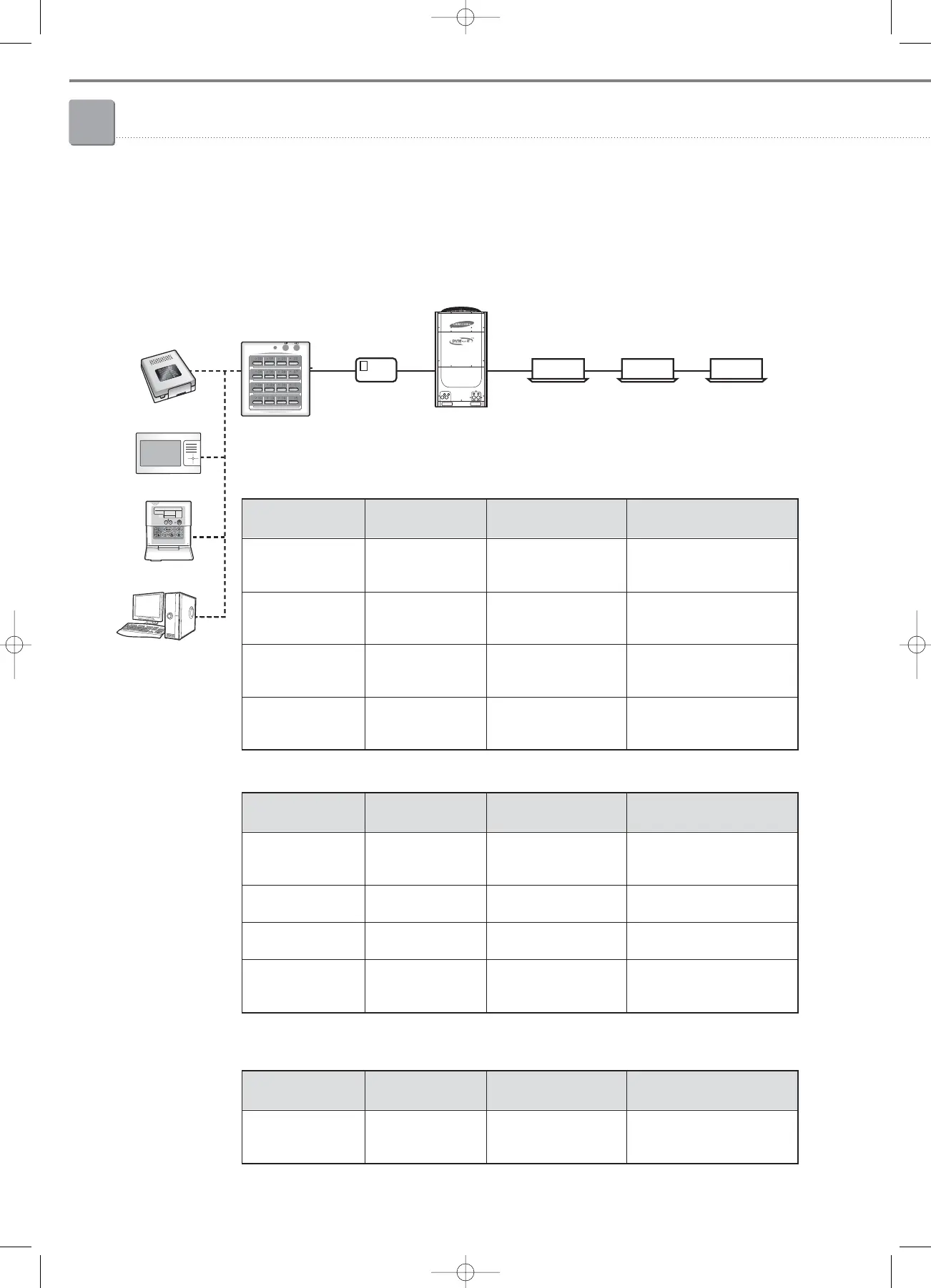

2-2. Centralized controller (MCM-A202A)
8) Option switch K3 – Tracking mode setting
DMS
S-NET mini
Function controller
S-NET
II Plus
Ô Interface with DMS and S-NET mini – Set K4 to the OFF position
DMS
S-NET mini
Centralized controller
( K4=OFF)
DMS, S-NET mini
operation
Centralized controller
operation
Group mode
K3=OFF
Group mode
Control/monitoring by
RMC 3,4,5
• On/Off control by RMC 3,4,5
• Indoor unit LED display
• All ON LED display
Group mode
K3=ON
Room mode
Control/monitoring by
RMC 3,4,5
• Indoor unit control not allowed
• Indoor unit LED OFF
• All ON LED display
Room mode
K3=OFF
Group mode
Control/monitoring by
Main 0,1,2
• On/Off control by RMC 3,4,5
• Indoor unit LED display
• All ON LED display
Room mode
K3=ON
Room mode
Control/monitoring by
Main 0,1,2
• Indoor unit control not allowed
• Indoor unit LED OFF
• All ON LED display
Ô Interface with S-NET II Plus – Set K4 to the ON position
S-NET II Plus
Centralized controller
( K4=ON)
S-NET II Plus
operation
Centralized controller
operation
Group mode
K3=OFF
Group mode
Control/monitoring by
RMC 3,4,5
• On/Off control by RMC 3,4,5
• Indoor unit LED display
• All ON LED display
Group mode
K3=ON
Room mode
Control/monitoring by
RMC 3,4,5
• Tracking mode setting error
• LED 4,5,6,7
➔
Rotating display
Room mode
K3=OFF
Group mode
Control/monitoring by
Main 0,1,2
• Tracking mode setting error
• LED 0,1,2,3
➔
Rotating display
Room mode
K3=ON
Room mode
Control/monitoring by
Main 0,1,2
• Indoor unit control not allowed
• Indoor unit LED OFF
• All ON LED display
Ô Interface with function controller – Set K4 to the ON position
Function controller
Centralized controller
( K4=ON)
Function controller
operation
Centralized controller
operation
Group mode
K3=Not used
Control/monitoring by
RMC 3,4,5
• On/Off control by RMC 3,4,5
• Indoor unit LED display
• All ON LED display
Group mode – Indoor unit control/monitoring with the RMC address
Room mode - Indoor unit control/monitoring with the Main address
❈ Function controller controls indoor units based on their RMC address.
Room mode is not supported for interface with the function controller.
❈ S-NET II Plus does not support MIM-B13A interface.
