V-61
C
ONTROL
S
YSTEMS
Main:0
RMC:3
Main:1
RMC:4
Main:2
RMC:5

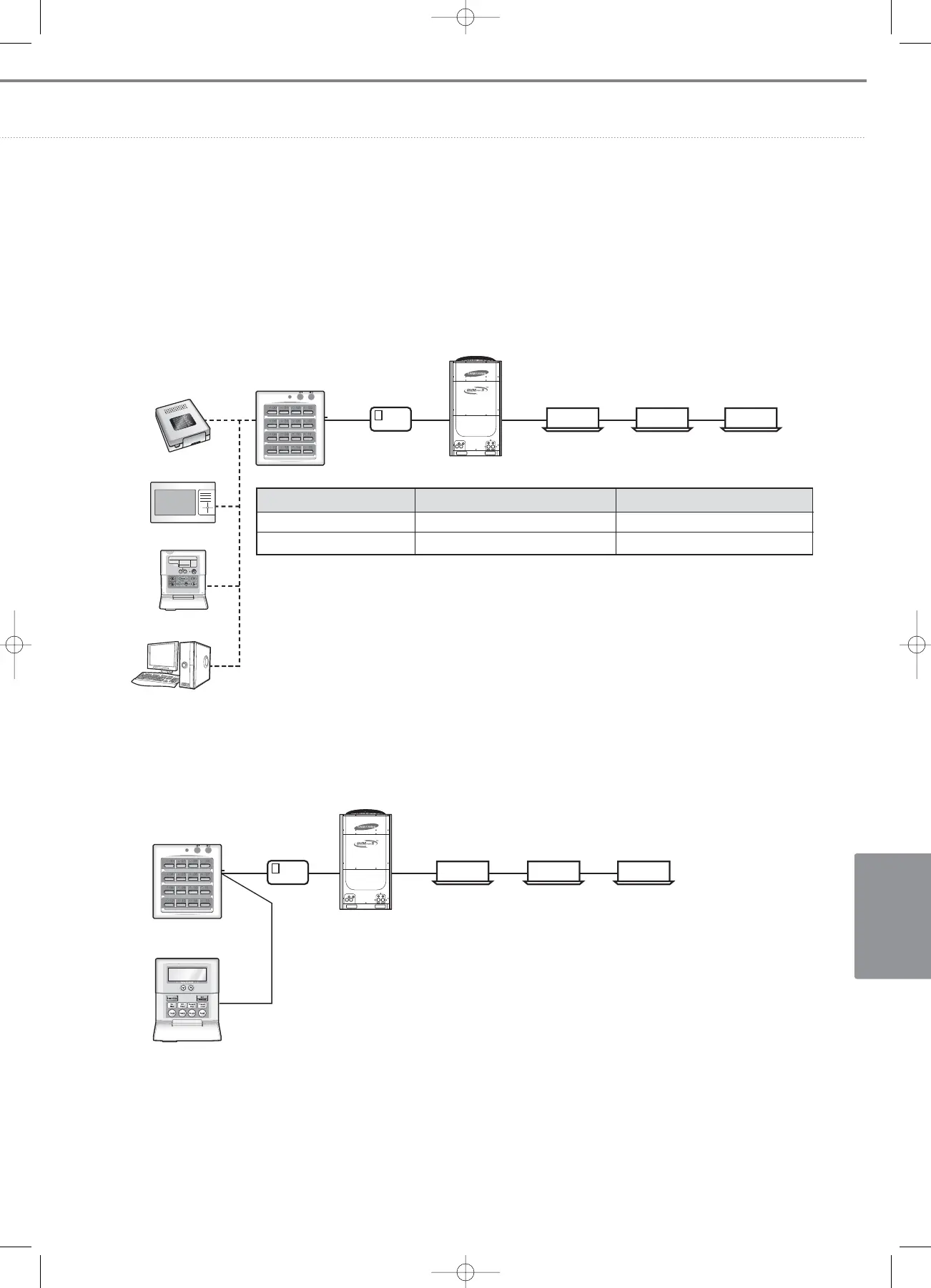

9) Option switch K4 – Upper-layer device compatibility
(1) Upper- layer controller interface
Upper-layer devices can be chosen for interface with the centralized controller based on the
option switch K4 setting.
DMS
S-NET mini
Set K4 to ON position
R1-R2
Function controller
S-NET
II Plus
(2) 7-Day scheduler interface
All the indoor units controlled by the centralized controller can be also managed by the 7-day scheduler
according to the schedule settings.
Upper-layer device Lower-layer device
DMS, S-NET mini
Interface module
S-NET II Plus, Function controller
Centralized controller K4
OFF
NN
NN
oo
oo
tt
tt
ee
ee
S-NET II Plus is not supported when MCM-A202A is connected to the interface module,
MIM-B13A.
ON
7-day scheduler, Interface module
