Centralized control system
D isplay
2-5. S-NET II Plus (MST-S1P)
(2) S-NET II Plus function description
Menu
Control tree

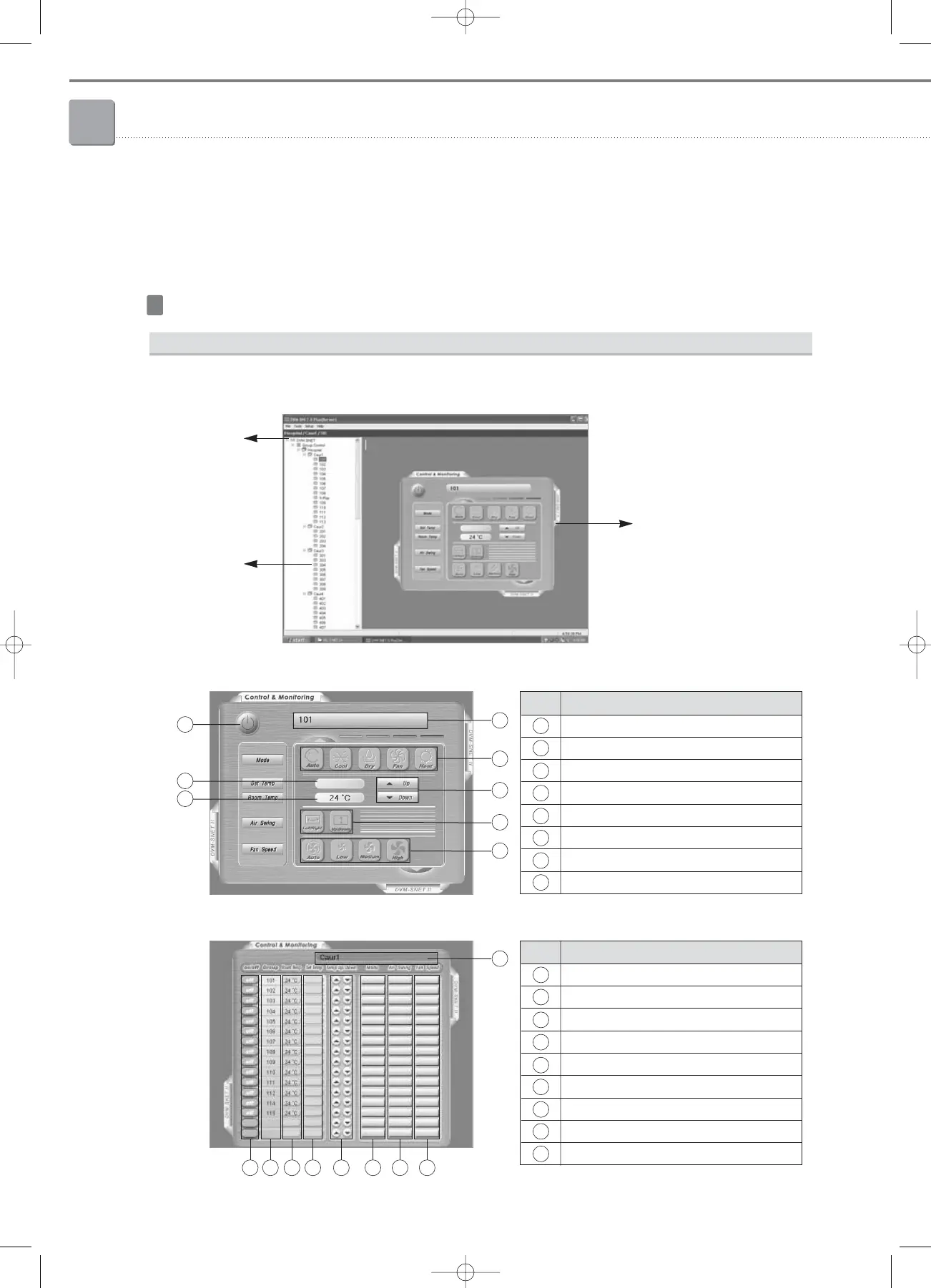

Control / Monitoring window
Main screen
➊ Control/Monitoring screen
Able to monitor and control the status of indoor units connected to S-NET II Plus.
Ô 1-room control : Select an individual group or individual indoor unit at the control tree.
No. Description
Indoor unit name display
Operation mode control
Temperature setting
Fan direction setting
Fan speed setting
Room temperature display
Set temperature display
ON / OFF control
1
2
3
4
5
6
7
8
8
1
2
3
4
5
7
6
Ô 16-room control: Select the relevant centralized controller at the control tree.
No. Description
16- group name display
Indoor unit ON/OFF control
Indoor unit name display
Room temperature display
Set temperature display
Temperature setting
Operation mode display
Fan direction
Fan speed
1
2
3
4
5
6
7
8
9
2 4 5 6 7 8 93
1
