V-162
Control Systems
5
5
External contact control system

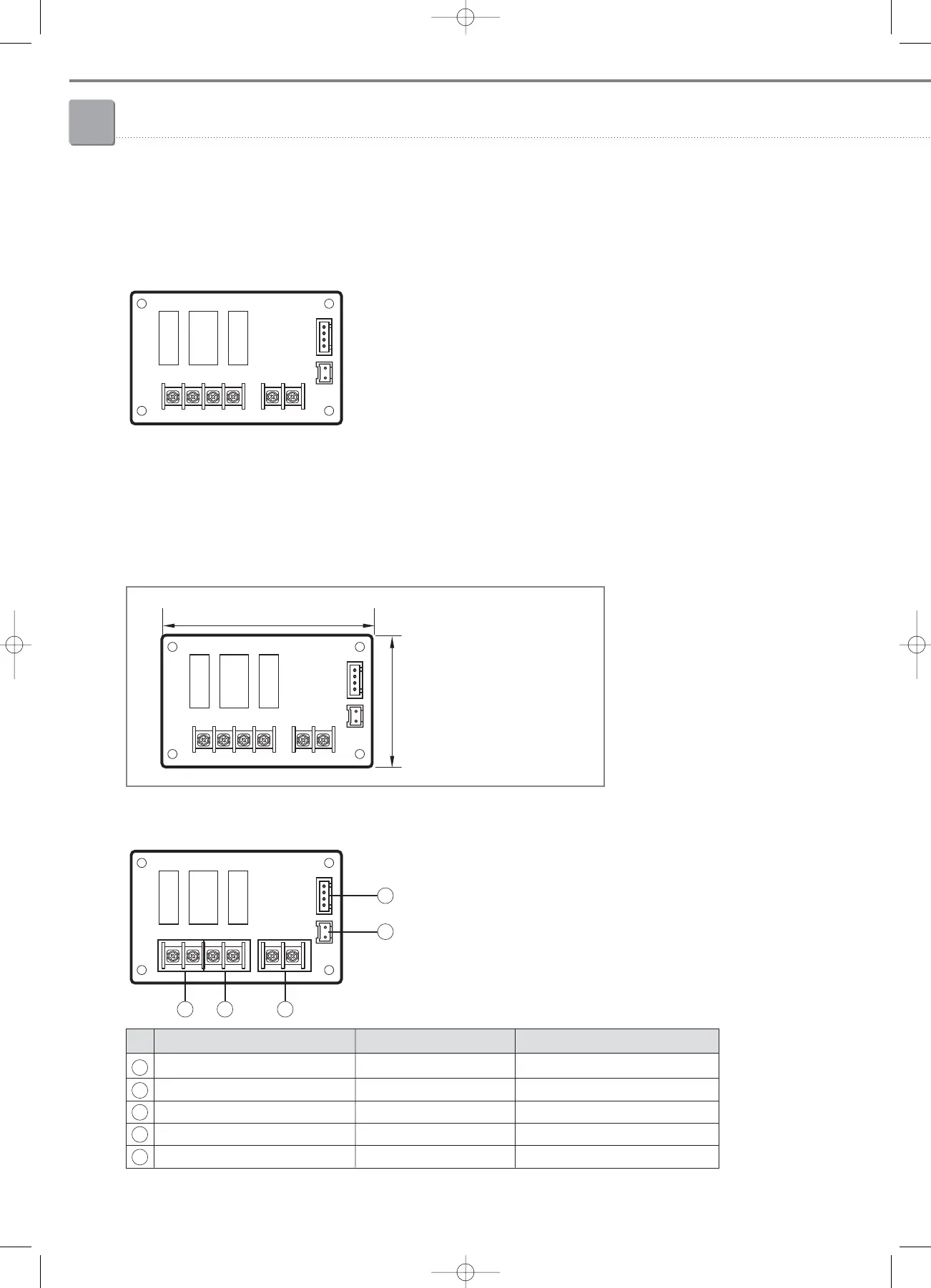

5-2. External contact interface module (MIM-B14)
1) Features
2) Dimensional drawing
3) Explanation of part names
Interlock DVM air-conditioner with external controller
- Indoor unit On/Off control by the external contact
(Usable equipment :Card-key,Timer,Sensor)
- Output the indoor unit thermo ON/OFF state
- Output the indoor unit error state
Unit : mm
No. Input/Output Contact rating Operation
Error state 220VAC, 3A Normal : Close, Error : Open
Indoor unit thermo ON/OFF state 220VAC, 3A Start : Close, Stop : Open
Operation signal input load 5VDC, 5mA
Connector for indoor unit
Connector for indoor unit
1
2
3
4
5
80
50
4
5
1 2 3
