V-170
Control Systems
6
6
Building management system
➊

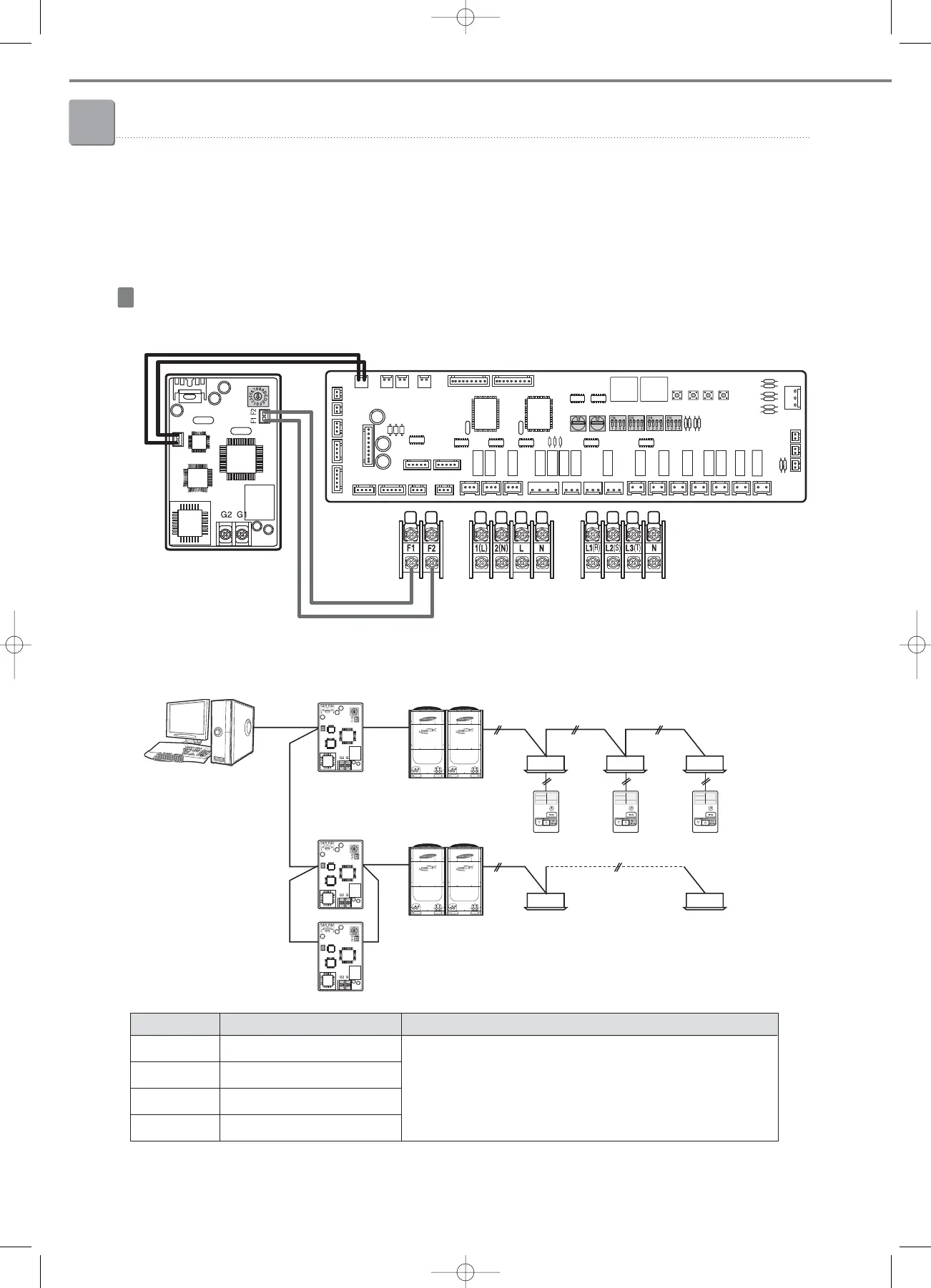

Connection between Lonworks interface module and outdoor unit. (example : DVM PLUS II)
❷
Connection between Lonworks interface module and Lonwork MMI
WIRING
6-1. Lonworks interface module (MIM-B07)
5) Installation
❈ Max. 4 Lonworks interface modules can be connected to
1
DVM PLUS II
outdoor unit.
Lonworks I/M
0
1
2
3
Indoor unit Main address
0~11
12~23
24~35
36~47
Remarks
- 1 Lonworks I/M can manage 12 indoor units.
- Lonworks I/M address must be set from 0.
(Default setting address is 0.)
- Up to 2 Lonworks I/Ms can be connected to one outdoor unit module.
- It is impossible to connect with DVM I/M. (ex.MIM-B04A, MIM-B13A)
F1/F2
F1/F2
F1/F2
FTT-10A
(Twisted pair)
Remote
controller
Outdoor unit
Outdoor unit
F1/F2
F1/F2
F3/F4
DC12V
