Installation

VI-42

MCU installations

2-3. Wiring connections

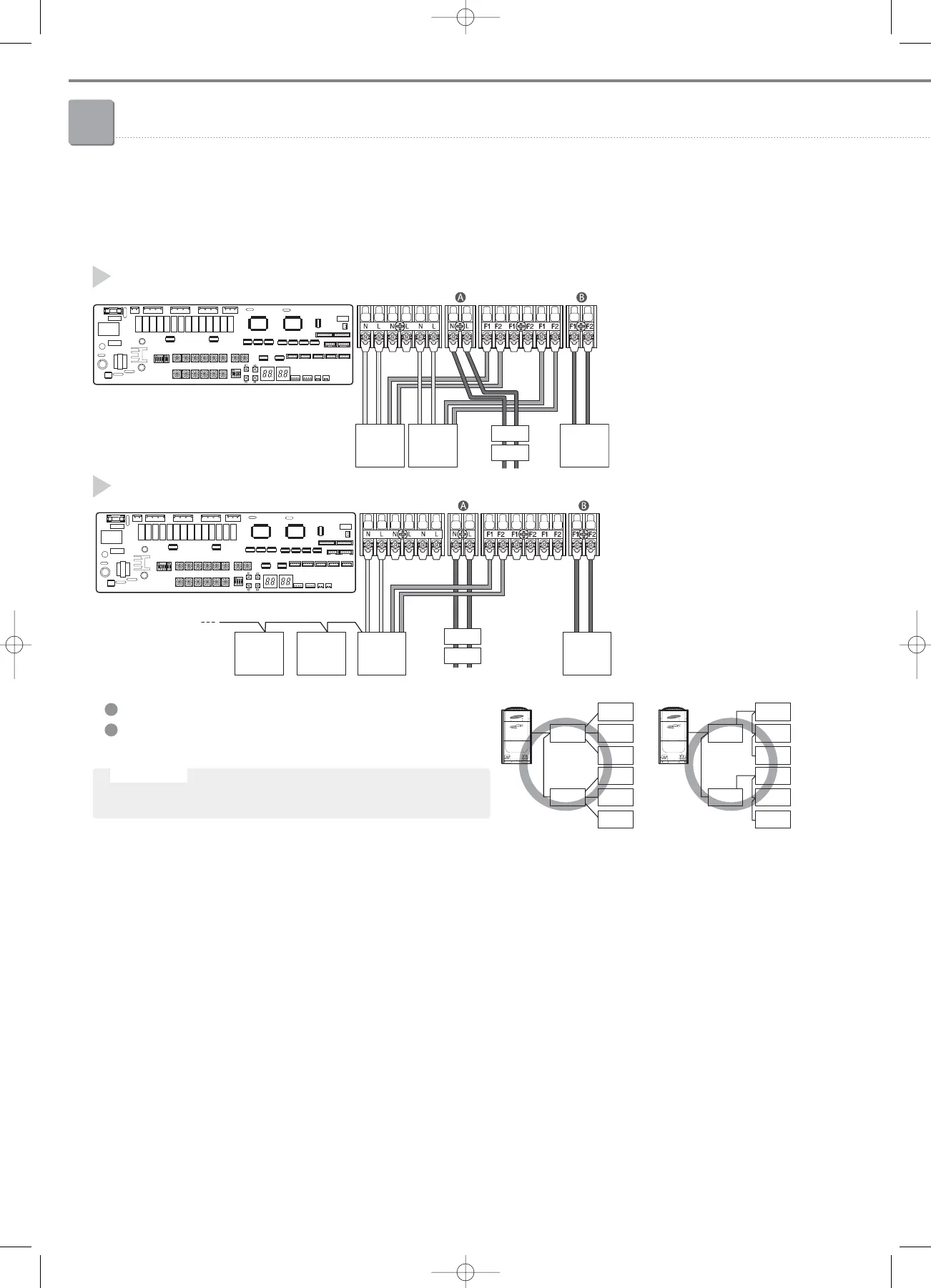

CASE 1

❈

A : Supply the 220-240V power to L, N of MCU separately with outdoor unit.

❈

B : Connect the communication cable from the outdoor unit to F1, F2 of MCU.

Indoor Unit

MCU

Indoor Unit

Indoor

unit

Indoor

unit

Outdoor

unit

220-240V

ELB

MCCB

CASE 2

Indoor

unit

Indoor

unit

Indoor

unit

Outdoor

unit

ELB

MCCB

Connect the power cable using the compressed ring terminal.
