Samsung SCL770 - Ass’y Case Right Removal

174 pages

To Next Page

To Previous Page

Samsung Electronics 3-5

Disassembly and Reassembly

3-1-5 Ass’y Case Right Removal

REMOVE THE CASE RIGHT

ASSEMBLY IN THE DIRECTION

OF ARROW.

REMOVE 2 SCREWS.

REMOVE 1 SCREW.

REMOVE

1 SCREW.

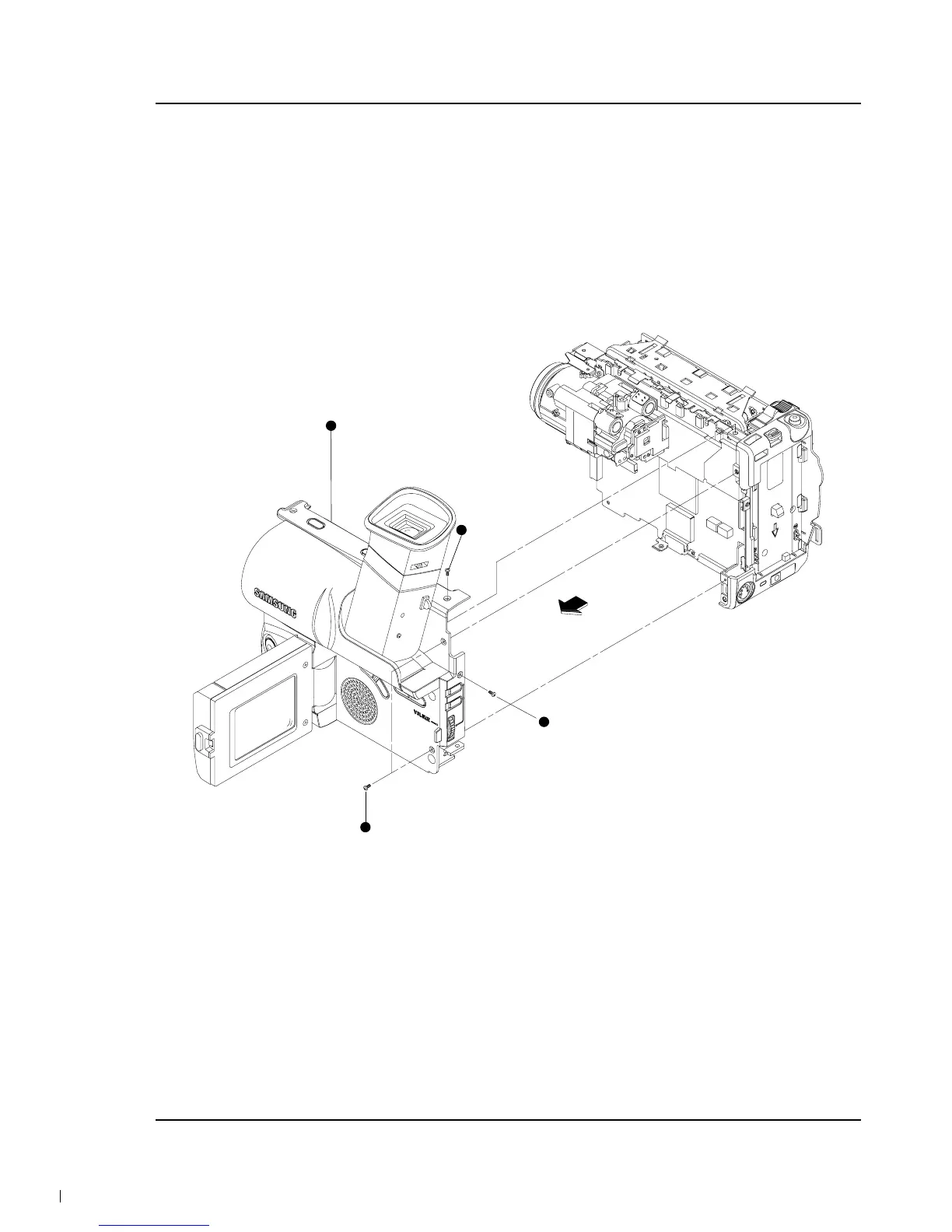

Fig. 3-5 Ass’y Case Right Removal
