Samsung Electronics3-8
Disassembly and Reassembly

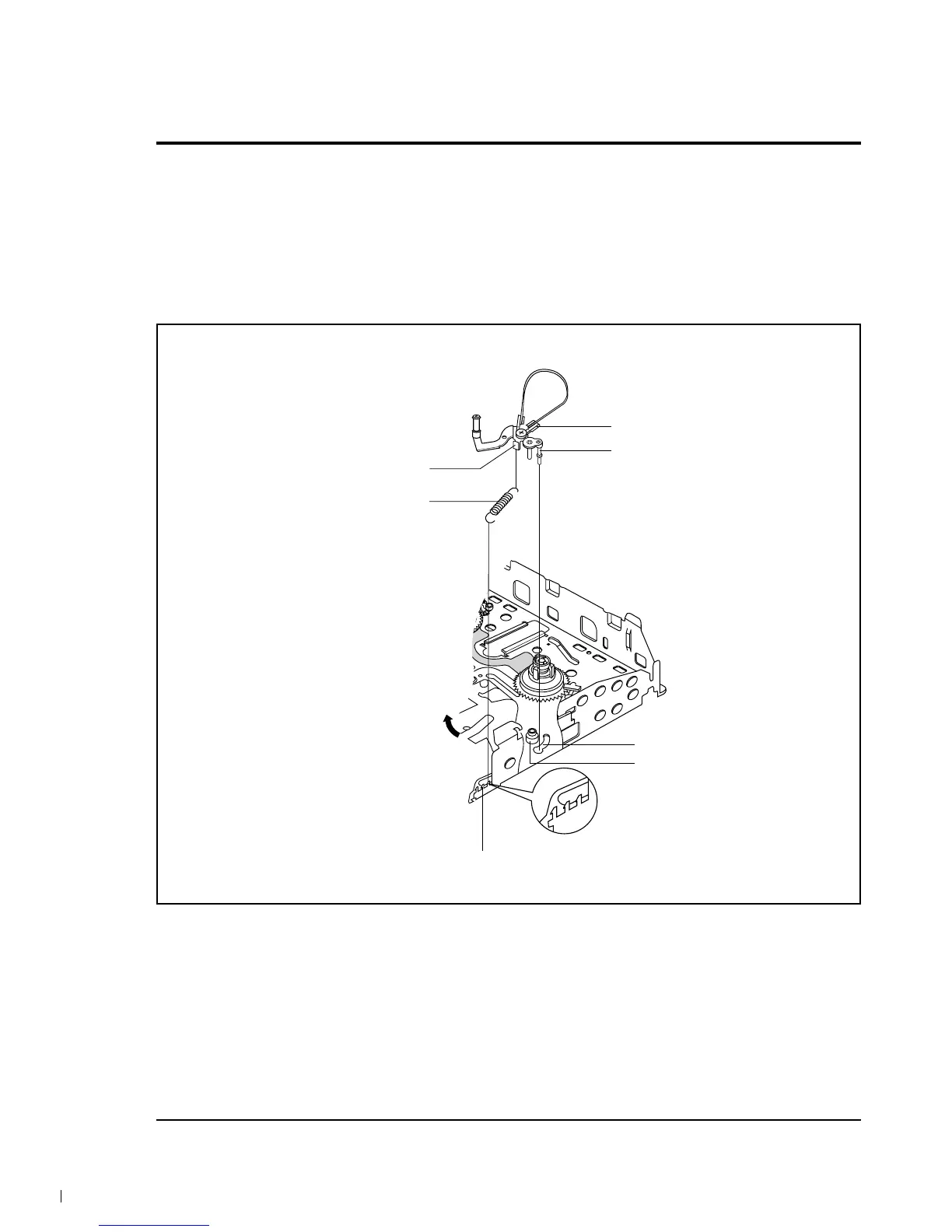

Fig. 3-8 Arm Tension
2 ARM TENSION ASS'Y
5 PIN ARM TENSION
6 SUB DECK GUIDE HOLE
7 BUSH
4 SPRING HOOK
A
3 SPRING HOOK
1 SPRING TENSION
3-8 Arm Tension
3-8-1 Disassembly
1. Push the Arm Tension Ass’y 2 (arrow “A”) and
then remove the Spring Tension 1 .
2. Push the Arm Tension Ass’y 2 (arrow “A”) to
the end, and then lift it (reverse of arrow “A”).
3-8-2 Reassembly
1. Insert the Pin Arm Tension 5 into the Sub-Deck
Guide Hole 6 .
2. Push the Arm Tension Ass’y 2 (arrow “A”) and
install it.
3. Insert the Spring Tension 1 into the Spring Hook
4 .
