Samsung SCL770 - Brake Sub S Ass’y (Brake Sub S, Lever Brake S)

Samsung Electronics1-6
Operation
Mode Brake Lever
Sub S Brake S
OFF ON OFF ON
EJECT
UNLOAD
SUB LOAD
STOP
PLAY

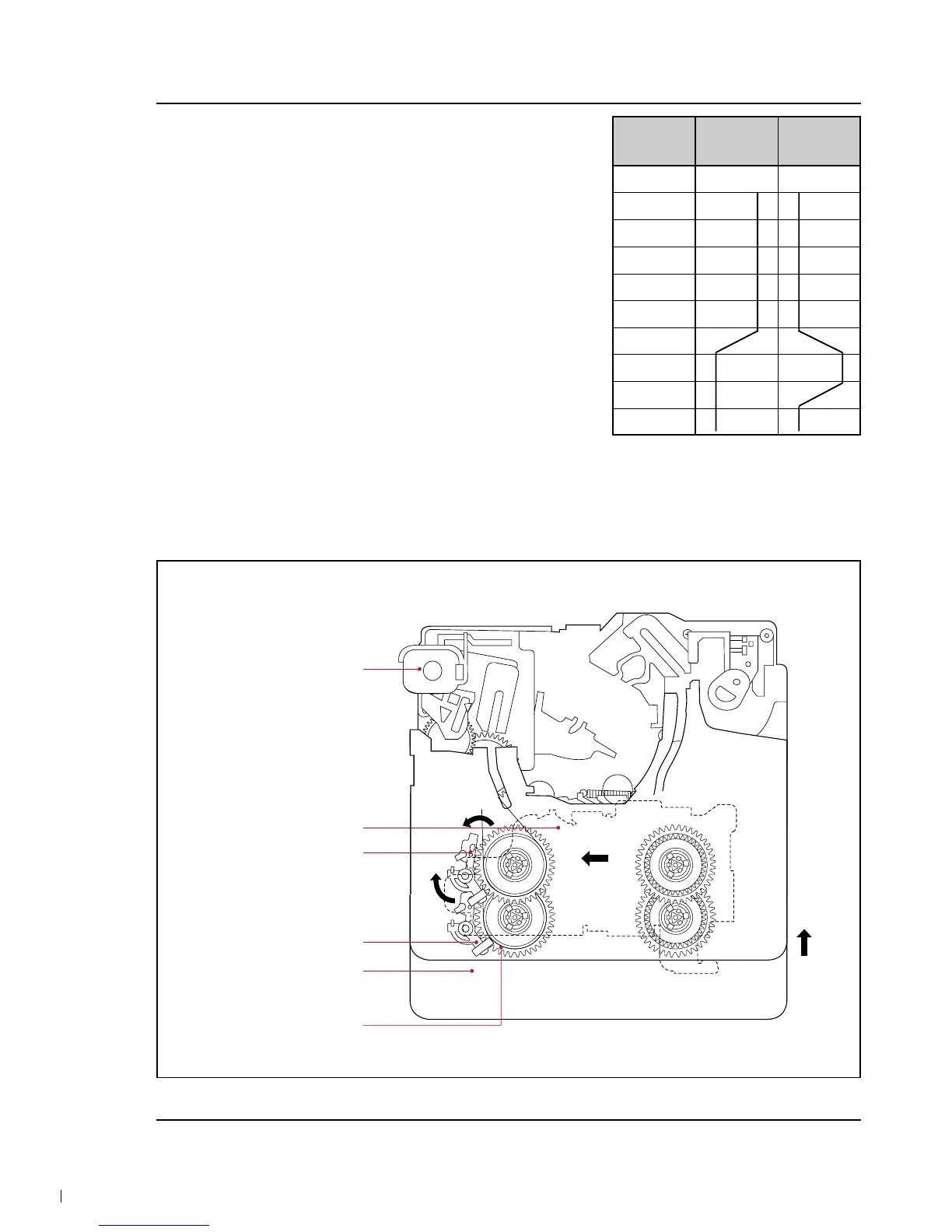

Fig. 1-6
MOTOR LOADING 1
SLIDER MAIN 3
LEVER BRAKE S 5
LEVER SUB S 4
CHASSIS SUB 2
REEL S 6
1-3-3 Brake Sub S Ass’y (Brake Sub S, Lever Brake S)
Motor Loading 1 rotates.
↓
Chassis Sub 2 slides.
↓
Slider Main 3 slides in direction of arrow.
↓
Lever Brake S 5 contacts with Reel S 6 by Slider Main 3
and Brake Sub S 4 released.
↓
Slider Main 3 slides in direction of arrow.
↓
Lever Brake S 5 released by Slider Main 3 .
