Samsung SCL770 - How to Load and Unload (Setting Mechanical Mode)

Samsung Electronics 3-1
3. Disassembly and Reassembly
3-1 How to Load and Unload (Setting Mechanical Mode)

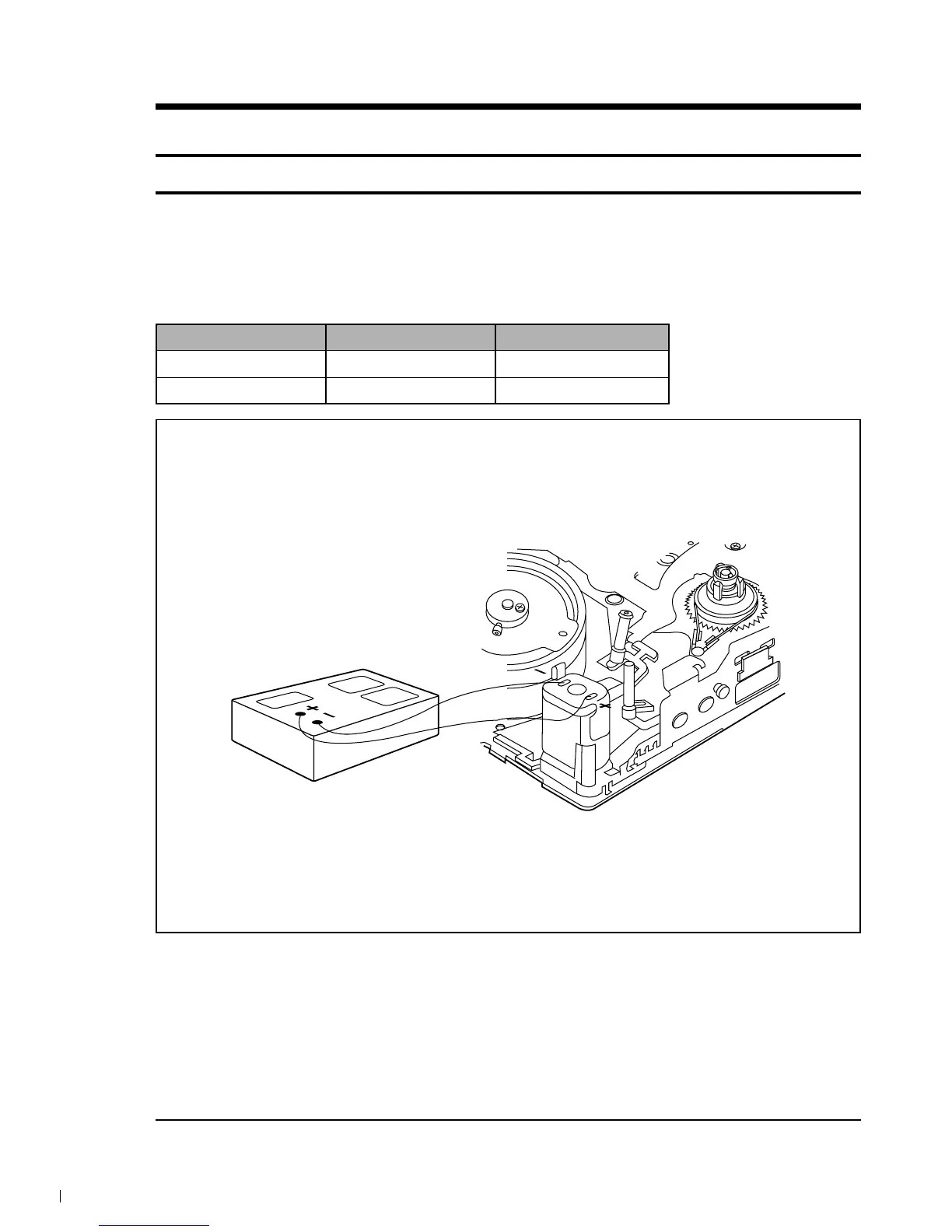

Fig. 3-1 Loading and Unloading
1. Set the power-supply output to approximately 3V.
2. Choose the polarity depending on whether loading or unloading. (See Table 3-1)
3. Supply the voltage to the Motor Loading.
Drum side Opposite side Movement of chassis
+ – Loading
– + Unloading
Table 3-1
