1-3-6 Arm Pinch Roller
Motor Loading 1 rotates.
↓
Chassis Sub 2 moves in direction of arrow.
↓
Arm Pinch Roller 3 rotates clockwise by Cam Curve of Slider Main 4 .
(Chassis Sub 2 stops at loading-complete position)
↓
Slider Main 4 moves in direction of arrow.
↓
Pinch Roller 6 contacts shaft of Motor Capstan 5 . ; PLAY Mode
↓
Motor Loading 1 rotates in reverse.
↓
Slider Main 4 moves to right.
↓
Pinch Roller 6 released from shaft of Motor Capstan 5 . ; Return to STOP
Samsung Electronics 1-9
Operation

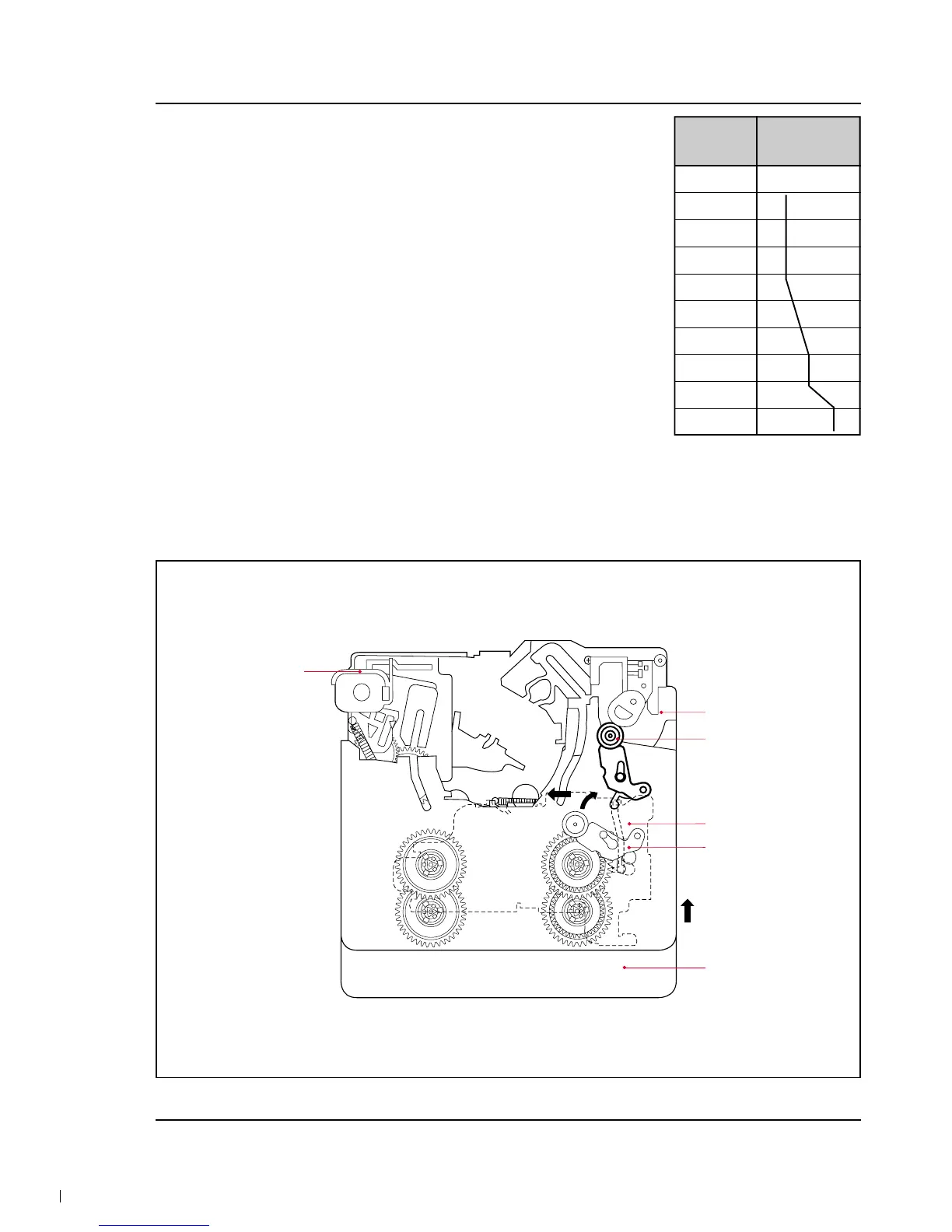

Fig. 1-9
MOTOR LOADING 1
5 MOTOR CAPSTAN
6 PINCH ROLLER
4 SLIDER MAIN
3 ARM PINCH ROLLER
2 CHASSIS SUB
Mode Arm
Pinch Roller
OFF ON
EJECT
UNLOAD
SUB LOAD
STOP
PLAY
