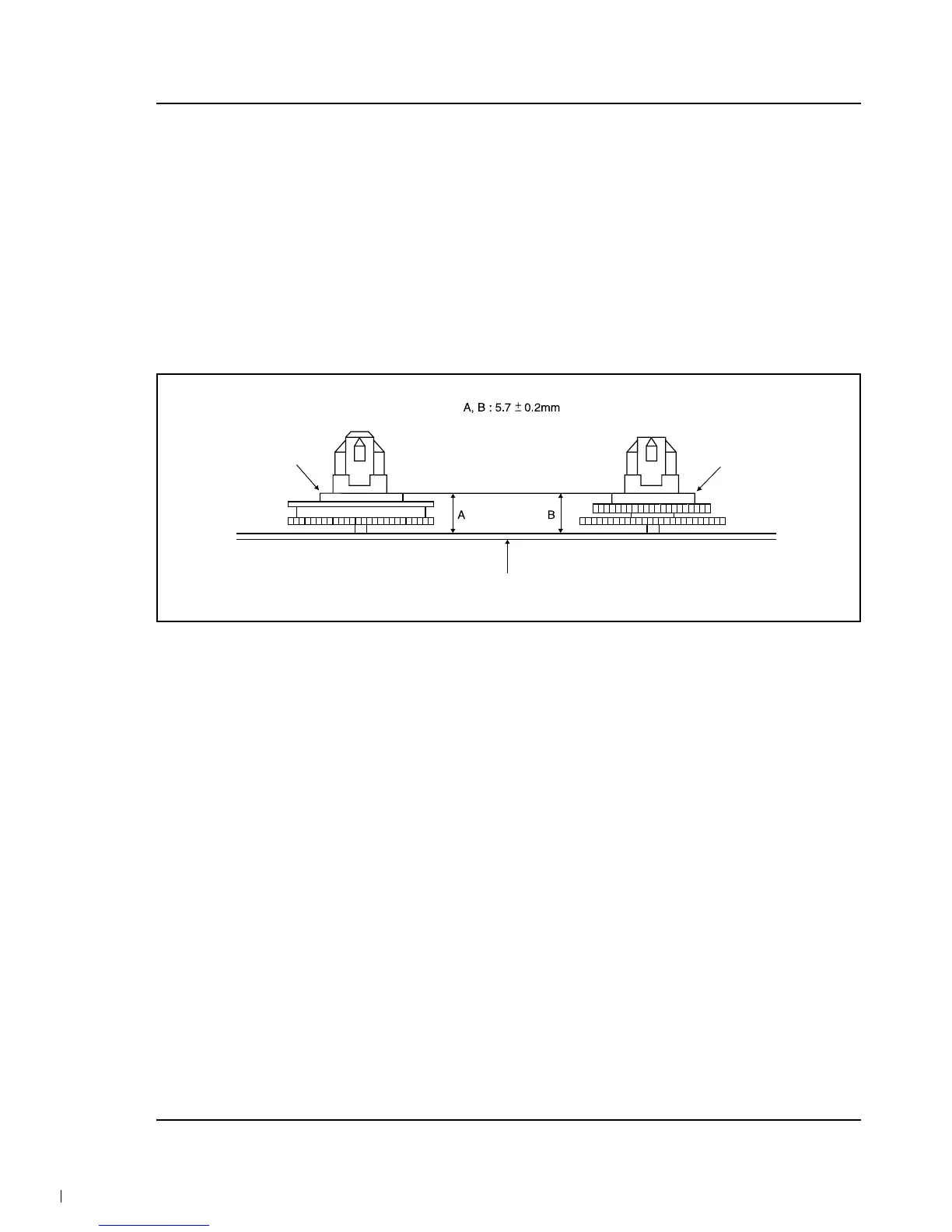

Fig. 2-7
2-4-4 Reel Table Height Check
2-4-4 (A) REMOVAL
1. Refer to 3-2 ; Remove the Housing Ass’y.
2. Refer to 3-4 ; Remove the Idler Ass’y.
2-4-4 (B) CHECK
1. Using the slide calipers, check the following
distances: The upper surface of the P.C.B Reel to
the Reel S table resting surface and the Reel T
table resting surface should each be 5.7 ± 0.2mm.
2-4-4 (c) MOUNTING
1. Refer to 3-4. Mount the Idler Ass’y.
2. Refer to 3-2. Mount the Housing Ass’y.
