Samsung SCL770 - Arm Pinch Roller and Arm Review Disassembly and Reassembly

3-7 Arm Pinch Roller and Arm Review
Samsung Electronics 3-7
Disassembly and Reassembly

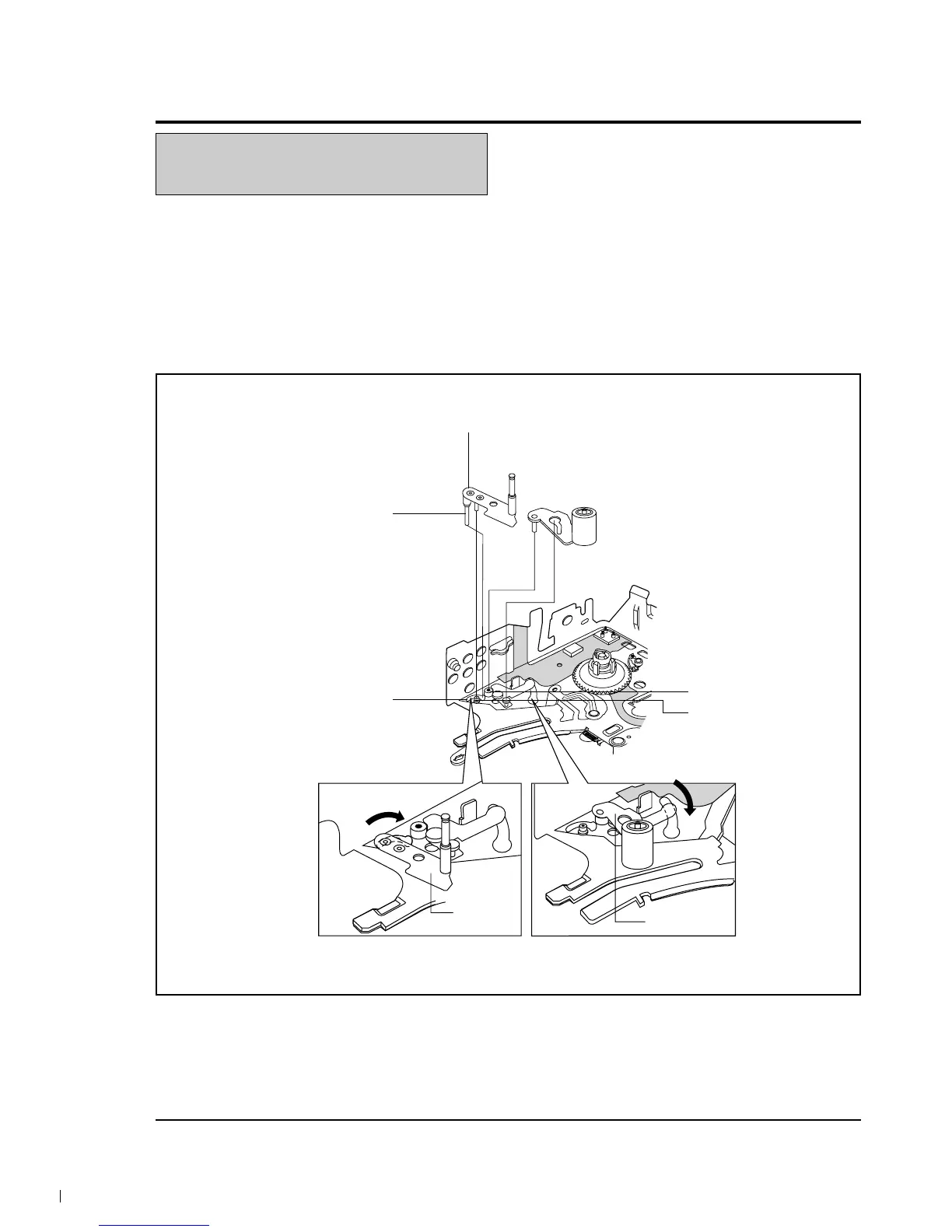

Fig. 3-7 Arm Pinch Roller and Arm Review
1 ARM REVIEW ASS'Y
2 ARM PINCH ROLLER ASS'Y
7 GUIDE PIN
3 SUB DECK HOLE
4 BUSH
5 BUSH
B
C
1
ARM
REVIEW
ASS'Y
2
ARM PINCH
ROLLER ASS'Y
Fig . A Fig . B
3-7-1 Disassembly
1. Turn the Arm Review Ass’y 1 in the direction of
arrow “B” and lift it to remove. (Fig. A)
2. Lift the Spring Arm Review Ass’y 1 from the
Sub Deck Hole 3 .
3. Push the Arm Pinch Roller Ass’y 2 (arrow “C”)
and lift it to remove.
3-7-2 Reassembly
1. Insert the Arm Pinch Roller Ass’y 2 into the
Bush 4 and then push it in the reverse direction
of arrow “C”.
2. Insert the Arm Review Ass’y 1 into the Bush 5
and push it (reverse of arrow “B”).
Note : When disassembling or assembling,
do not deform the parts.
Do not stain the roller or poles.
